Echo SRM-1501 - String Trimmer, S/N:0039001 - 0083386 Engine, Crankcase, Fan Housing, Cover Ricambi

Engine, Crankcase, Fan Housing, Cover SRM-1501 - Echo String Trimmer, S/N:0039001 - 0083386

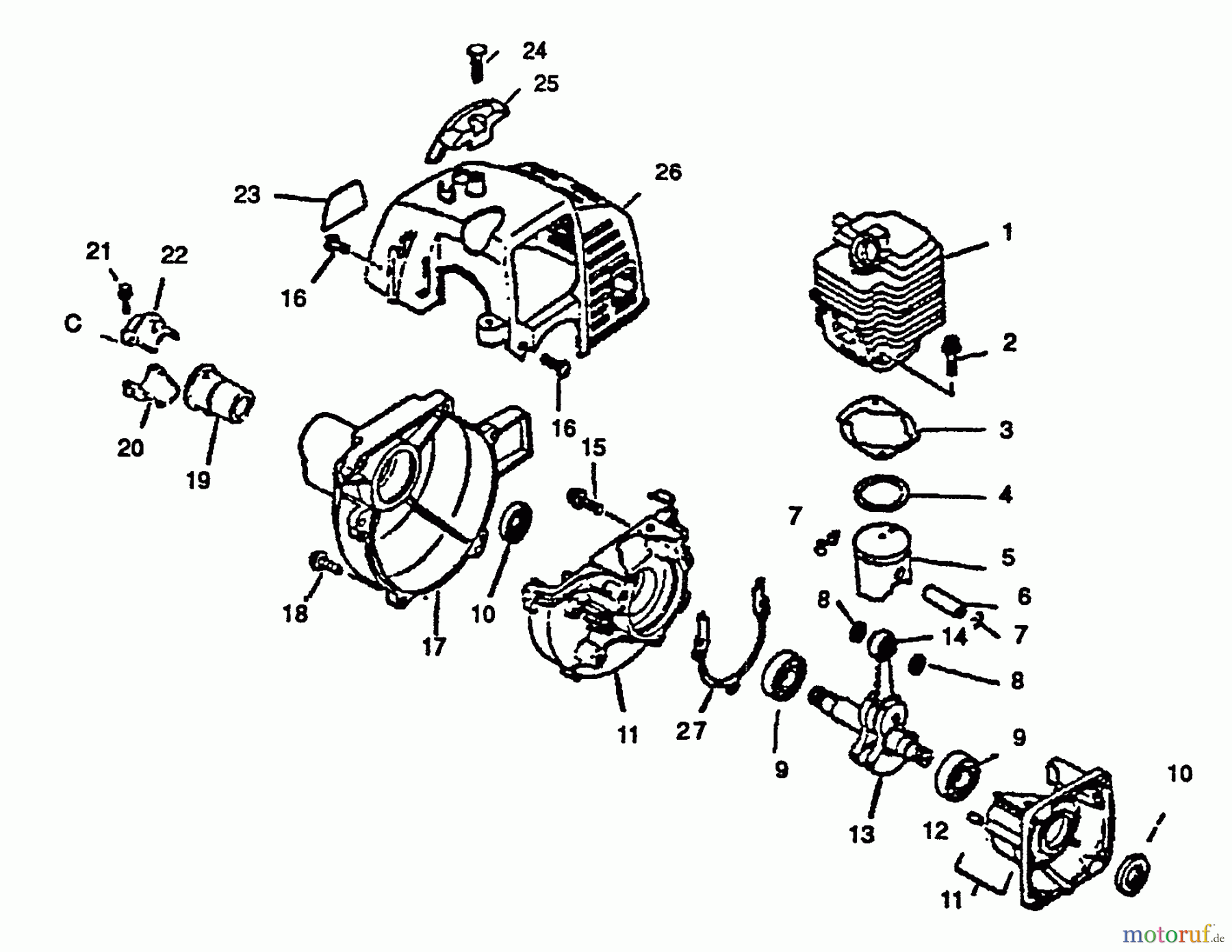

Echo Trimmer, Faden / Bürste SRM-1501 - Echo String Trimmer, S/N:0039001 - 0083386 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
1 16-101011-45230Zylinder SRM 2010 ES-1000 /HC-
2 16-900162-05022Schraube CS-3500,-3501,SRM-
3 1616
4 16-A101-000000Kolbenring GT-2150, EDR-2100
5 16-100000-44331Kolben kpl. SRM 2010/WP1000
6 16-100013-11520Kolbenbolzen SHR-170SI/T-226
7 16-100015-04630Sicherungsring(Eisen) CS-2600/
8 16-100014-11520Distanzring(Eisen) SHR-170Si/
9 16-94035-36201Kugellager EA-410/SHR-170SI
10 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
11 16-100204-51030Kurbelgehäuse ES-2000
12 16-V622-000020Stift
13 16-100100-44731Kurbelwelle
14 16-100012-51230Nadellager
15 16-900238-05028Schraube
16 16-900238-04012Schraube 4x12
17 1610153548930
18 16-900238-04016Schraube 4x16
19 16-610910-27832Gummilager SRM 2450
20 16-610923-27432Halter
21 16-900142-05025Schraube HCA-2400, PAS-2400,
22 16-610922-27432Halter HCA-2410
23 1689011248930
24 16-900238-05016Schraube 5*16
25 16-159912-44530Zylinderschutz PPF-2100, PPT-
26 16-101514-48731Zyl.-Abdeckung
27 1616
