Echo PAS-2000 - Power Unit, S/N: 001001 & Up (Type 1E) Upper Driveshaft, Coupler, Handles, Throttle Ricambi

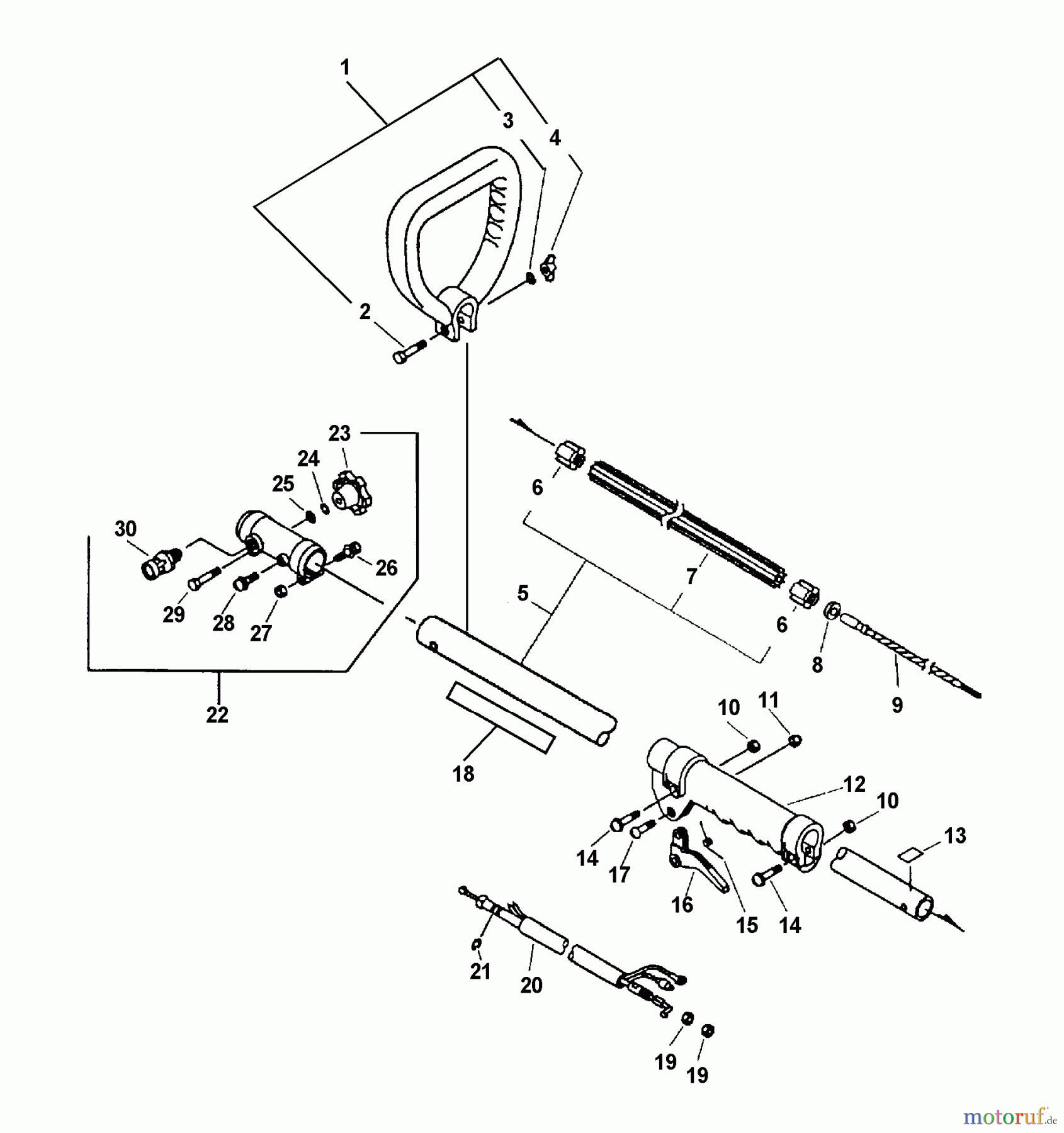

Upper Driveshaft, Coupler, Handles, Throttle PAS-2000 - Echo Power Unit, S/N: 001001 & Up (Type 1E)

Echo Trimmer, Faden / Bürste PAS-2000 - Echo Power Unit, S/N: 001001 & Up (Type 1E) Upper Driveshaft, Coupler, Handles, Throttle
PosizioneArticolo numeroDescrizione
1 1635160044330
2 1690001708048
3 1690003500008
4 16-900033-00008Flügelmutter 1/4-20 GT-220ES
5 1661020656630
6 1661024655330
7 1699999999999
8 16-100251-56630Gummipuffer HC-30ES
9 16-610013-55630obere Welle SRM 2100SB
10 16-900500-00005Mutter PPT-300ES/T-226 EDR-
11 16-900560-00005Mutter M5, selbstsichernd (10)
12 1635121344330
13 16-890152-04930Aufkleber
14 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
15 16-178043-06930Feder RM-310, SRM-200AE, SRM-
16 16-C450-000070Feder, Gasgriff CS-2600
17 16-178110-05330Schraube
18 1689022809560
19 16-900502-00006Mutter SRMF-340 6 (3N)
20 16-178001-44430Gaszug GT-2400/HCA-2400/SRM-
21 16-900700-00004E-Ring, PB-6000 bis S.-Nr.:
22 1661060156631
23 16-V299-000100Gasfeststellknopf SRM-2100SB
24 16-900605-00005Scheibe PB-250/EC-7600
25 16-900600-00005Scheibe PB-500/452GS/DH2200ST
26 16-900142-05030Schraube 5x30 mit Scheibe und
27 16-900500-00005Mutter PPT-300ES/T-226 EDR-
28 16-900242-05012Schraube
29 16-900100-05035Schraube
30 16-178302-56630Einrastknopf SRM-2100SB
