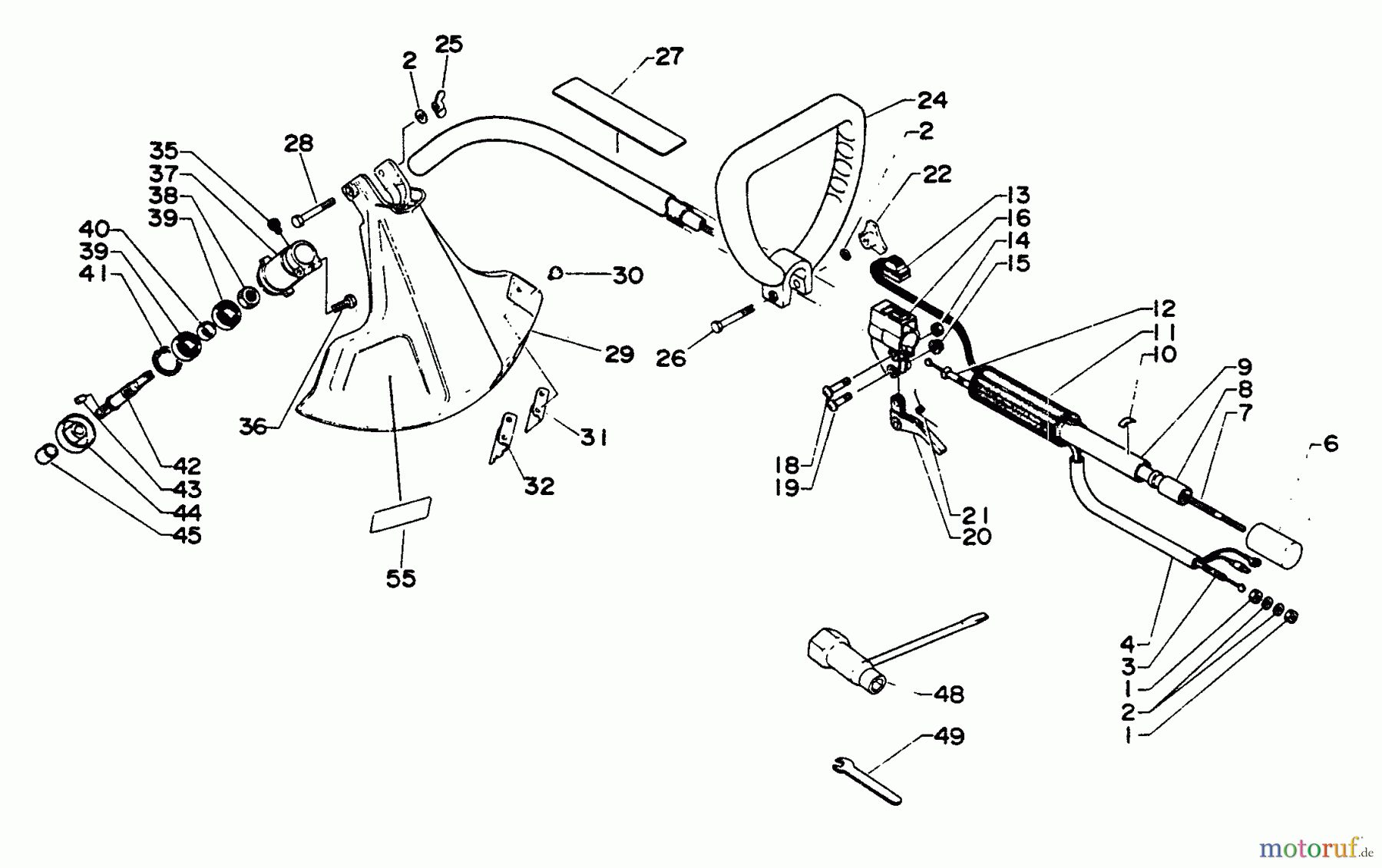

Echo GT-200CE - String Trimmer Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools Ricambi

Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools GT-200CE - Echo String Trimmer

Echo Trimmer, Faden / Bürste GT-200CE - Echo String Trimmer Driveshaft, Handles, Throttle, Stop Switch, Shield, Gear Case, Tools
PosizioneArticolo numeroDescrizione
1 16-900502-00006Mutter SRMF-340 6 (3N)
2 16-900600-00006Scheibe
3 1699999999999
4 16-178127-24030Tülle
7 16-C506-000030Biegsame Welle GT-2010
8 16-610217-09630Führung GT-2010 Produktion
9 1661060944330
10 16-890152-04930Aufkleber
11 1635111144530
12 16-178048-05630Halterung RM-310, SRM-200AE,
13 16-163400-09630Stop-Schalter SRM-200BE
14 16-900500-00005Mutter PPT-300ES/T-226 EDR-
15 16-900560-00005Mutter M5, selbstsichernd (10)
16 16-178024-09630Halterung GT-2010
18 16-900240-05028Schraube
19 16-178110-05330Schraube
20 16-178010-05631Gashebel
21 16-178043-06930Feder RM-310, SRM-200AE, SRM-
24 16-351600-09630Zsb. Handgriff
22 16-900525-00006Flügelmutter 6 (10)
26 16-900100-06040Schraube
27 1689016026632
29 1669900440630
25 16-900525-00006Flügelmutter 6 (10)
28 1690010006050
30 16-900242-05016Schraube
31 16-P021-006080Fadenabschneider kpl. GT-2150
32 16-699212-23230Schutz GT-2010
1661040452430
35 16-900242-04010Schraube EA-410
36 16-900152-05025Schraube 5x25 (10)
37 1661041009630
38 16-900513-00012Mutter
39 16-94042-06001Kugellager PPT-2100/-2400/-
40 16-610315-06530Hülse
41 16-900702-00028Seegerring, innen, 28mm
42 1661031009630
43 16-900305-30006Splint
44 1661031309630
48 1689541009460
49 16-895015-26630Dorn
55 1689013840630
45 16~N/A
6 16~N/A
