Echo CLS-5000 - Clearing Saw Carburetor Ricambi

• Start
• Echo
• Trimmer, Faden / Bürste
• CLS-5000 - Echo Clearing Saw
• Carburetor

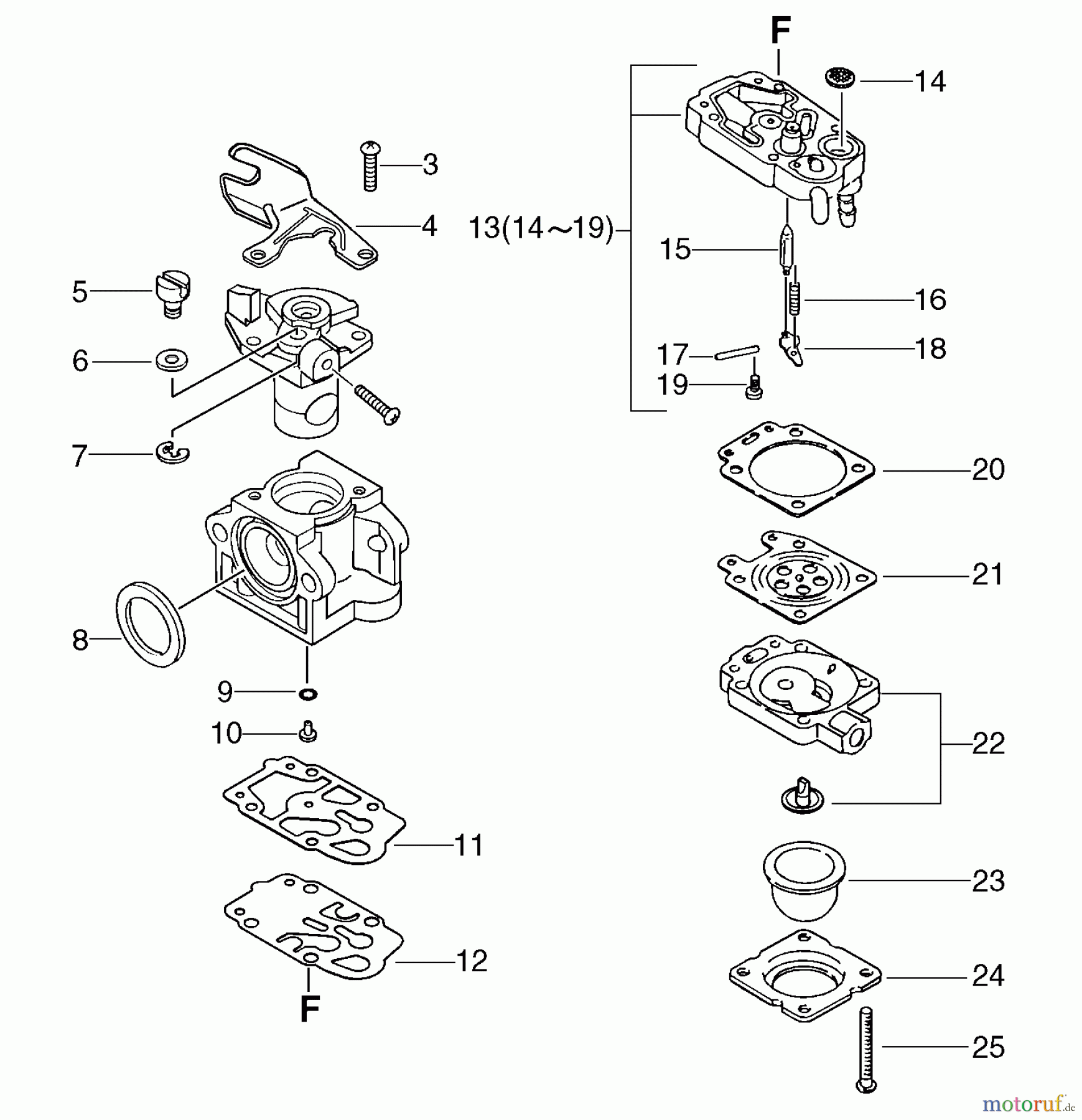

Carburetor CLS-5000 - Echo Clearing Saw

Posizione		Articolo numero	Descrizione
		16A021000591
3		16-123114-40630	Schraube, Vergaser PB-260L/-
4		16-P003-000180	Halter, Gaszug, Vergaser PB-
5		16-123172-45130	Führung, Gaszug DH2200ST/EA-
6		16-123149-54230	Scheibe PB-650/RM-4000/SRM-
7		16-123173-07930	Clip DH2200ST/EA-410/PPT-300ES
8		16-123143-12110	Dichtring PPT-300ES
9		16-123183-05960	O-Ring EDR-2400, CSG-6700
10		16-P003-000530	Ventil RM-4000 ab S-Nr.:001411
11		16-123125-40630	Dichtung PB-655
12		16-123112-40630	Membrane, Pumpenseite PB-500/
13		16-P003-000510	Pumpengehäuse, Vergaser RM-
14		16-123126-10631	Sieb, Vergaser, Einlass PPT-
15		16-123137-19830	Einlassventil CS-2600/3700/
16		16-123122-05560	Feder, Ventilarm, Vergaser
17		16-123138-03930	Stift, Ventilhalter, Vergaser
18		16-123123-38330	Ventilhebel CS-3700/4200/
19		16-123139-05560	Schraube, Vergaser, Ventilarm
20		16-123140-05560	Dichtung, Steuerseite PPT-
21		16-P003-000090	Membrane, Pumpenseite PB-260L,
22		16-123180-05560	Grundplatte EDR-2400/SRM-2655/
23		16-123181-40630	Pumpe, Primer DH2200ST/PB-500/
24		16-123142-05560	Deckel, Primerpumpe DH2200ST/
25		16-123110-05560	Schraube, Pumpengehäuse
