Echo CLS-4610 - Clearing Saw Muffler, Fuel Tank Ricambi

• Start
• Echo
• Trimmer, Faden / Bürste
• CLS-4610 - Echo Clearing Saw
• Muffler, Fuel Tank

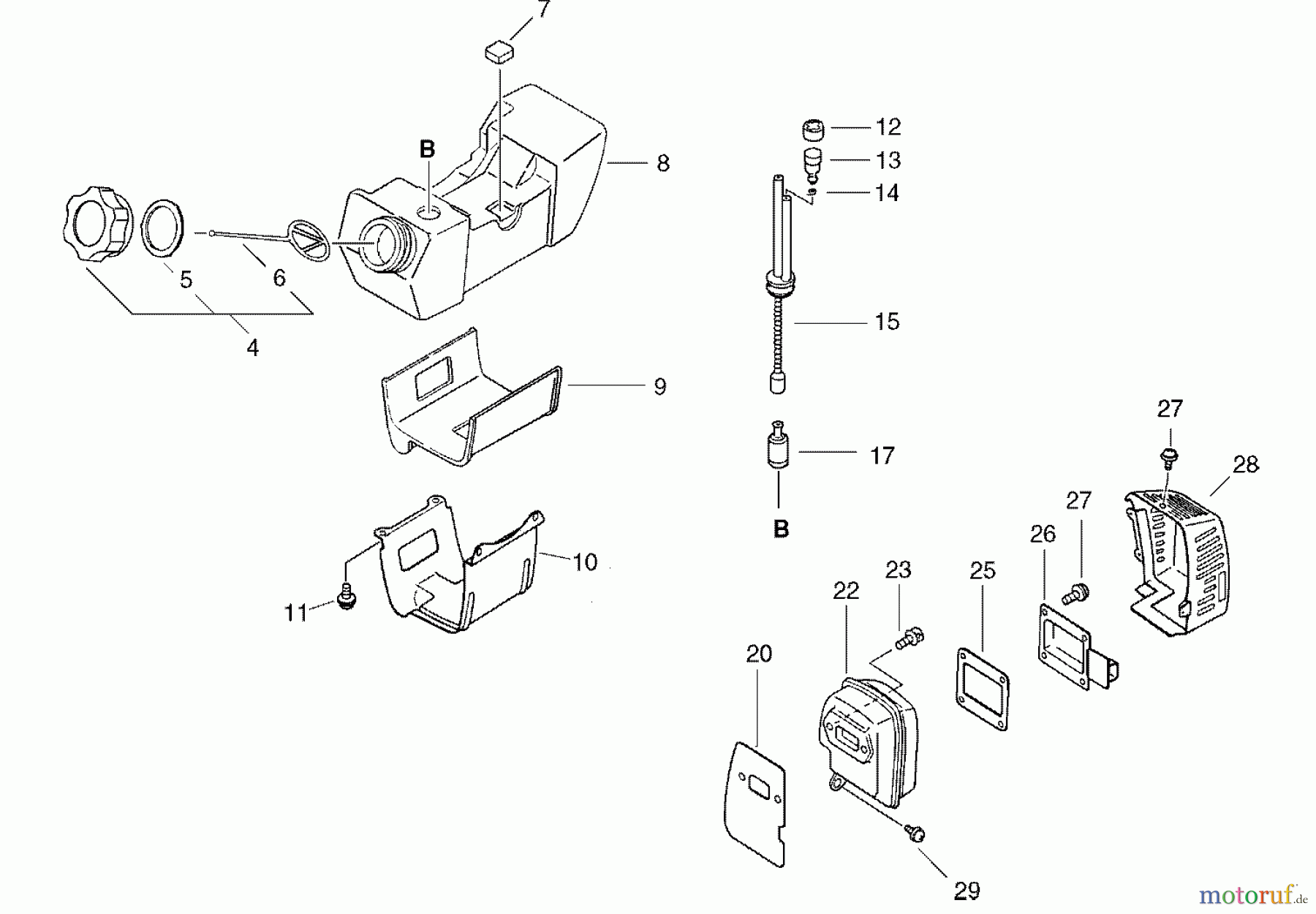

Muffler, Fuel Tank CLS-4610 - Echo Clearing Saw

Posizione		Articolo numero	Descrizione
4		16-131004-08960	Tankdeckel(Kunstst.) HC-1500/
5		16-131016-55830	Dichtung Tankdeckel SRM-320/
6		16-131051-52430	Sicherung
7		16-131923-11120	Puffer CLS-4610, SRM-3800,
8		16-131010-46931	Benzintank CLS-4601, SRM-3800,
9		16-131924-43130	Gummiauflage für Tankhalterung
10		16-131910-43130	Tankhalterung CLS-4610, SRM-
11		16-900238-05014	Schraube 5x14
12		16-131328-40630	Entlüftungsventilsitz CS-3700,
13		16-131300-56431	Entlüftungsventil CS-3500-1/
14		16-V490-001230	Clip CS-3500/2600/350TES,
15		16-132010-43130	Benzinleitung(Gummi) CLS-4610,
17		16-131205-19831	Benzinfilter DH2200ST/CS-600/
20		16-145510-42231	Auspuffdichtung CLS-4610, RM-
22		16-145610-47530	Auspuff SRM-4600
23		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
25		16-145866-43131	Dichtung CLS-4610, SRM-3800/
26		16-145867-47530	Auspuffblende SRM-4600
27		16-900238-04010	Schraube M4 x 10 ES-2400,PB-
28		16A320000890
29		16-900238-05014	Schraube 5x14
