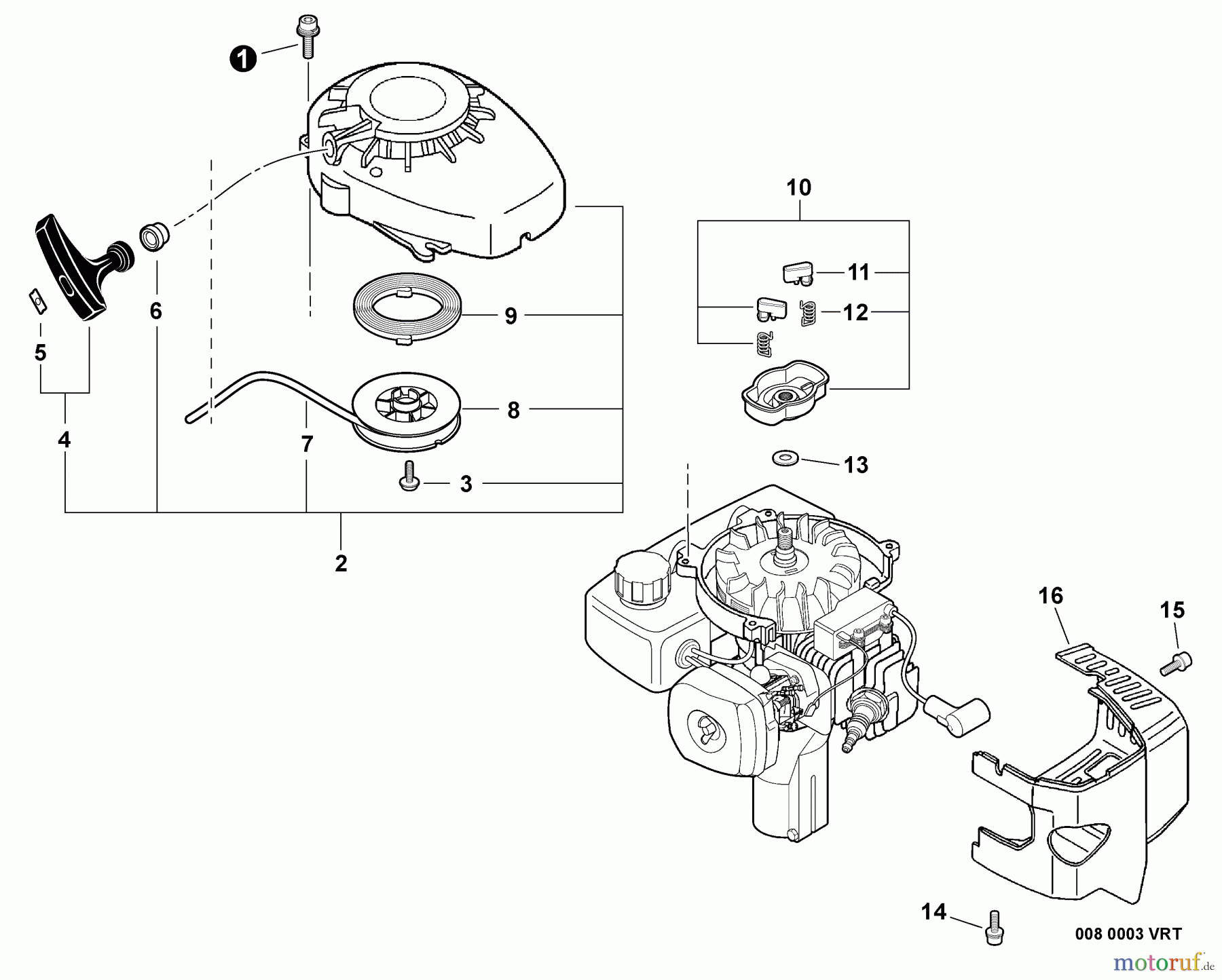

Echo TC-210 - Tiller/Cultivator, S/N: E13912001001 - E13912999999 Engine Cover, Starter Ricambi

Engine Cover, Starter TC-210 - Echo Tiller/Cultivator, S/N: E13912001001 - E13912999999

Echo Motorhacken / Kultivierer TC-210 - Echo Tiller/Cultivator, S/N: E13912001001 - E13912999999 Engine Cover, Starter
PosizioneArticolo numeroDescrizione
1 16-900238-04016Schraube 4x16
2 1617720011861
3 16-177236-44330Schraube CS-2600/ SRM-320/350/
4 16-177228-11120Startergriff SRM-3805/4600,
5 16-177246-11120Abdeckung, Starter Knopf CS-
6 16-177227-42030Seilführung ES-2100/2400/HC-
7 16-177226-05530Starterseil
8 16-177215-44430Seilscheibe SRM-2305/ES-2100/
9 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
10 16-177202-12220Starterklinke GT-2400, HC-1500
11 16-177218-44330Starterklinke SRM-2450/PB-
12 16-177234-12220Feder, Starterklinke RM-4000/
13 16-900605-00008Scheibe
14 16-900238-04018Schraube
15 16-91107-04008Schraube HCR-1510
16 16A160001120
