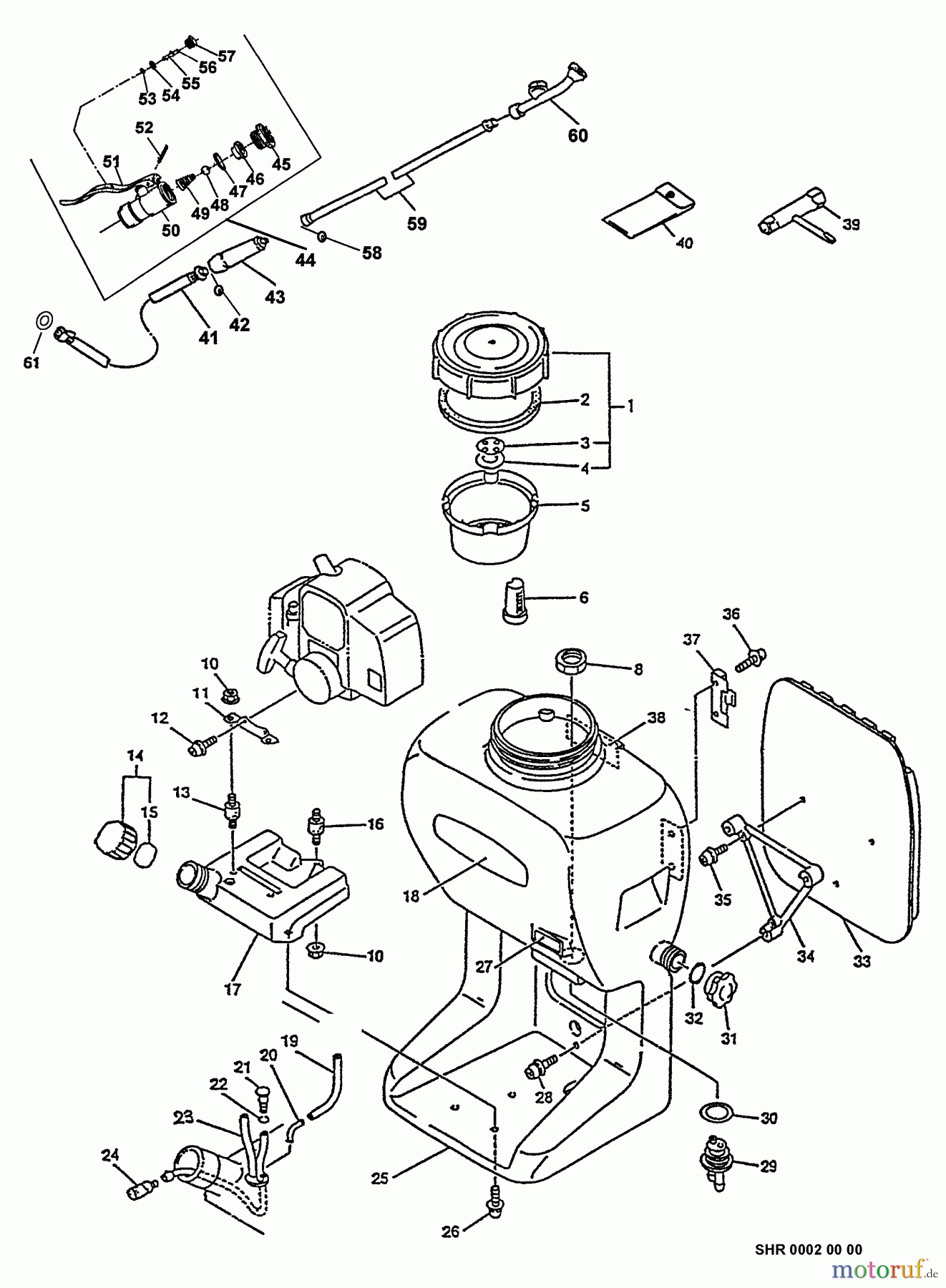

Echo SHR-2100 - Power Sprayer Tank Assy, Fuel Sys, Frame Assy, Hose And Wand Assy, Tools Ricambi

Tank Assy, Fuel Sys, Frame Assy, Hose And Wand Assy, Tools SHR-2100 - Echo Power Sprayer

Echo Pflanzenschutzspritzen SHR-2100 - Echo Power Sprayer Tank Assy, Fuel Sys, Frame Assy, Hose And Wand Assy, Tools

Posizione	Articolo numero	Descrizione
1	16-250001-11310	Tankdeckel - Chemietank SHR-
2	16-250011-01110	Dichtung PBAM-300, SHR-150SI/-
3	16-250026-11310	Ventil, Entlüftung SHR-4100/-
4	16-250027-11310	Dichtung, Entlüftung SHR-4100/
5	16-254210-12210	Filter, Spritzmitteltank SHR-
6	16-356111-10510	Filter SHR-4100
8	16-357015-12710	Mutter SHR-4100
10	16-900518-00006	Mutter 6 HC-40ES, SHR-150SI/-
11	16-104925-11610	Tankhalter SHR-4100
12	16-900242-05010	Schraube PPT-300ES
13	16-104910-11410	Puffer
14	16-131004-55830	Tankdeckel HC-1500, HC-2400,
15	16-131016-40930	Dichtung ES-2000, HC-2100,
16	16-104910-11610	Puffer
17	16-131005-12711	Tank, Benzin SHR-4100
18	16-X502-000470	Aufkleber
19	1612902821330
20	16-132021-40630	Leitung(Gummi)
21	16-131300-56430	Entlüftungsventil CS-3500-1/
22	16-130111-00530	Klipp (10) CS-6702, SRM-2010
23	1613201013210
24	16-131205-07321	Benzinfilter CS-3500/2600,SRM-
25	16-253006-12710	Spritzmitteltank SHR-4100
26	16-900242-06014	Schraube 6x14
27	1689011213210
28	16-900242-05016	Schraube
29	16-357010-12710	Schlauchanschluss SHR-4100
30	1635701413210
31	1625021113210
32	16-900720-30028	O-Ring P-28 SHR-4100/-170SI
33	16-300105-13210	Rückenkissen SHr-4100
34	16-300333-12710	Halterung, Rückenkissen SHR-
35	16-900242-05014	Schraube(Eisen) CS-3500, SRM
36	16-900242-06020	Schraube
37	16-224915-12711	Halter, Tank SHR-4100
38	1689016013210
39	16-895410-39131	Kombischlüssel PB-500/PPT-
40	16-898510-39130	Werkzeugtasche
41	16-384002-12710	Sprühschlauch 7,5x1200, mit
42	1699999999999
43	1622411012710
44	1622440013710
45	1638403410610
46	1622442510610
47	1638201410610
48	1690073205016
49	1622442310610
50	1622449010610
51	1622441010610
52	1690034030016
53	1622443210610
54	1690070300002
55	1622443110610
56	1690062000003
57	16-900720-00003	O-Ring(Gummi)
58	1622412221050
59	16-E270-000030	Sprührohr SHR-4100,SHR-4100
60	1622420310610
61	16-386019-10510	Dichtung SHR-4100/-170SI
