Echo SHR-2100 - Power Sprayer Exhaust, Ignition, Intake, Starter Ricambi

Exhaust, Ignition, Intake, Starter SHR-2100 - Echo Power Sprayer

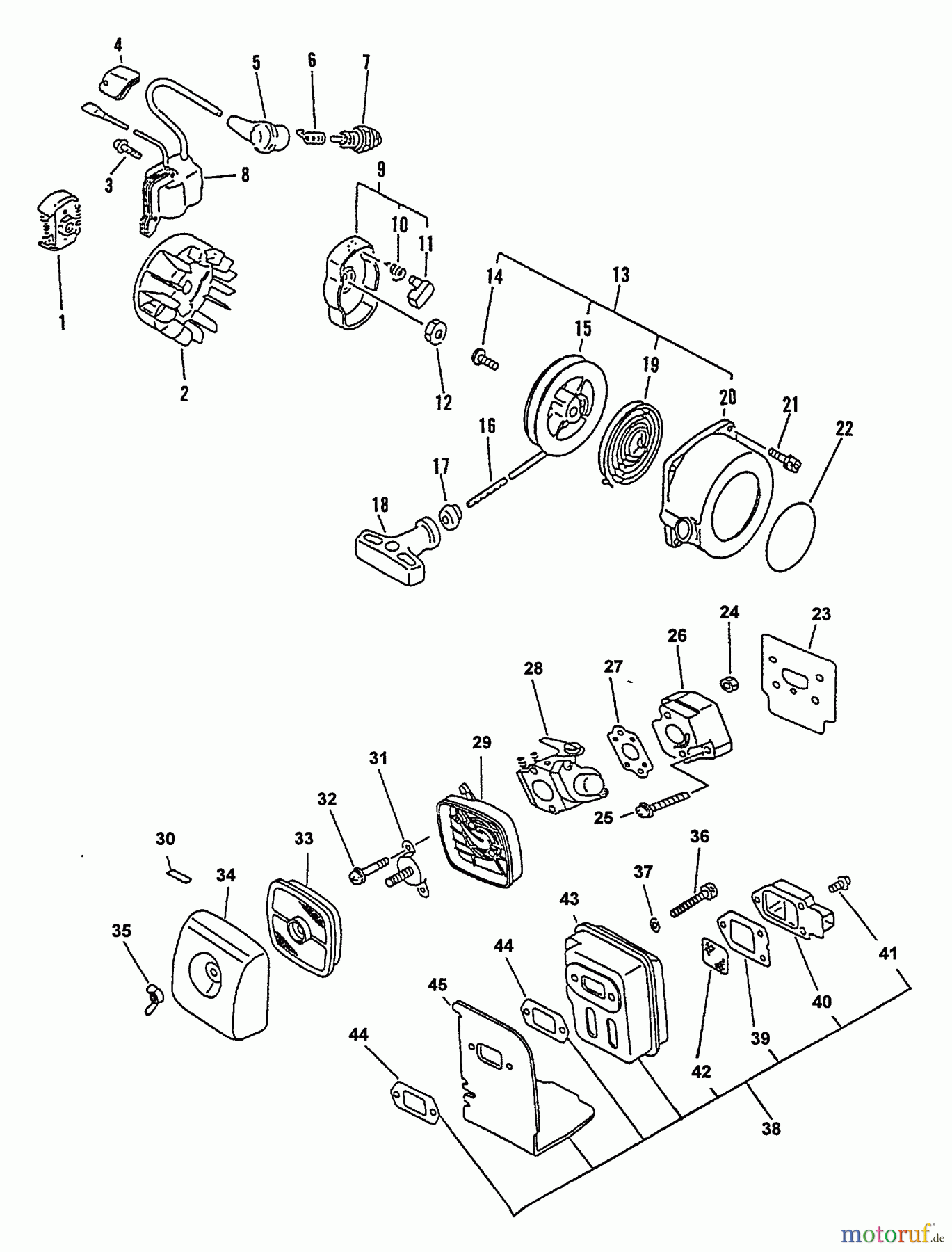

Echo Pflanzenschutzspritzen SHR-2100 - Echo Power Sprayer Exhaust, Ignition, Intake, Starter
PosizioneArticolo numeroDescrizione
1 16-175000-11612ZSB.Kupplung
2 16-156801-44731Polrad, Schwungmagetzünd. ES-
3 16-900162-04020Schraube SHR-170SI, T-226
4 16-150112-42030Tülle
5 16-159012-01620Zündkerzenkappe SRM-2010, CS-
6 16-159011-03432Kontaktfeder CS-2600/4200/PB-
7 1699944500072
8 16-156601-11911Elektronik-Modul SHR-4100
9 16-177202-44331Starterklinke ES-1000 ab Ser.-
10 16-177234-12220Feder, Starterklinke RM-4000/
11 16-177218-44330Starterklinke SRM-2450/PB-
12 16-900502-00008Mutter EA-410
13 16-177200-42033Starter kpl. ES-2000/2100/
14 16-177236-44330Schraube CS-2600/ SRM-320/350/
15 16-177215-44430Seilscheibe SRM-2305/ES-2100/
16 1616
17 16-177227-42030Seilführung ES-2100/2400/HC-
18 16-177228-06530Startergriff ES-2100/2400/HC-
19 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
20 16-177232-42032Startergehäuse GT-2010 SRM-
21 16X502000320
22 16-900238-04016Schraube 4x16
23 16-V103-001360Dichtung, Ansaugleitung SHR-
24 16-900500-00005Mutter PPT-300ES/T-226 EDR-
25 16-900238-05020Schraube 5x20
26 16-130017-42031Zwischenflansch HC-2400, SRM-
27 16-130016-42031Dichtung(Papier)
28 1612520013211
29 16-P021-002921Luftfiltergehäuse grau HC-
30 16-890121-06360Aufkleber CHOKE
31 16-129011-12620Halterung
32 16-900242-05065Schraube
33 16-A226-001410Luftfilter mit Gummirand HC-
34 16-130302-06561Luftfilterdeckel HC-1600
35 16-900528-00005Flügelmutter
36 16-900105-05055Schraube EA-410/SHR-170SI/T-
37 16-900600-00005Scheibe PB-500/452GS/DH2200ST
38 16-145806-42030Auspuff HCA-2410
39 16-145866-42031Dichtung HC-2410/SRM-250/GT-
40 16-145809-42030Halter
41 16-900242-04010Schraube EA-410
42 16-145862-40630Funkenschutzsieb SHR-170SI/
43 16-145800-42031Auspuff kpl. HC 2100 HC-1600
44 16-V104-000160Dichtung, Auspuff PB-2400, GT-
45 16-145871-52130Auspuffschutz HC-2400
