Echo SHR-210 - Power Sprayer Fuel Tank, Spray Tank Ricambi

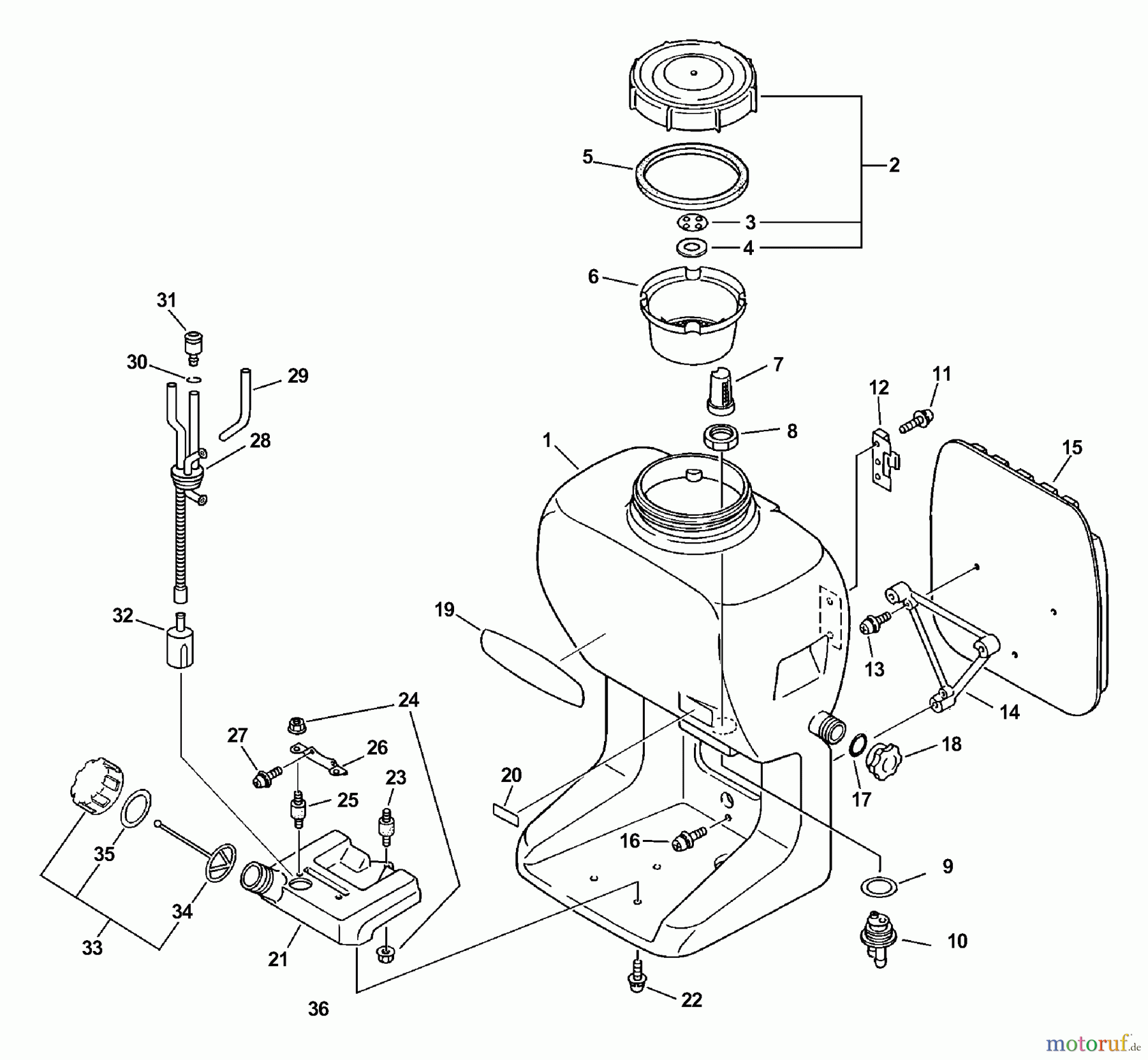

Fuel Tank, Spray Tank SHR-210 - Echo Power Sprayer

Posizione	Articolo numero	Descrizione
1	16-253006-12710	Spritzmitteltank SHR-4100
2	16-250001-11310	Tankdeckel - Chemietank SHR-
3	16-250026-11310	Ventil, Entlüftung SHR-4100/-
4	16-250027-11310	Dichtung, Entlüftung SHR-4100/
5	16-250011-01110	Dichtung PBAM-300, SHR-150SI/-
6	16-254210-12210	Filter, Spritzmitteltank SHR-
7	16-356111-10510	Filter SHR-4100
8	16-357015-12710	Mutter SHR-4100
9	1635701413210
10	16-357010-12710	Schlauchanschluss SHR-4100
11	16-900242-06020	Schraube
12	16-224915-12711	Halter, Tank SHR-4100
13	16-900242-05016	Schraube
14	16-300333-12710	Halterung, Rückenkissen SHR-
15	16-300105-13210	Rückenkissen SHr-4100
16	16-900242-05016	Schraube
17	16-900720-30028	O-Ring P-28 SHR-4100/-170SI
18	1625021113210
19	16-X502-000470	Aufkleber
20	16X503003660
21	16-131005-12711	Tank, Benzin SHR-4100
22	16-900242-06014	Schraube 6x14
23	16-104910-11610	Puffer
24	16-900518-00006	Mutter 6 HC-40ES, SHR-150SI/-
25	16-104910-11410	Puffer
26	16-104925-11610	Tankhalter SHR-4100
27	16-900242-05010	Schraube PPT-300ES
28	1613201013210
29	16-132010-14010	Benzinleitung, Gummi 3x6x100
30	16-130111-00530	Klipp (10) CS-6702, SRM-2010
31	16-A356-000031	Ventil Tankbelüftung PAS-2400/
32	16-131205-07321	Benzinfilter CS-3500/2600,SRM-
33	16-131004-55530	Tankdeckel, komplett EA-410/
34	16-131051-56030	Sicherung, Tankdeckel EA-410/
35	16-131016-55830	Dichtung Tankdeckel SRM-320/
