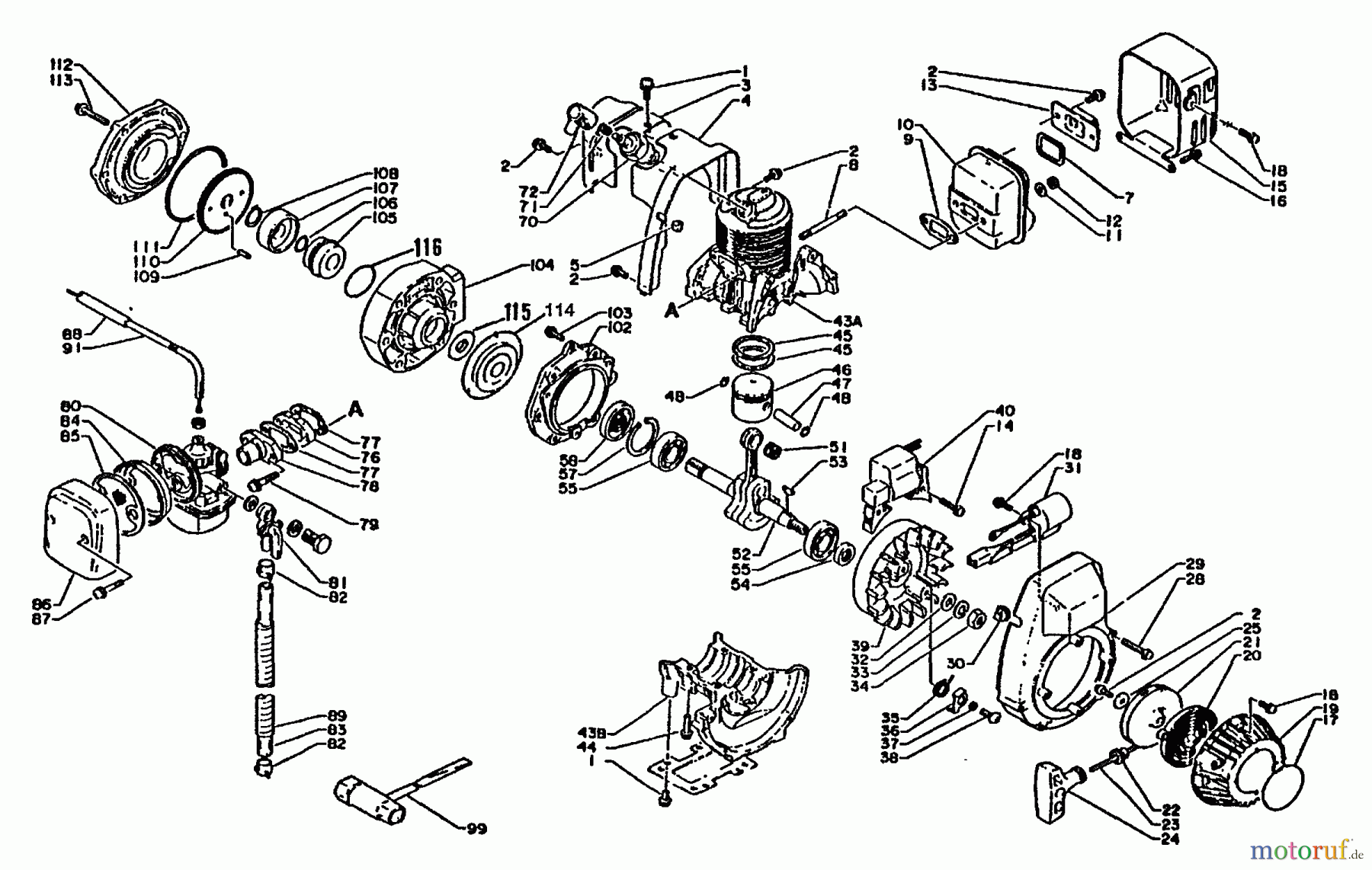

Echo SHR-200E - Power Sprayer Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition Ricambi

Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition SHR-200E - Echo Power Sprayer

Echo Pflanzenschutzspritzen SHR-200E - Echo Power Sprayer Engine,Crankcase,Intake,Exhaust,Air Cleaner,Pump,Exhst,Strtr,Ignition

Posizione	Articolo numero	Descrizione
1	16-900242-05010	Schraube PPT-300ES
2	16-900242-04010	Schraube EA-410
3	1699999999999
4	1610151408020
5	16-152115-05530	Tülle PB-265ESL/-250
7	1614586608021
8	16-101014-00560	Stehbolzen-Auspuff
9	1614551008021
10	1614585808021
11	16-900603-00005	Scheibe(Eisen) CS-2600/PB-250/
12	16-900560-00005	Mutter M5, selbstsichernd (10)
13	1614580910510
14	16-900242-04020	Schraube
15	1614562110510
16	16-900242-04012	Schraube CS-2600
17	16-890112-26730	Aufkleber
18	16-900242-04014	Schraube 4x14(Eisen)
	1617720008020
19	1617720908020
20	16-177220-06530	Starterfeder PB-46LN, PB-6000
21	16-177215-04920	Seilscheibe SRM-200AE, SRM-
22	16-177227-05330	Seilführung CS-280EG/330EVL/
23	16-177226-06530	Starterseil CS-280EG/330EVL,
24	16-177228-06530	Startergriff ES-2100/2400/HC-
25	16-177214-04630	Scheibe CS-270/3000/3400/3500
28	16-900242-04040	Schraube
29	1610151110510
30	16-152112-05730	Buchse Produktion eingestellt
31	1615662608020
32	16-900600-00008	Scheibe
33	16-900605-00008	Scheibe
34	16-900500-00008	Mutter 8
35	1617723408020
36	16-177218-04920	Starterklinke
37	16-177247-04630	Hülse CS-3700
38	16-900216-05014	Schraube
39	1615680108021
40	1615660108020
43	1610020008022
43A	1610020008022
43B	1610020008022
44	16-900242-05030	Schraube
45	16-A101-000000	Kolbenring GT-2150, EDR-2100
46	1610001009030
47	16-100013-10210	Kolbenbolzen SRM-200AE, SRM-
48	16-100015-04630	Sicherungsring(Eisen) CS-2600/
51	1610001208020
52	1610010010511
53	16-100142-00310	Polradkeil
54	16-100212-04630	Simmerring
55	16-94035-36201	Kugellager EA-410/SHR-170SI
57	16-900702-00032	Seegerring, innen, 32mm
58	16-100212-03930	Simmerring 12x32x5.5 / PPT-
70	16-159010-00330	Zündkerze
71	16-159011-03432	Kontaktfeder CS-2600/4200/PB-
72	16-159012-01620	Zündkerzenkappe SRM-2010, CS-
76	1613001721230
77	1613001008421
78	1613051021230
79	16-900242-05025	Schraube CS-3500, HCA-2500,
80	1612000010512
81	16-132200-00512	Benzinhahn RM-380, RM-385
82	16-132013-14010	Klemme SHR-170SI
83	1613201010510
84	16-130314-05530	Luftfiltergehäuse
85	16-130310-05730	Luftfilter
86	16-130313-05530	Luftfilterdeckel
87	16-900242-04028	Schraube
88	1617812710510
89	1613201510510
91	1617800110510
99	16-895410-39131	Kombischlüssel PB-500/PPT-
102	1610028010510
103	16-900242-05016	Schraube
104	16-405210-10512	Pumpengehäuse
105	1640510011010
106	16-900724-30010	O-Ring SHR-150SI/-170SI
107	1640510310510
108	16-900704-00012	Seegerring 12 SHR-170SI
109	16-405113-10510	Stift (10) SHR-4100
110	16-405110-10512	Turbine SHR-4100/SHR-170SI
111	16-900724-30067	O-Ring SHR-4100/SHR-170SI
112	16-405211-10511	Pumpe SHR-4100
113	16-900242-05040	Schraube(Eisen)
114	1610027110510
115	16-405114-10510	Platte SHR-4100/SHR-170SI
116	16-900724-00029	O-Ring SHR-170SI
