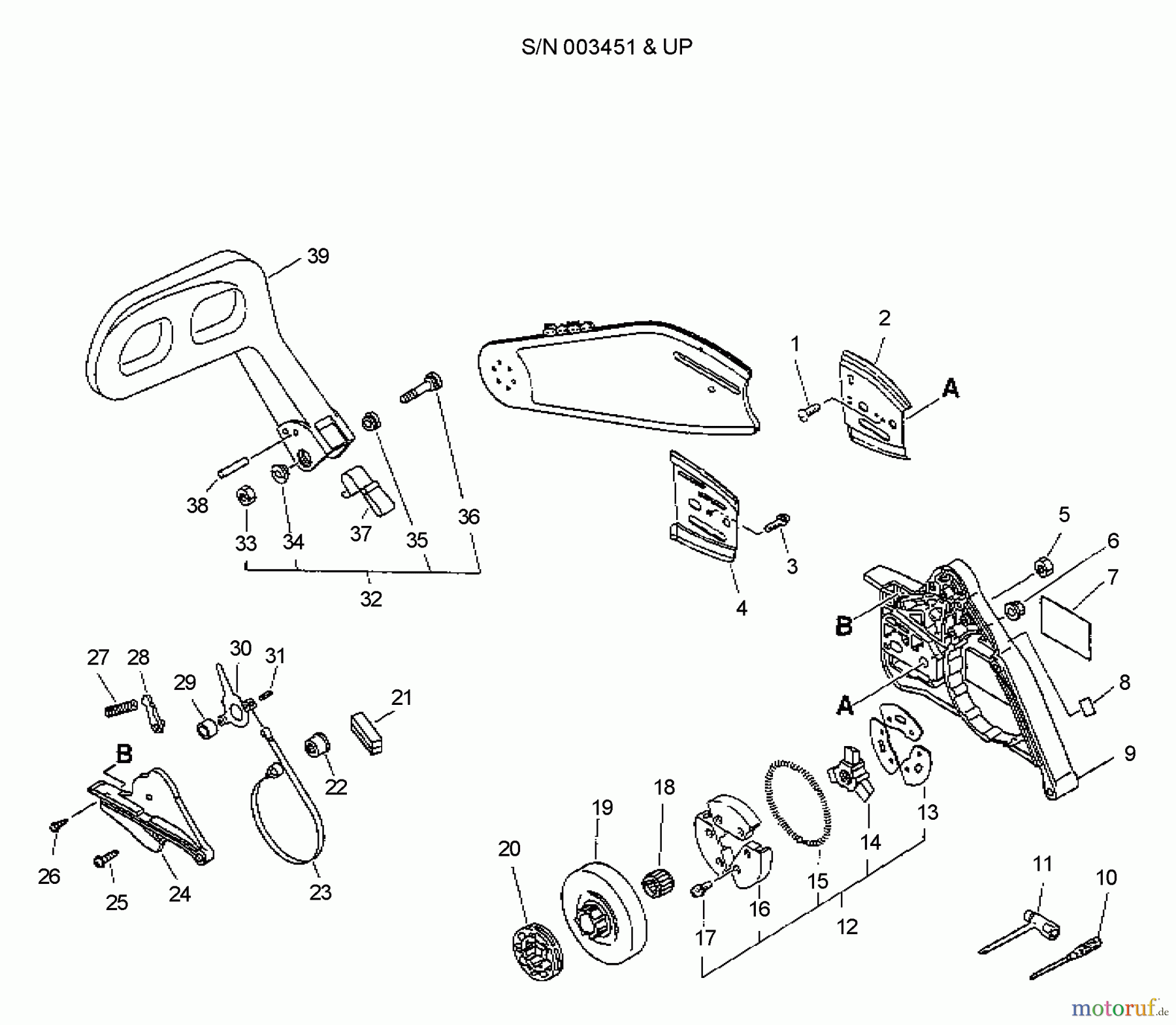

Echo QV-6700 - Quick Vent Chain Saw (Type 1 ) Clutch, Cutting Attachment, Chain Brake S/N: 003451_UP Ricambi

Clutch, Cutting Attachment, Chain Brake S/N: 003451_UP QV-6700 - Echo Quick Vent Chain Saw (Type 1 )

Echo Rettungssäge QV-6700 - Echo Quick Vent Chain Saw (Type 1 ) Clutch, Cutting Attachment, Chain Brake S/N: 003451_UP
PosizioneArticolo numeroDescrizione
1643320232632
1 16-900241-03006Schraube
2 1643301232631
3 16-900241-04008Schraube(Eisen)
4 1643301332631
5 16-900500-00003Mutter
6 16-V265-000200Mutter 452GS
7 16-890118-38130Aufkleber
8 16X524000680
9 16P021002291
10 16-895812-03930Schraubenzieher f.
11 16-895410-06960Kombischlüssel
12 16-175000-32432Kupplung Zsb. CS-6701
13 16-175019-16130Platte
14 16-175016-32430Kupplungsnabe
15 16-175018-32430Kupplungsfeder CS-6701/CSG-
16 16-175002-32431Kupplungsbacken
17 16-900105-04006Bolzen 4x6
18 16-175012-32430Nadellager
19 16-175105-32431Kupplungstrommel CS-6701, CS-
20 16682100
21 16-433312-32630Schutz CS-3450/5501/6702/8001
22 16-433142-35430Einsteller CS-3700/6702
23 16-433123-38131Bremsband CS-6701/6702
24 1643331038230
25 16-900220-03018Schraube 3x18
26 16-900252-04012Schraube 4 x 12 CS-6701, CS-
27 16-433122-38130Feder CS-5501/6701/6702/8001
28 16-433209-35430Stopper
29 16-433116-35430Hülse CS-2600
30 16-433208-35431Bremshebel CS-3700
31 16-900330-40088Bolzen 4x8,8 CS-3700
32 16-433113-37539Schraubensatz CS-6702
33 16-900560-00005Mutter M5, selbstsichernd (10)
34 16-433167-39130Scheibe CS-2600,3700
35 16-433167-39730Scheibe
36 16-900209-05035Schraube CS-6701, CS-6702
37 16-433114-38131Feder
38 16-900330-35260Bolzen PB-46LN
39 1643310533531
