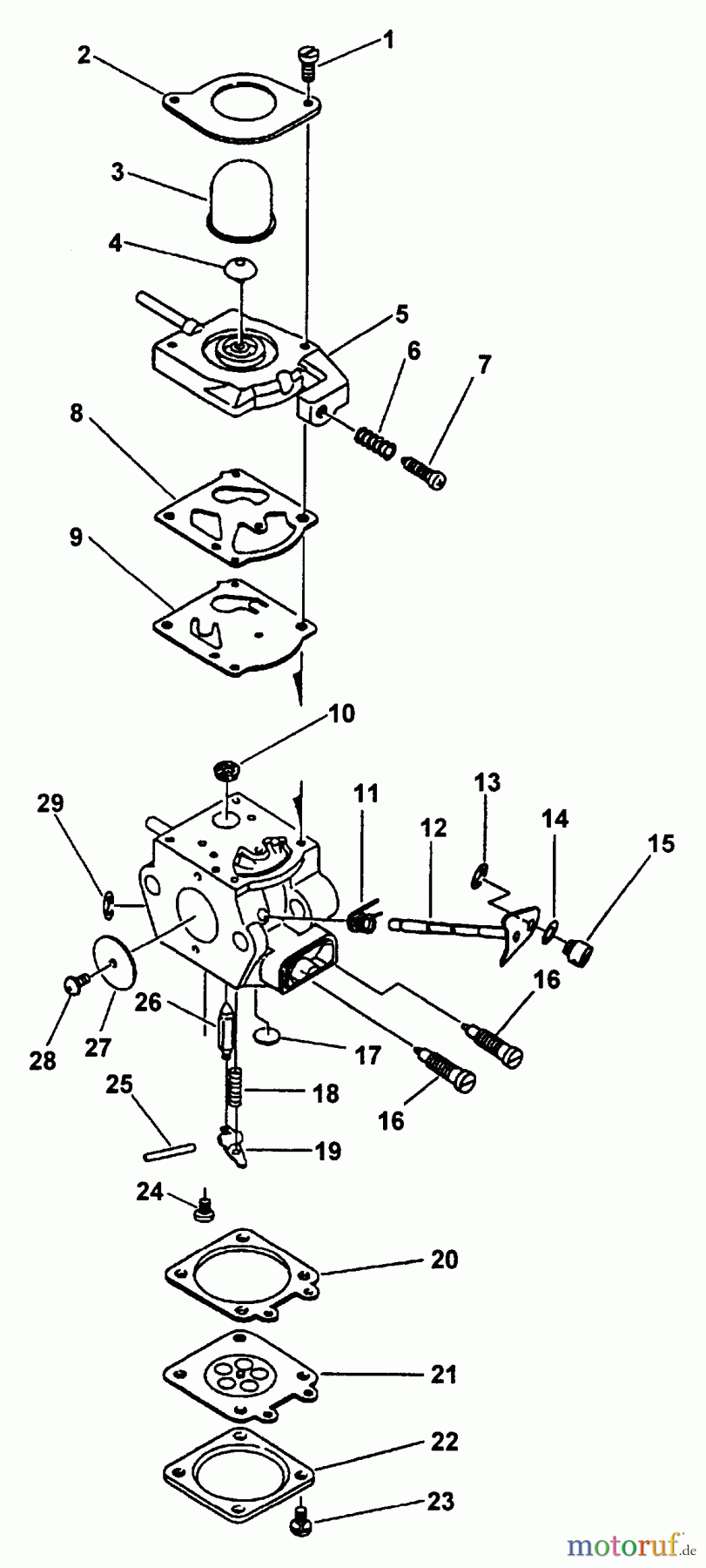

Carburetor S/N: 007864_Up, S/N: 001001_Up T1E PP-1400 - Echo Pole Saw / Pruner (Type 1)

Echo Hochentaster PP-1400 - Echo Pole Saw / Pruner (Type 1) Carburetor S/N: 007864_Up, S/N: 001001_Up T1E
PosizioneArticolo numeroDescrizione
16-123000-52132Vergaser HCA-2400 GT-2400 ,
1 16-123110-43130Schraube
2 16-123142-09560Deckel PPT-2400
3 16-123181-40630Pumpe, Primer DH2200ST/PB-500/
4 16-123171-35630Nippel HCA-2500, PB-24LN, PPT-
5 16-123124-43230Vergaserdeckel HCA-2400
6 16-123133-04260Feder CS-2600/3700/452GS/PB-
7 16-123134-04260Einstellschraube
8 1616
9 1616
10 1616
11 16-123113-52130Feder HCA-2400
12 16-123117-52130Gasgestänge HCA-2400, GT-2150
13 16-123173-07930Clip DH2200ST/EA-410/PPT-300ES
14 16-123149-26030Scheibe 452GS/CSG-6700/PB-500
15 16-123172-26030Führung, Gaszug CLS-4610, HCA-
16 16-123120-52131Einstellnadel HCA-2400 ab
17 1616
18 1616
19 1616
20 1616
21 1616
22 16-123142-03930Deckel CS-2600/3700/SRM-320/
23 1616
24 1616
25 1616
26 1616
27 16-123116-52130Drosselklappe HCA-2400
28 16-123114-03930Schraube
29 16-123127-15030Ring CS-2600/3700/6702/452GS/
16-123100-52130Vergaserrep-Satz Walbro WT-424
16-123101-52130Membransatz Walbro WT-424 PPT-
