Echo CS-680S - Chainsaw, Flywheel, Starter Ricambi

• Start
• Echo
• Sägen, Kettensägen
• CS-680S - Echo Chainsaw,
• Flywheel, Starter

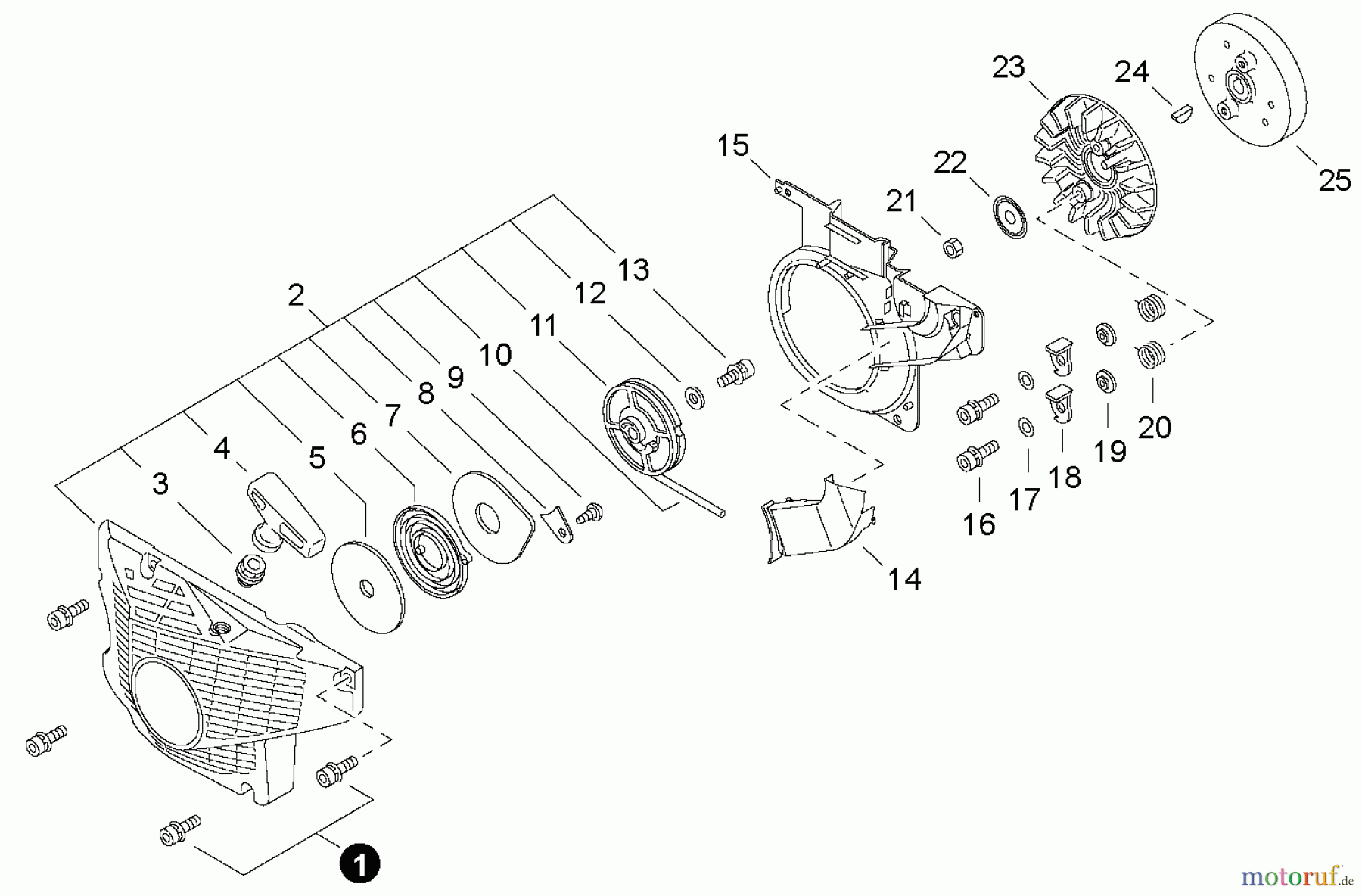

Flywheel, Starter CS-680S - Echo Chainsaw,

Posizione		Articolo numero	Descrizione
1		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
2		16-P021-002901	Starter, kpl. CS-6702
3		16-177227-07060	Seilführung CS-6702/8001, PB-
4		16-177228-30830	Startergriff
5		16-177221-02830	Platte
6		16-177220-02834	Starterfeder CS-8000/8001
7		16-177221-07060	Starterplatte CS-6701/6700,
8		16-433144-15130	Halteblech
9		16-900253-04008	Schraube(Eisen) M4x8
10		16-177226-07060	Starterseil CS-6702/8001, PB-
11		16-177215-32330	Seiltrommel
12		16-900603-00005	Scheibe(Eisen) CS-2600/PB-250/
13		16-900162-05014	Schraube M 5x14
14		16-A161-000020	Luftkanal CS-6702
15		16A172000850
16		16-V203-000150	Schraube
17		16-900603-00005	Scheibe(Eisen) CS-2600/PB-250/
18		16-177218-32631	Starterklinke CS-6701/6702,
19		16-V353-000192	Hülse CS-6702, CSG-680
20		16-177234-19832	Feder CS-680
21		16-900500-00008	Mutter 8
22		16-100143-19830	Scheibe PB-250
23		16-A171-000060	Lüfter, Kühlung
24		16-100142-30830	Polradkeil
25		16-156800-32631	Polrad CS-6701, CS-8000, CSG-
