Echo CS-60S - Chainsaw, S/N: 0059501 - 999999 Crankcase, Cover Ricambi

• Start
• Echo
• Sägen, Kettensägen
• CS-60S - Echo Chainsaw, S/N: 0059501 - 999999
• Crankcase, Cover

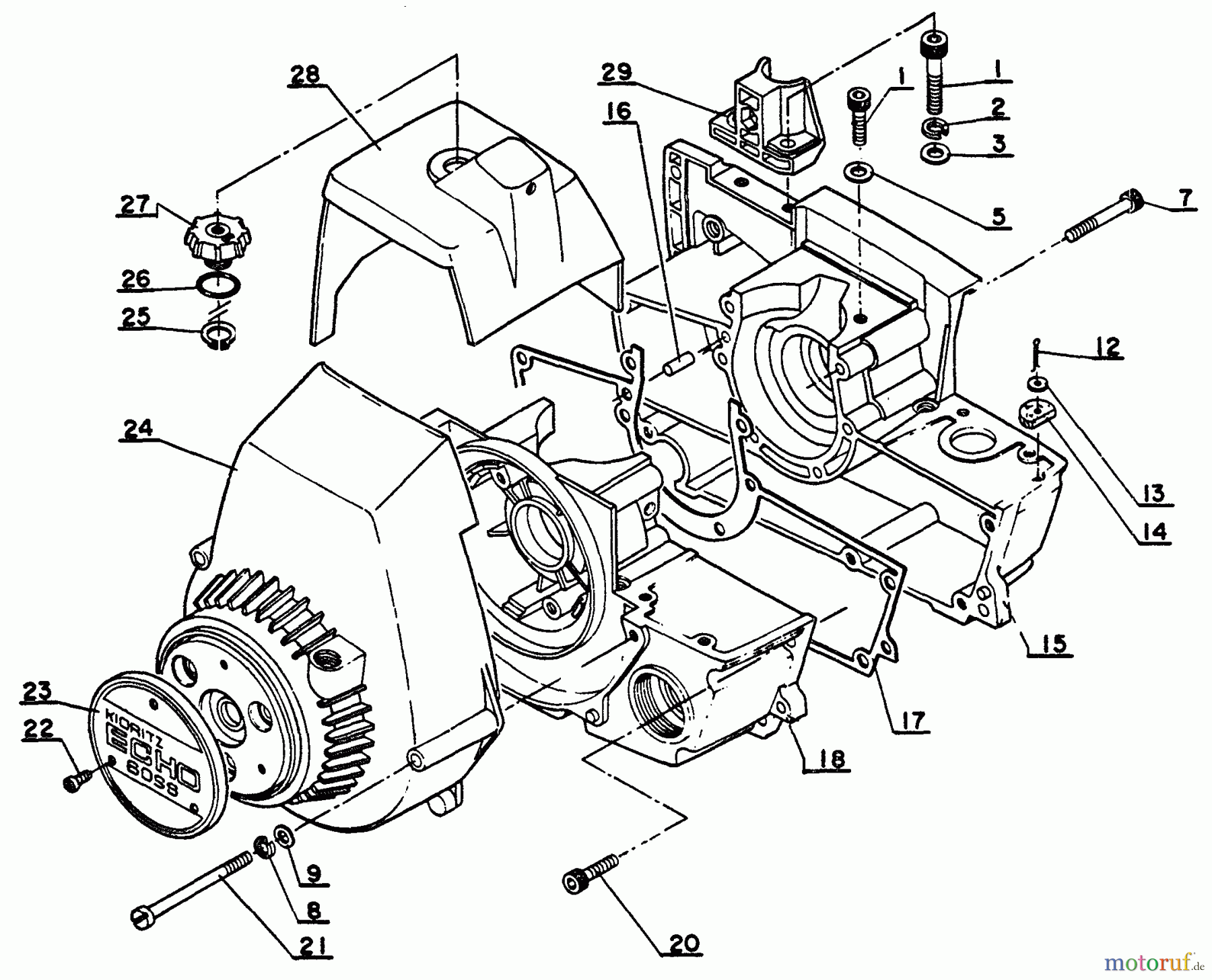

Crankcase, Cover CS-60S - Echo Chainsaw, S/N: 0059501 - 999999

Posizione		Articolo numero	Descrizione
1		16-900105-06025	Schraube 6 x 25 PB-500
2		16-900605-00006	Scheibe SHR-150SI/-170SI
3		16-900600-00006	Scheibe
5		16-433015-00230	Scheibe
7		16-900162-05035	Schraube CLS-5010/CS-5501/SRM-
8		16-900605-00005	Scheibe PB-250/EC-7600
9		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
12		16-900300-20015	Splint
13		16-900600-00002	Scheibe
14		16-131410-00330	Fettfilter
15		16-100204-00330	Kurbelgehäuse
18		16	16
16		16-100215-02830	Bolzen Produktion eingestellt
17		1610024200332
20		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
21		16-130021-00331	Bolzen
22		16-900220-03006	Schraube
23		16-890112-00331	Aufkleber
24		1699999999999
25		16-900701-00011	Seegerring außen 11mm
26		16-900720-00014	O-Ring CS-60S
27		16-130406-00330	Mutter
28		16-101514-00331	Zyl.-Abdeckung CS-60S
29		16-351217-00331	Griffstütze
