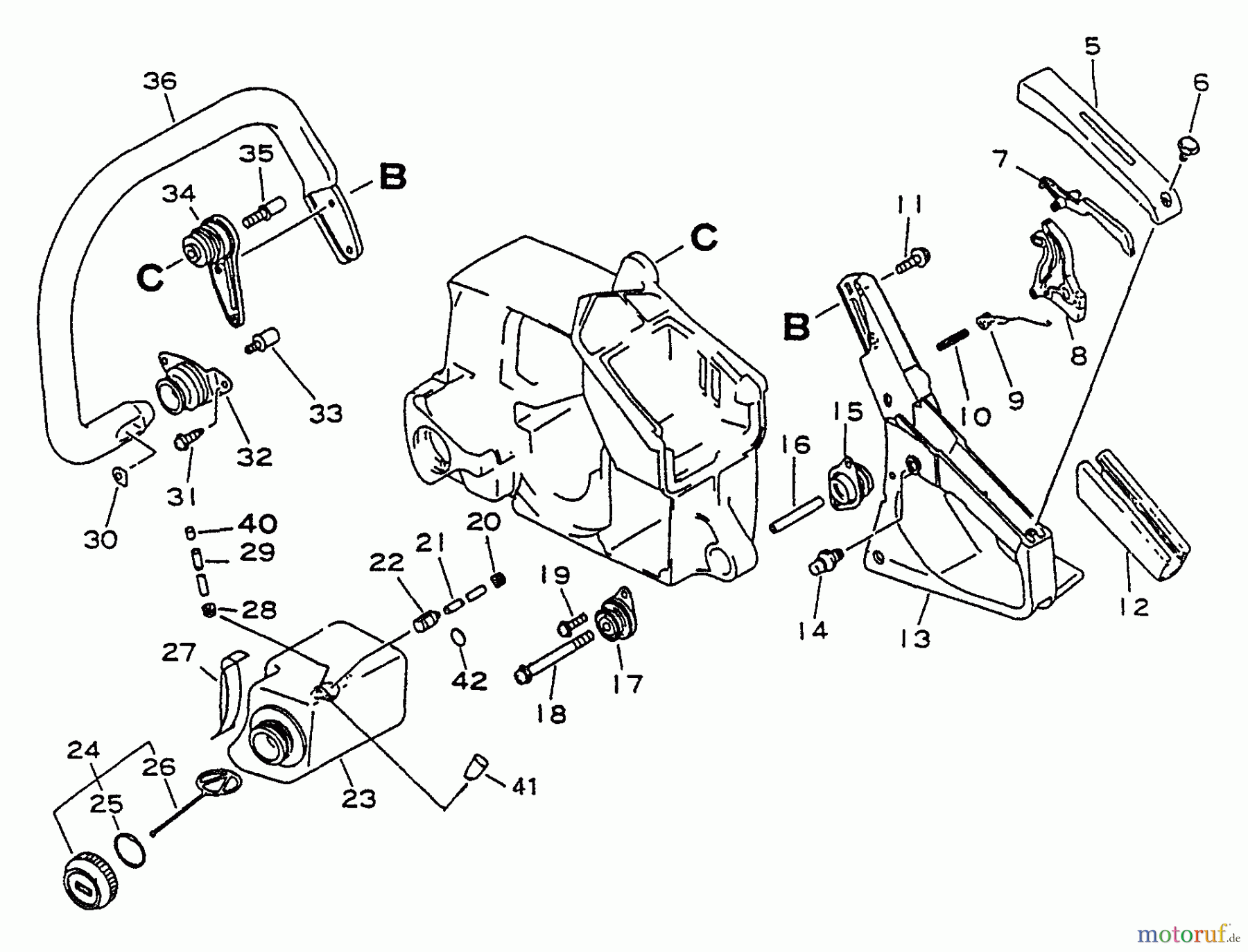

Handles, Fuel System CS-3900 - Echo Chainsaw

Posizione		Articolo numero	Descrizione
5		16-351155-35430	Handgriffdeckel CS-3700
6		16-900252-04014	Schraube 4 x 14 CS-3900, SHR-
7		16-178090-37930	Gashebelsperre CS-3700
8		1617800537931
9		16-178043-35430	Feder CS-2700ES
10		16-900345-40030	Spannstift
11		16-900162-05022	Schraube CS-3500,-3501,SRM-
12		16-351111-19830	Griff
13		1635111037930
14		16-178302-37930	Halbgasknopf CS-3050/4200
15		1699999999999
16		16-100924-35430	Stift
17		16-100922-35430	Puffer CS-3600/3900 ohne CE
18		1690025205070
19		16-900242-04028	Schraube
20		16-132115-12330	Dichtring CS-3600, CS-4500,
21		16-132010-35430	Benzinleitung(Gummi) CS-3900,
22		1613120519832
23		1613103937931
24		16-131004-37933	Tankdeckel(Kunstst.) CS-3500,
25		16-900720-00022	O-Ring CS-3500,3700
26		16-A365-000050	Halter, Tankdeckel CS-3700ES/-
27		16-131910-35430	Halterung
28		16-131329-35431	Gummi
29		16-131312-35431	Leitung(Gummi)
30		16-351611-35430	Mutter 5mm
31		16-900252-05020	Schraube M5x20
32		16-100910-35430	Puffer
33		16-100915-35430	Schraube
34		16-100921-35430	Puffer CS-3600, CS 3900
35		16-100915-35430	Schraube
36		16-351610-35430	Handbügel 3900
40		16-131314-35430	Ventil
41		16-100223-07320	Stopfen CS-3900 Produktion
42		16-V490-001230	Clip CS-3500/2600/350TES,
