Spareparts

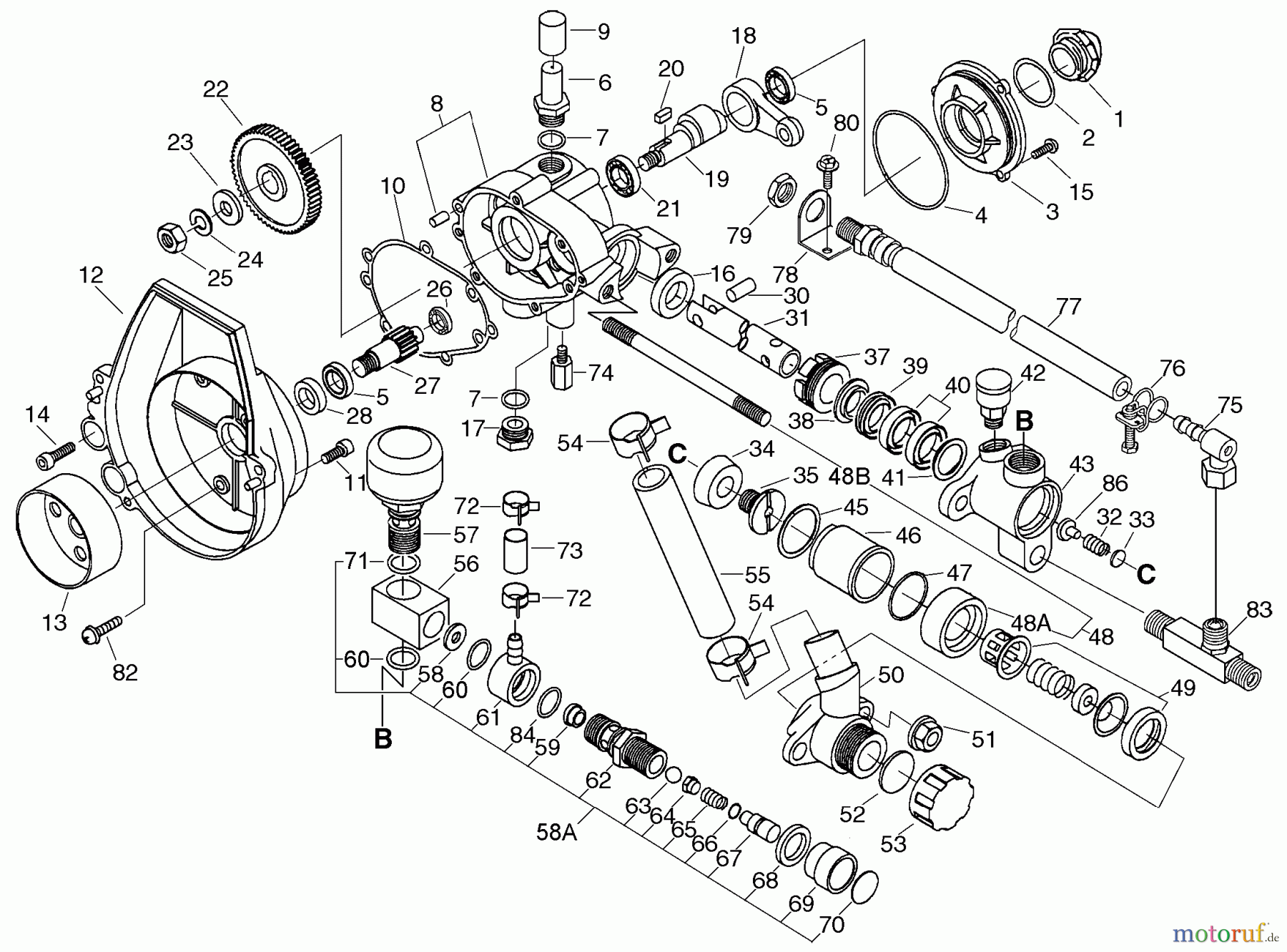

Pressure Pump Twin Nozzle Type SHP-800 - Echo Shaft Hedge Trimmer,

Echo Heckenscheren SHP-800 - Echo Shaft Hedge Trimmer, Pressure Pump Twin Nozzle Type

Posizione	Articolo numero	Descrizione
1	1670615001954
2	1670615002781
3	1670602003742
4	1670602004970
5	16-900800-36001	Kugellager,NSK (Nipppon
6	1670602006920
7	1690072230112
8	1670602008A43
9	1670602009970
10	1670602010700
11	16-900162-05018	Schraube 5x18 (Eisen) PB-500
12	1670602012241
13	1670602013250
14	16-900162-05025	Schraube 5x25 CS-5100/PB-46LN/
15	16-900242-04012	Schraube CS-2600
16	1670602016970
17	1670602017920
18	1670602018220
19	1670602019230
20	1670602020030
21	16-900810-06201	Kugellager
22	1670602022231
23	16-900600-00008	Scheibe
24	16-900605-00008	Scheibe
25	1670602025950
26	16-900800-00609	Kugellager PB-46LN
27	1670602027231
28	1670602028970
30	1670602030230
31	1670602031A13
86	1670615086060
32	1670602032010
33	1670602033710
34	1670602034770
35	1670602035911
37	1670602037620
38	1670602038720
39	1670602039720
40	1670602040771
41	1670602041720
42	1670602042040
43	1670602043421
45	1670602046780
46	1670602047412
47	1670602048970
48	1670602049A20
48A	1670602049821
48B	1670602036951
49	1670602050000
50	1670615050520
51	1670602052950
52	1625021011610
53	1625021111610
54	1670615054931
55	1670615055770
56	1670602055621
57	1670602056411
58A	1670602060A22
58	1670602061760
59	1670602062012
60	16-900720-00016	O-Ring CS-280EG
61	1670602064620
62	1670602065621
63	1670602066011
64	1670602067820
65	1670602068010
66	16-900720-00007	O-Ring
67	1670602070620
68	1670602071920
69	1670602072920
70	1670602073091
71	1690072000125
72	16-132013-14010	Klemme SHR-170SI
73	1670615073760
74	1670615074950
75	1670615075720
76	1670615076950
77	1670615077761
78	1670615078450
79	1670615079950
80	16-900242-05014	Schraube(Eisen) CS-3500, SRM
82	16-900242-05025	Schraube CS-3500, HCA-2500,
83	1670615083020
