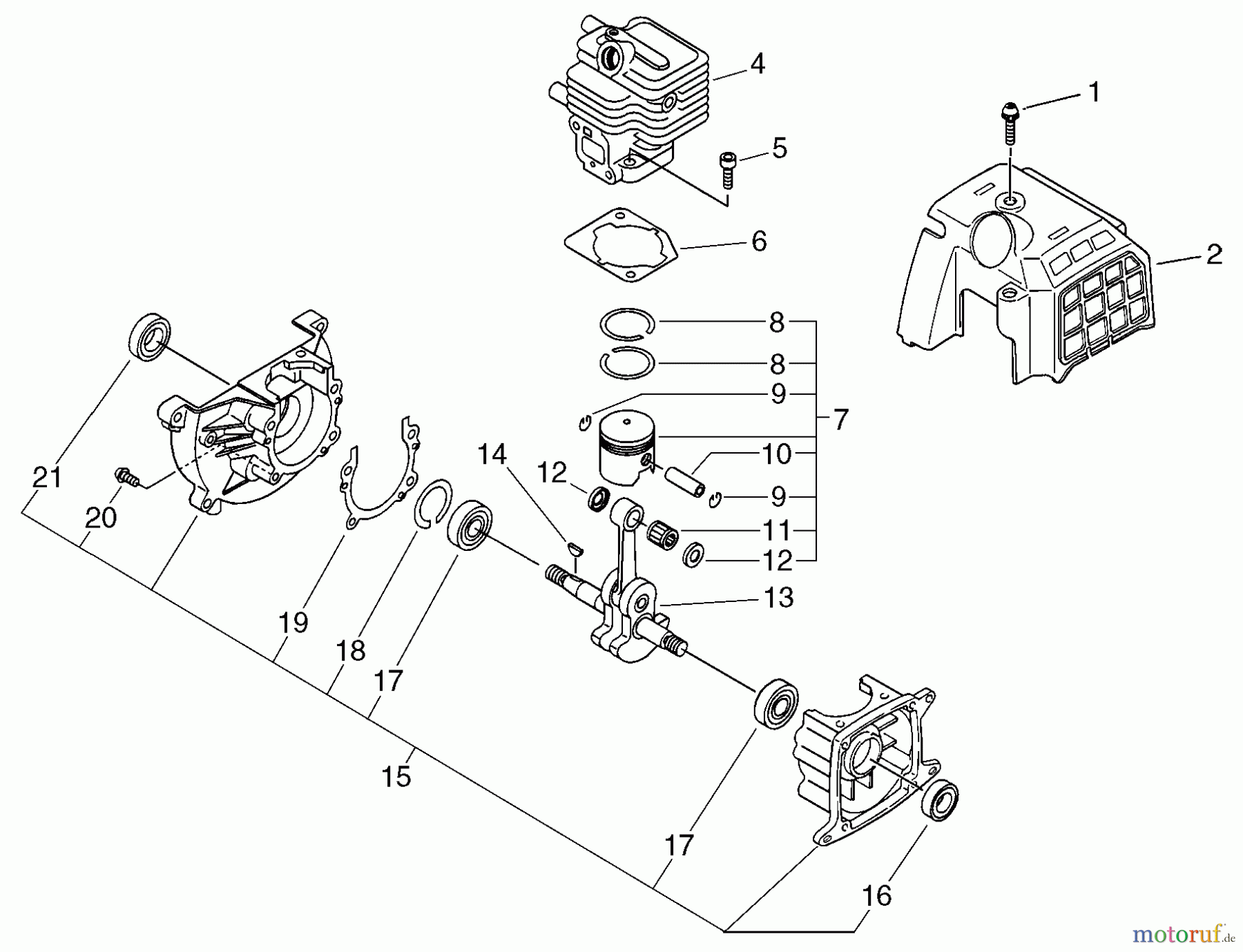

Echo SHP-800 - Shaft Hedge Trimmer, Crankcase, Cylinder, Piston Ricambi

Crankcase, Cylinder, Piston SHP-800 - Echo Shaft Hedge Trimmer,

Echo Heckenscheren SHP-800 - Echo Shaft Hedge Trimmer, Crankcase, Cylinder, Piston
PosizioneArticolo numeroDescrizione
1 16-900242-05014Schraube(Eisen) CS-3500, SRM
2 16A160000030
4 1610101161230
5 16-900162-05022Schraube CS-3500,-3501,SRM-
6 1610101055930
7 16P021014440
8 16-A101-000000Kolbenring GT-2150, EDR-2100
9 16-100015-04630Sicherungsring(Eisen) CS-2600/
10 16-100013-22330Kolbenbolzen CS-2600
11 16-V553-000020Nadellager, Pleulauge SRM-2655
12 16-100014-55930Distanzscheibe, Kolben
13 1610010055931
14 16-100142-12330Polradkeil CS-3500/3501/SRM-
15 1610020457031
16 16-100213-05530Simmerring SRM-320/350/RM-
17 16-900800-36001Kugellager,NSK (Nipppon
18 16-900702-00028Seegerring, innen, 28mm
19 16-100242-55930Dichtung, Kurbelgehäuse SRM-
20 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
21 16-100212-28230Simmerring ISCD 12x28x7 PB-
