Clutch, Fuel System, Ignition, Starter SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E)

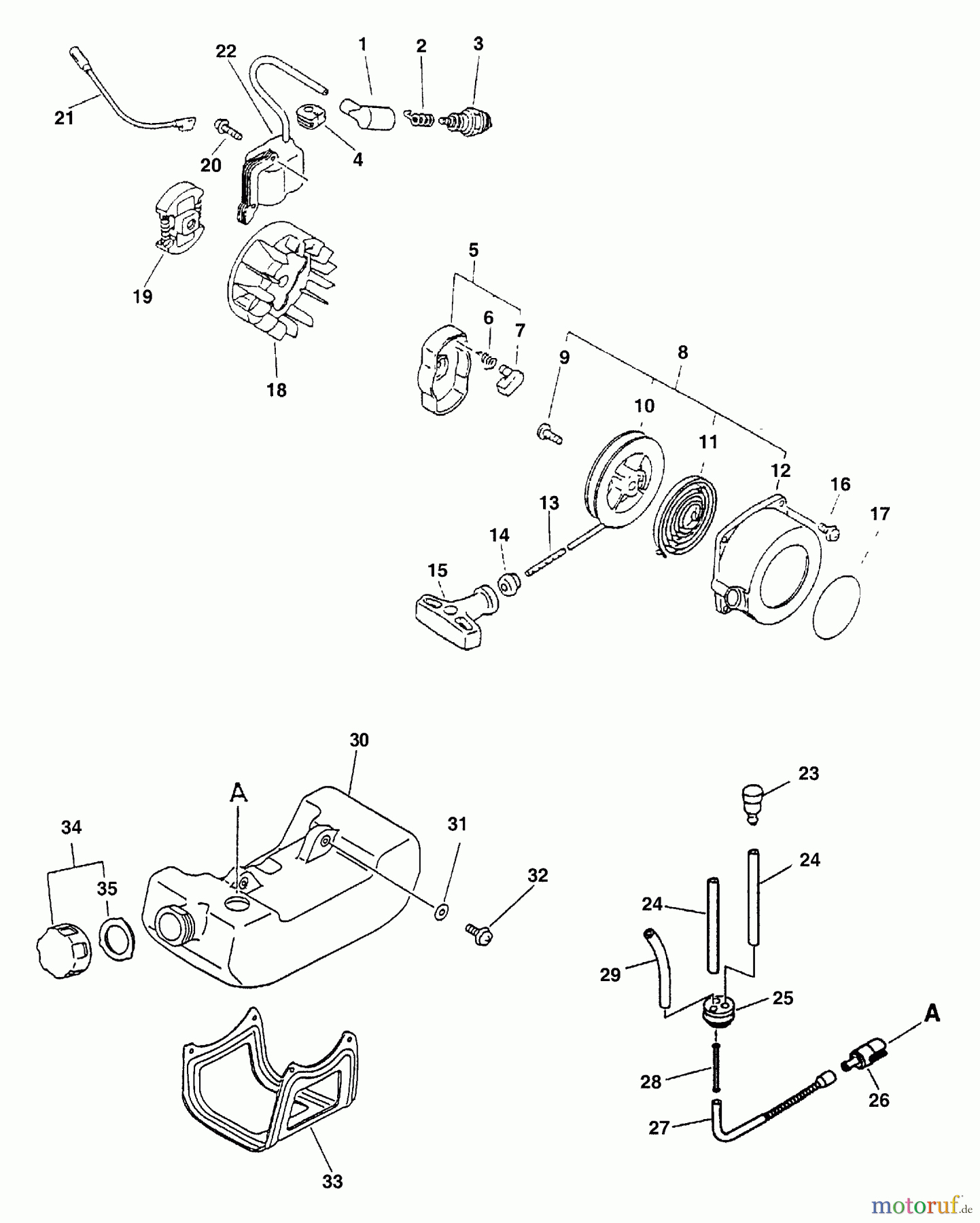

 Echo Heckenscheren SHC-2401 - Echo Shaft Hedge Trimmer (Type 1E) Clutch, Fuel System, Ignition, Starter
PosizioneArticolo numeroDescrizione
1 16-159012-01620Zündkerzenkappe SRM-2010, CS-
2 16-159011-03432Kontaktfeder CS-2600/4200/PB-
3 1699944500071
3 16-159010-10230Zündkerze CS-2600/SRM-320/350/
4 16-156112-40630Dichtring/T-226
5 16-177202-44331Starterklinke ES-1000 ab Ser.-
6 16-177234-12220Feder, Starterklinke RM-4000/
7 16-177218-44330Starterklinke SRM-2450/PB-
8 16-177200-42033Starter kpl. ES-2000/2100/
9 16-177236-44330Schraube CS-2600/ SRM-320/350/
10 16-177215-44430Seilscheibe SRM-2305/ES-2100/
11 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
12 16-177232-42032Startergehäuse GT-2010 SRM-
13 1616
14 16-177227-42030Seilführung ES-2100/2400/HC-
15 16-177228-06530Startergriff ES-2100/2400/HC-
16 16-900163-04016Schraube
17 16X502000190
18 16-156801-44731Polrad, Schwungmagetzünd. ES-
19 16-175000-56831Kupplung SRM-220ES/T-226
20 16-900162-04022Schraube (10)
21 16-V485-001080Kabel CS-310ES
22 1615660152131
23 16-A356-000031Ventil Tankbelüftung PAS-2400/
24 16-V471-001200Leitung(Gummi) CS-3000, CS-
25 Echo Dichtring HC-1500/HCR-1500/16-132115-46730Dichtring HC-1500/HCR-1500/
26 16-131205-07321Benzinfilter CS-3500/2600,SRM-
27 16-132012-12361Leitung(Gummi) HC-341ES
28 16-132011-03360Verbindungsstück ES-2400, HCA-
29 16-132010-56330Überlaufleitung 9cm CS/ES/GT/
30 16-131005-46831Tank HCA-2410
31 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
32 16-900238-05016Schraube 5*16
33 16-305110-42030Abstellbock PP-600, HCA-2500,
34 16-131004-55830Tankdeckel HC-1500, HC-2400,
35 16-131016-55830Dichtung Tankdeckel SRM-320/
1690248
1690008
1699944440000
