Echo SHC-2100 - Shaft Hedge Trimmer (Type 1E) Engine, Crankcase, Ignition, Cylinder Cover Ricambi

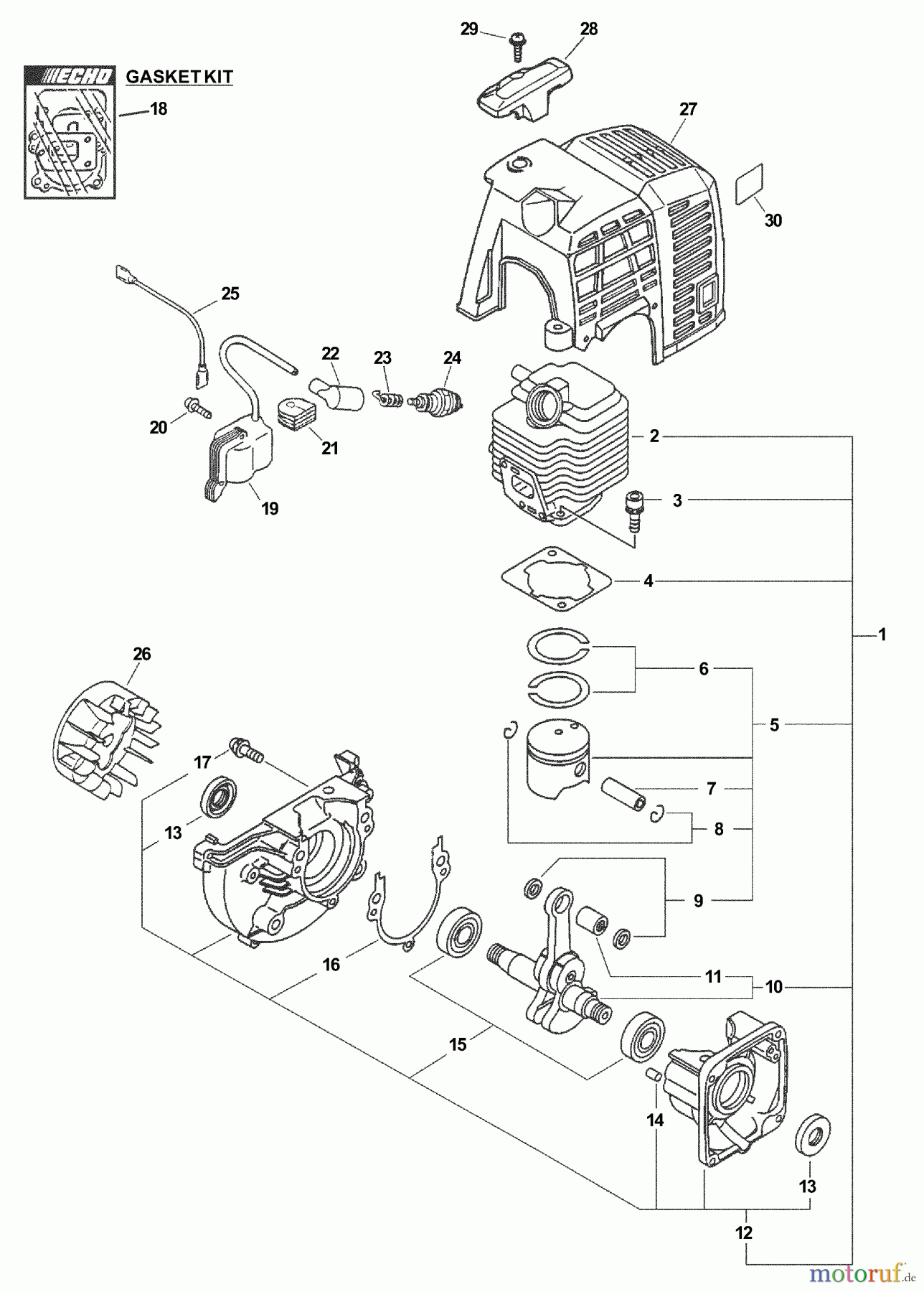

Engine, Crankcase, Ignition, Cylinder Cover SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E)

Echo Heckenscheren SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E) Engine, Crankcase, Ignition, Cylinder Cover
PosizioneArticolo numeroDescrizione
1 16SB1026
2 16-101011-06562Zylinder HC-1500/1600 ES-2100/
3 16-900162-05022Schraube CS-3500,-3501,SRM-
4 16-101010-44332Fußdichtung (Papier) SRM-2010/
5 16-100000-48732Kolben kpl. ES-2100, GT-2150,
6 16-A101-000000Kolbenring GT-2150, EDR-2100
2 16-A130-000011Zylinder SRM-2010/2100
5 16-P021-001102Kolben Kpl. SRM-2100SB ES-
6 16-A101-000000Kolbenring GT-2150, EDR-2100
7 16-100013-11520Kolbenbolzen SHR-170SI/T-226
8 16-100015-04630Sicherungsring(Eisen) CS-2600/
9 16-100014-11520Distanzring(Eisen) SHR-170Si/
10 16-100100-44732Kurbelwelle
11 16-V553-000010Nadellager CS-2600
12 16-100204-52133Kurbelgehäuse kpl. SHR-170SI/
13 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
14 16-V622-000020Stift
15 16-94035-36201Kugellager EA-410/SHR-170SI
16 16-100242-42030Dichtung/T-226 WP-1000/ES-
17 16-900162-05028Schraube SHR-170SI/PB-250/T-
18 1688900021463
19 1615660152131
20 16-900162-04022Schraube (10)
21 16-156112-40630Dichtring/T-226
22 16-159012-01620Zündkerzenkappe SRM-2010, CS-
23 16-159011-03432Kontaktfeder CS-2600/4200/PB-
24 16-159010-10630Zündkerze
24 16-159017-10230Zündkerze
25 16-V485-001080Kabel CS-310ES
26 16-156801-44731Polrad, Schwungmagetzünd. ES-
27 16-101514-48930Zyl.Abdeckung HCA-2400/HCA-
28 16-159912-54130Zylinderschutz HCA-2400
29 16-900238-05016Schraube 5*16
30 16-X505-002310Aufkleber, Vorsicht SRM-265ES/
