Carburetor -- C1U-K52 SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E)

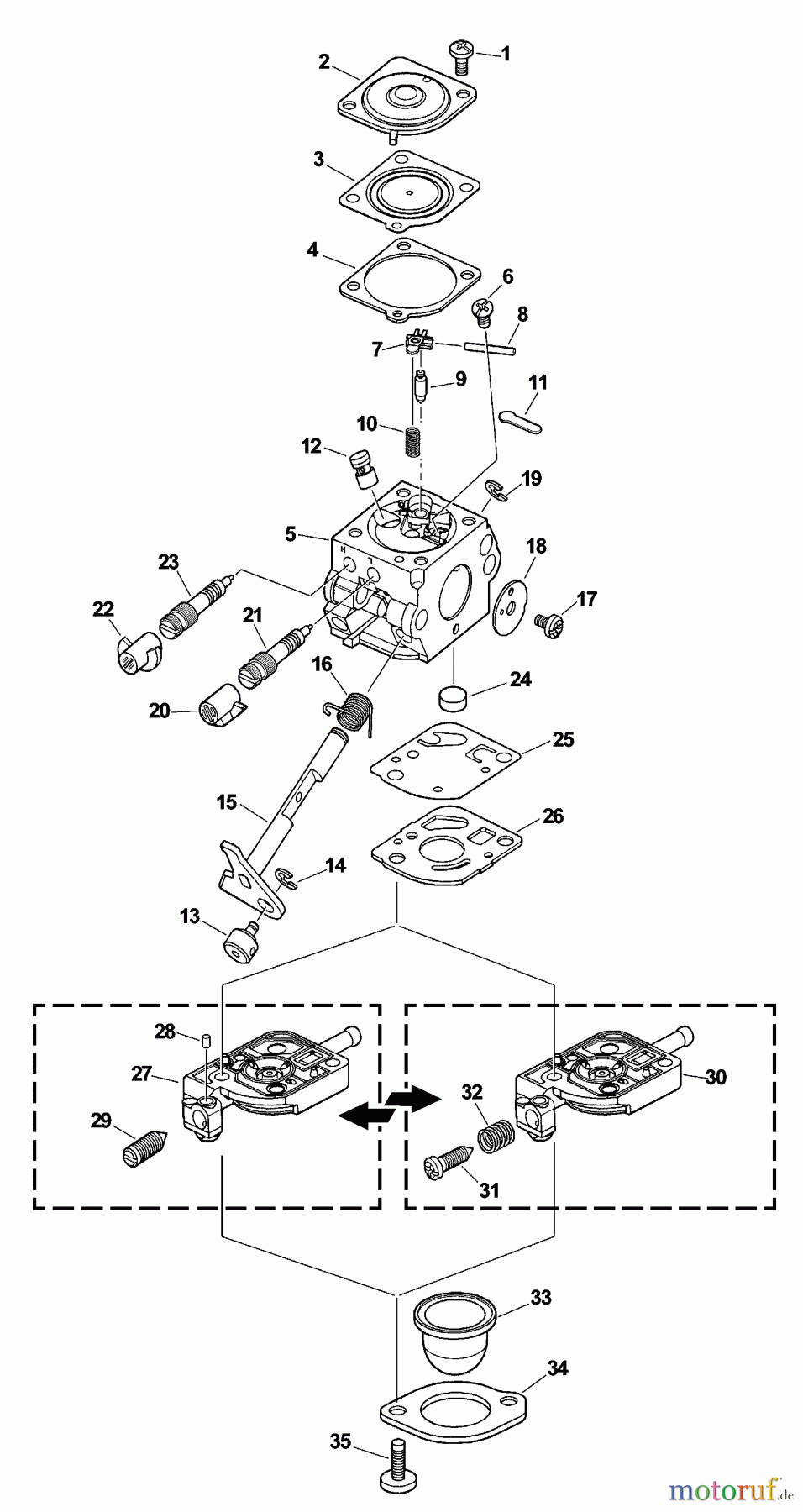

Echo Heckenscheren SHC-2100 - Echo Shaft Hedge Trimmer (Type 1E) Carburetor -- C1U-K52
PosizioneArticolo numeroDescrizione
16-125200-13312Vergaser SRM 2100SB
1 16-125344-52130Schraube SHR-170SI
2 16-125342-52130Membrandeckel SHR-150SI
3 1616
4 1616
5 1616
6 16-125339-42030Schraube SHR-170SI
7 1616
8 1616
9 1616
10 1616
11 1616
12 16-125376-13120Düse
13 16-125372-42030Schraube
14 16-125327-13930Clip
15 16-125317-49030Gasgestänge
16 16-125313-42030Feder ES-2000,HC-2100,PP-600,
17 16-125314-13930Schraube
18 16-125316-49030Ventil
19 16-125327-15130Clip
20 16-125329-09860Begrenzer, Vergaser C1U-K51 +
21 16-125318-13120Nadel, Standgas
22 16-125329-39030Begrenzer, Vergaser HC-2400,
23 16-125320-13310Nadel, Vollast
24 1616
25 1616
26 1616
27 16-P005-000990Deckel ES-2100/2400, HC-1500/
28 16-125378-13930Hülse
29 16-125334-13930Einstellschraube
30 16-P005-000590Vergaserdeckel SRM-2455S
31 16-125334-06960Einstellschraube HC-1500, SRM-
32 16-125333-06960Feder
33 16-125381-08660Pumpengummi SRM-2450/PB-2455/
34 16-125363-11610Ring
35 16-125310-11610Schraube
16-125300-13310Vergaserreparatursatz
16-125303-13310Vergaserdichtsatz SRM-2015,
