Echo HCR-1500 - Hedge Trimmer (Type 1E) Handle, Throttle, Stop Switch Ricambi

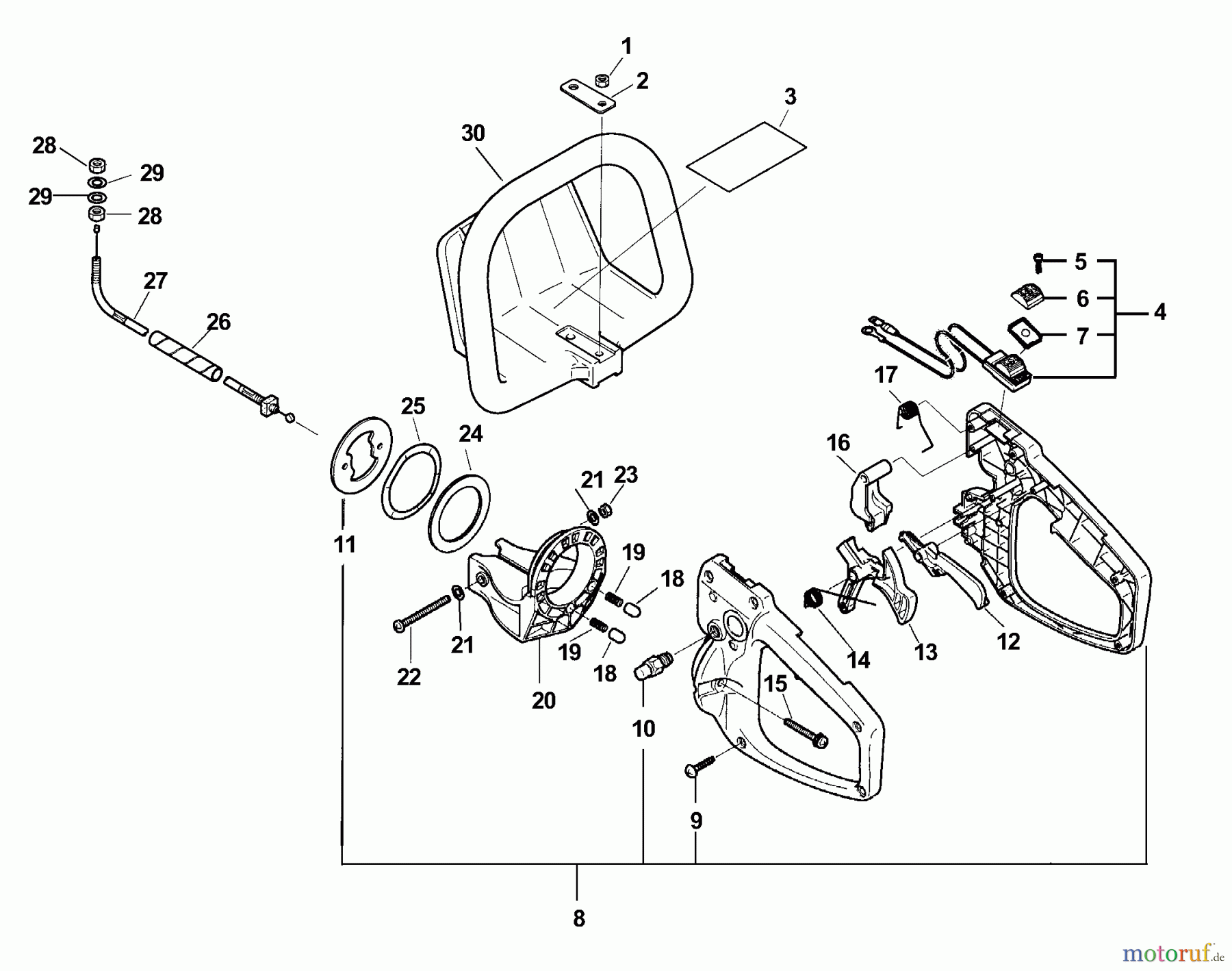

Handle, Throttle, Stop Switch HCR-1500 - Echo Hedge Trimmer (Type 1E)

Echo Heckenscheren HCR-1500 - Echo Hedge Trimmer (Type 1E) Handle, Throttle, Stop Switch
PosizioneArticolo numeroDescrizione
1 16-900560-00005Mutter M5, selbstsichernd (10)
2 16-351611-05360Platte
3 1689017740630
3 1689031705160
4 16-163400-13360Stop-Schalter HRC-1500
5 16-900220-03010Schraube SRM-4000 U, SRM-5000
6 16-163410-49231Schieber f.Stopschalter EA-410
7 16-890157-12330Abdeckung EA-410
8 16-351101-13360Drehgriff kpl. HCR-1500
9 16-900256-04016Schraube M4x16 CS-3500/-2600
10 1699999999999
11 16-351313-13361Scheibe f.Drehgriff HCR-1500
12 16-178012-13360Gashebelsperre
13 16-178010-13361Gashebel HCR-1500
14 16-178013-13660Feder
15 16-900238-05030Schraube 5x30
16 16-351648-13360Halter, Handgriff
17 16-178043-13660Feder HCA-2400
18 16-605611-13360Stift HCR-1500/1510/161ES
19 16-178043-13360Feder HCR-1500/1500SI/1510
20 16-351312-13361Drehgriffhalterung HCR-1500
21 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
22 16-900220-05047Schraube 5x47 HC-1500
23 16-900560-00005Mutter M5, selbstsichernd (10)
24 16-689025-13361Unterlagscheibe HCR-1500
25 16-178129-13361Scheibe HCR-1500
26 16-178127-13361Tülle
27 16-178001-13360Gaszug HCR-1500
28 16-900502-00006Mutter SRMF-340 6 (3N)
29 16-900600-00006Scheibe
30 16-351610-05360Vord.Handgriff HCR-1500, HCR-
