Echo HCA-261 - Hedge Trimmer, S/N: 02001001 - 02999999 Articulating Gear Case Ricambi

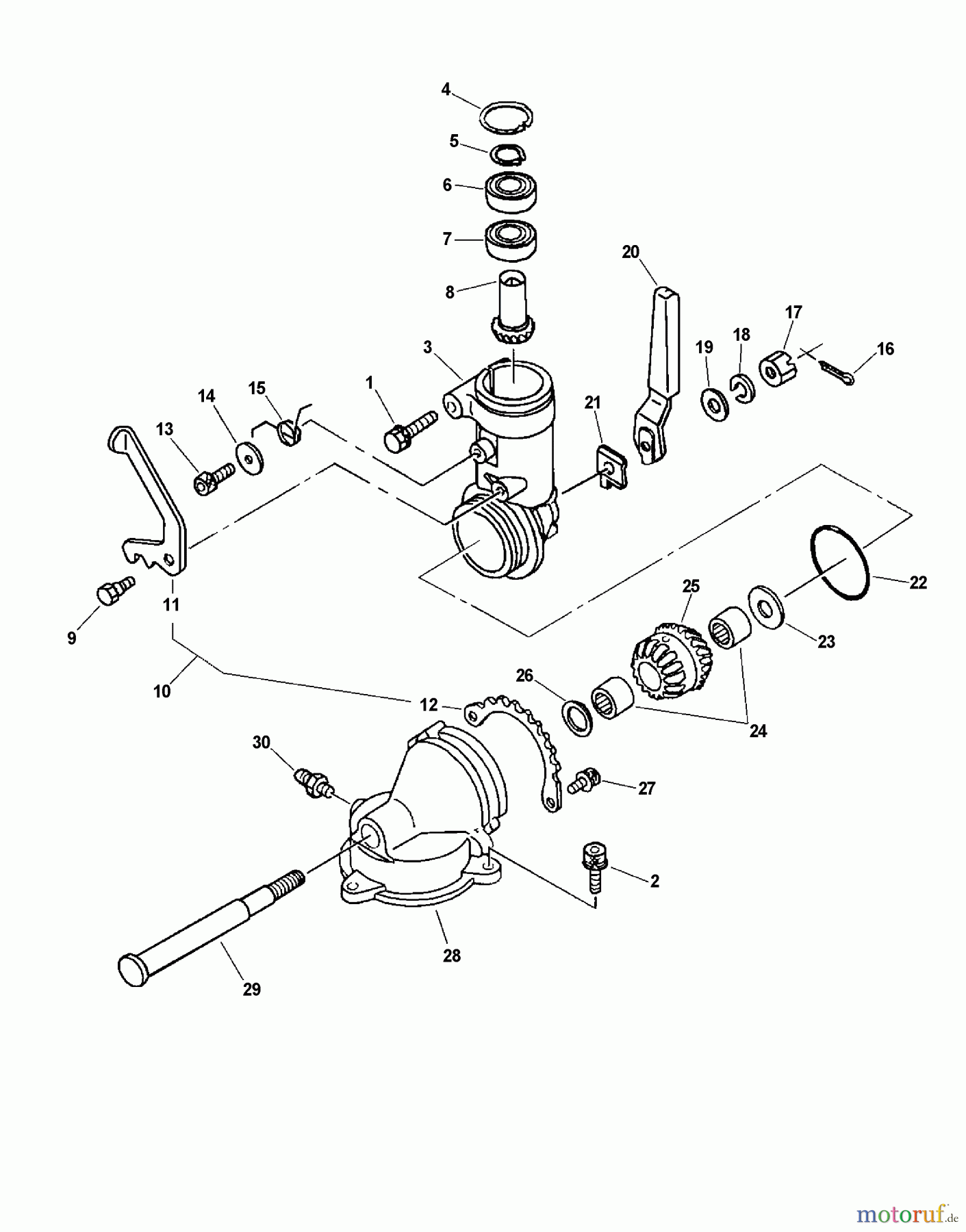

Articulating Gear Case HCA-261 - Echo Hedge Trimmer, S/N: 02001001 - 02999999

Echo Heckenscheren HCA-261 - Echo Hedge Trimmer, S/N: 02001001 - 02999999 Articulating Gear Case
PosizioneArticolo numeroDescrizione
1 16-900142-05035Schraube(Eisen) (10)
2 16-900162-05018Schraube 5x18 (Eisen) PB-500
3 16-610410-12361Rohrflanschgehäuse HCA-2400
4 16-900702-00022Seegerring, innen, 22mm HCA-
5 16-900706-00010Haltering
6 16-900858-06900Kugellager,NSK (Nippon Seikkon
7 16-900855-06900Kugellager, NSK (Nippon
8 16-610311-12360Antriebswelle HCA-2400/2410
9 16-610474-12360Schraube HCA-2410
10 16-P021-000850Zahnsegment HCA-2400/2410
11 16-610472-12361Hebel f.Zahnsegment HCA-2400/
12 16-610470-12361Zahnsegment HCA-2400/2410
13 16-900162-05014Schraube M 5x14
14 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
15 16-178013-12360Einrastfeder HCA-2400/2410
16 16-900300-16016Splint HCA-2400
17 16-900529-00006Mutter HCA-2400/2410
18 16-900605-00006Scheibe SHR-150SI/-170SI
19 16-403720-07350Scheibe
20 16-190511-12362Hebel HCA-2400/2410
21 16-610478-12361Anschlag HCA-2400/2410
22 16-900724-00032O-Ring HCA-2400
23 16-610350-12360Scheibe HCA-2410
24 16-100113-11520Nadellager HCA-2400/2410
25 16-610361-12360Zahnrad - Winkelgetriebe HCA-
26 16-610317-12460Scheibe HCA-2400/2410
27 16-900162-04010Schraube CS-4500,-4000,-6701,-
28 16-610431-12360Gehäuse HCA-2400/12360
29 16-610310-12360Schaft HCA-2400/2410
30 16-880110-10860Schmiernippel M6 HCA-2410,
