Echo HCA-2400 - Hedge Trimmer (Type 1E) Intake, Exhaust Ricambi

• Start
• Echo
• Heckenscheren
• HCA-2400 - Echo Hedge Trimmer (Type 1E)
• Intake, Exhaust

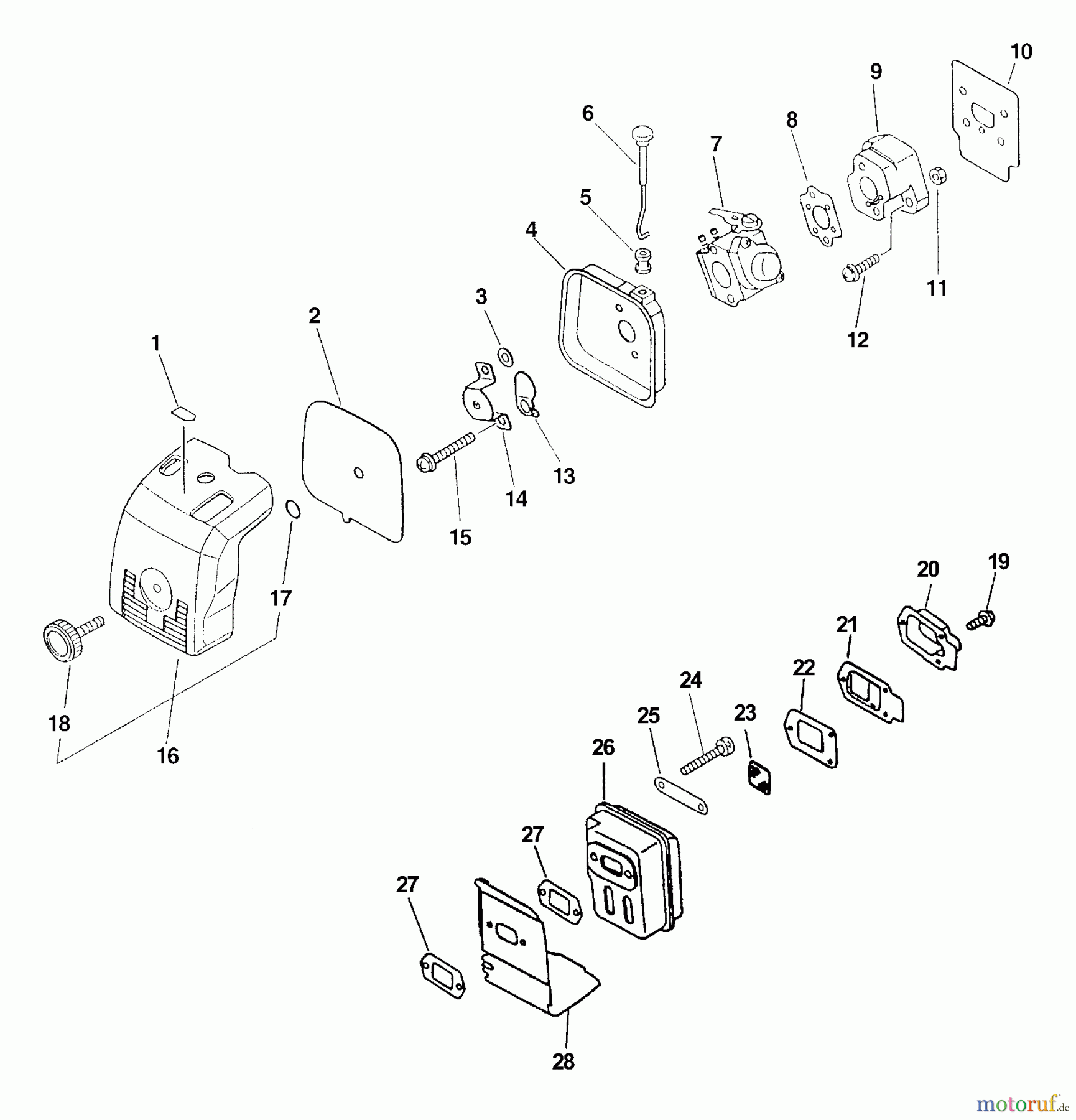

Intake, Exhaust HCA-2400 - Echo Hedge Trimmer (Type 1E)

Posizione		Articolo numero	Descrizione
1		1689012152130
2		16-130310-51830	Luftfilter SRM-2655 HCA-2400/
3		16-178516-00830	Distanzring GT-2150, HCA-2500,
4		16-130314-51730	Luftfiltergehäuse HCA-2400
5		16-178810-05230	Dichtring HCA-2500, HCR-1510,
6		16-178510-51730	Chokegestänge
7		16-123000-52133	Vergaser, WT 424 C GT-2400/
8		16-130010-05960	Dichtung
9		16-130017-42031	Zwischenflansch HC-2400, SRM-
10		16-V103-001360	Dichtung, Ansaugleitung SHR-
11		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
12		16-900238-05020	Schraube 5x20
13		16-178515-05060	Chokeklappe HCA-2500, HCR-
14		16-129011-52131	Platte / HC-2400 HCA-2500,
15		16-900242-05057	Schraube PB/HC
16		16-130302-52130	Luftfilterdeckel Produktion
17		16-900720-00003	O-Ring(Gummi)
18		16-130406-16331	Rändelmutter HCA-2400, SRM-
19		16-900238-04010	Schraube M4 x 10 ES-2400,PB-
20		16-145876-42030	Auslasstutzen, Auspuff ES-
21		16-145818-52130	Auspuffabdeckung PPT-2400
22		16-145866-42031	Dichtung HC-2410/SRM-250/GT-
23		16-145862-40630	Funkenschutzsieb SHR-170SI/
24		16-900105-05055	Schraube EA-410/SHR-170SI/T-
25		16-145642-04930	Scheibe
26		16-145806-42030	Auspuff HCA-2410
27		16-V104-000160	Dichtung, Auspuff PB-2400, GT-
28		16-A320-000250	Hitzeabweisblech HC-1600/2100/
29		1699999999999
