Echo HCA-2400 - Hedge Trimmer (Type 1E) Engine, Crankcase, Cylinder Cover, Clutch Ricambi

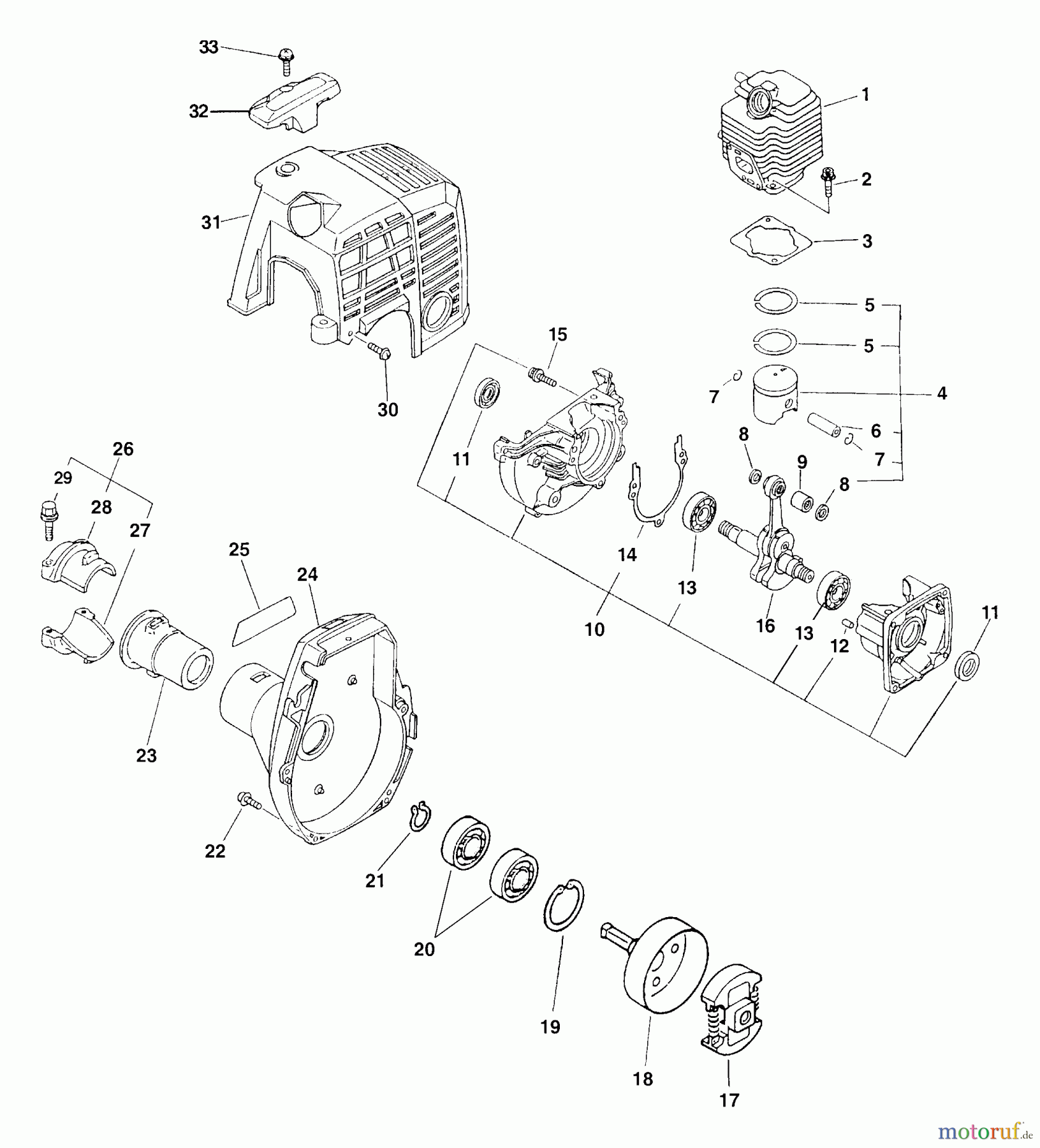

Engine, Crankcase, Cylinder Cover, Clutch HCA-2400 - Echo Hedge Trimmer (Type 1E)

Echo Heckenscheren HCA-2400 - Echo Hedge Trimmer (Type 1E) Engine, Crankcase, Cylinder Cover, Clutch
PosizioneArticolo numeroDescrizione
1 16-101003-08960Zylinder mit Kolben HCA-2400/
2 16-900162-05022Schraube CS-3500,-3501,SRM-
3 16-101010-44332Fußdichtung (Papier) SRM-2010/
4 16-100000-52130Kolben kpl. SRM-2450 ES-2000
5 16-100011-09560Kolbenring
6 16-100013-11520Kolbenbolzen SHR-170SI/T-226
7 16-100015-04630Sicherungsring(Eisen) CS-2600/
8 16-100014-11520Distanzring(Eisen) SHR-170Si/
9 16-V553-000010Nadellager CS-2600
10 1616
11 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
12 16-V622-000020Stift
13 16-94035-36201Kugellager EA-410/SHR-170SI
14 1616
15 16-900162-05028Schraube SHR-170SI/PB-250/T-
16 1616
17 16-175000-56831Kupplung SRM-220ES/T-226
18 16-175005-48931Kupplungstrommel HCA-2400/2410
19 16-900702-00028Seegerring, innen, 28mm
20 169405106001
21 16-900701-00012Seegerring außen 12mm
22 16-900163-04016Schraube
23 16-610910-55230Gummilager HCA-2400/2410
24 16-101503-52131Kupplungsgehäuse HCA-2410
25 16-890115-12360Aufkleber HCA-2400
26 16-610903-55230Gestängehalterung SRM-2100SB
27 16-A575-000100Halterung unten, Gestänge,
28 16-610922-27432Halter HCA-2410
29 16-900142-05025Schraube HCA-2400, PAS-2400,
30 16-900163-04016Schraube
31 16-101514-48930Zyl.Abdeckung HCA-2400/HCA-
32 16-159912-54130Zylinderschutz HCA-2400
33 16-900238-05016Schraube 5*16
34 16SB1027
35 1699999999999
