Driveshaft, Handles, Ignition Switch, Throttle HCA-2400 - Echo Hedge Trimmer

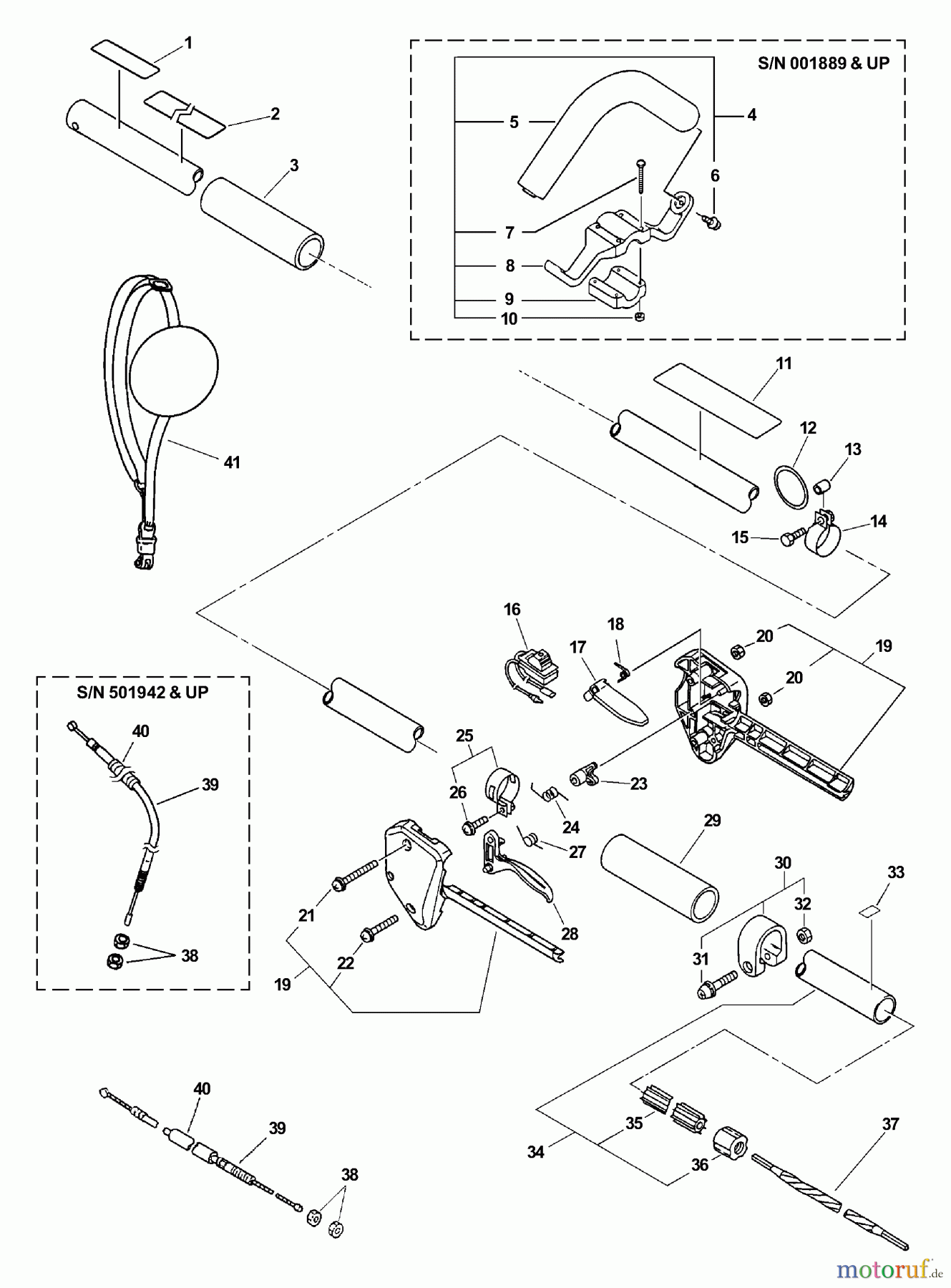

Echo Heckenscheren HCA-2400 - Echo Hedge Trimmer Driveshaft, Handles, Ignition Switch, Throttle
PosizioneArticolo numeroDescrizione
1 1689022809560
2 1689017854331
3 16-351012-54330Griff HCA-2400
4 16-351201-07133Griff kompl.
5 16-351205-07131Griff
6 16-900242-05014Schraube(Eisen) CS-3500, SRM
7 16-900242-05035Schraube SRM 4000 L/ 5000 L
8 16-351232-07131Griffhalter 25 RM-310
9 16-C423-000300Griffhalter (25) RMA-2530/ESR-
10 16-900500-00005Mutter PPT-300ES/T-226 EDR-
11 1689016012360
12 16-301016-52730Haltering CS-3000, CS-3450
13 16-699012-03330Distanzscheibe SRMF-3, HCA-
14 16-301207-08930Ring HCA-2500, SRM-2010/2450/
15 16-900100-05018Schraube
16 16-163404-12360Stopschalter HCA-2400
17 16-178090-52632Gashebelsperre SRM-330ES/
18 16-178013-52630Feder
19 16-178003-12360Plastikgehäuse HCA-2400
20 16-900500-00005Mutter PPT-300ES/T-226 EDR-
21 16-900242-05035Schraube SRM 4000 L/ 5000 L
22 Echo Schraube CS-3500, HCA-2500,16-900242-05025Schraube CS-3500, HCA-2500,
23 16-178012-12360Gasfeststeller HCA-2400
24 16-178043-12360Feder HCA-2400
25 16-301200-29431Aufhänger
26 16-900242-05014Schraube(Eisen) CS-3500, SRM
27 16-178043-42230Feder SRM-4000L/SRM-5000L
28 16-178010-52130Gashebel SRM-5000 SRM-4000,
29 16-351012-54330Griff HCA-2400
30 16-610272-52130Schelle HCA-2500, PAS-2400,
31 16-900242-05028Schraube
32 16-900500-00005Mutter PPT-300ES/T-226 EDR-
33 16-890152-04930Aufkleber
34 16-610206-12360ZSB-Gestänge HCA-2400
35 16C507000220
36 16-610246-44730Führung HCA-2400
37 16C506000360
38 16-900502-00006Mutter SRMF-340 6 (3N)
39 16-178001-44430Gaszug GT-2400/HCA-2400/SRM-
39 16-178001-56730Gaszug GT-2400/HCA-2400/SRM-
40 16-178127-50330Tülle
41 16C062000090
