Echo HC-1500 - Hedge Trimmer (Type 2E) Fuel System, Handles, Throttle, Stop Switch Ricambi

Fuel System, Handles, Throttle, Stop Switch HC-1500 - Echo Hedge Trimmer (Type 2E)

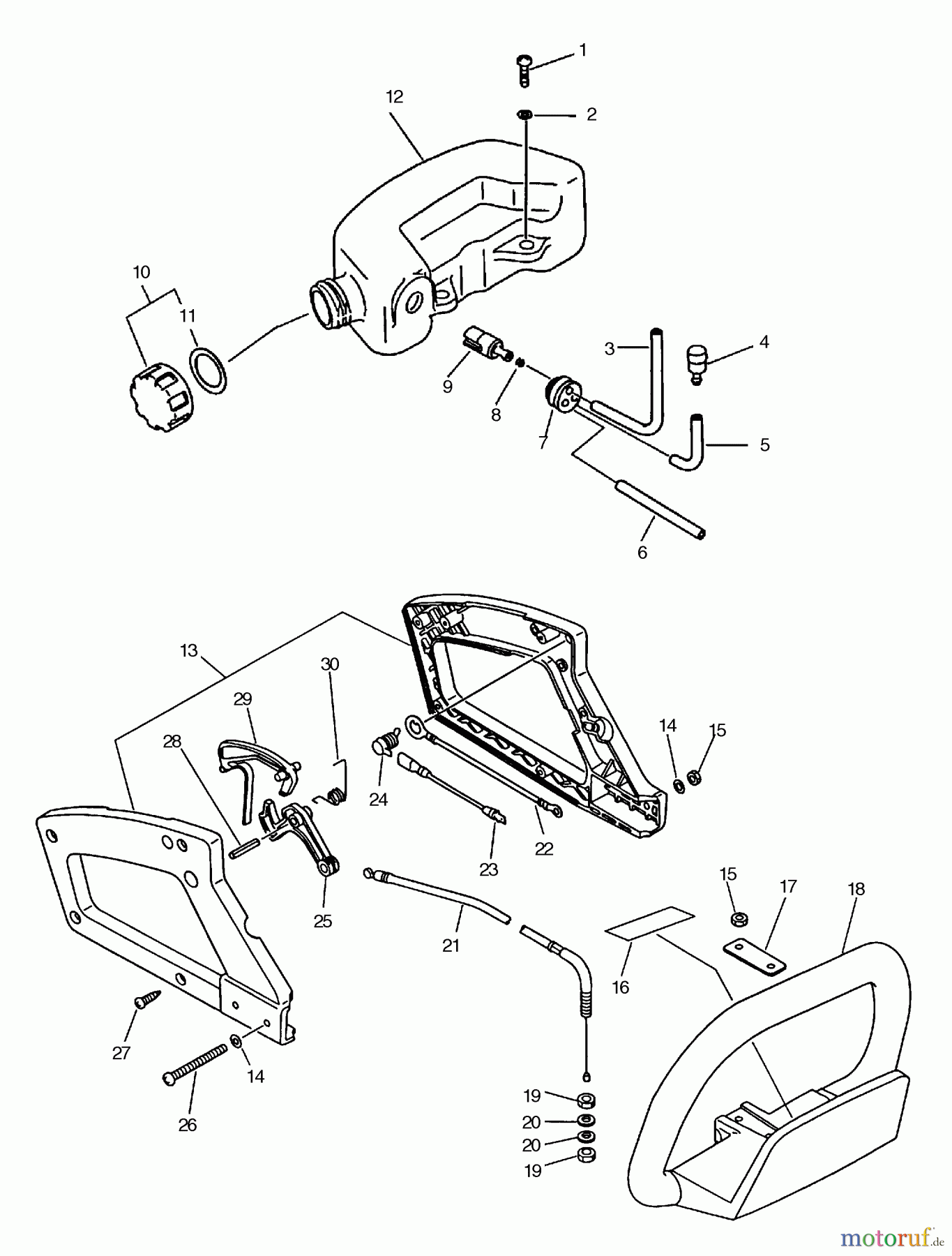

Echo Heckenscheren HC-1500 - Echo Hedge Trimmer (Type 2E) Fuel System, Handles, Throttle, Stop Switch
PosizioneArticolo numeroDescrizione
1 16-900238-05016Schraube 5*16
2 Echo Scheibe(Eisen) CS-2600/PB-250/16-900603-00005Scheibe(Eisen) CS-2600/PB-250/
3 16-132010-07530Benzinleitung(Gummi)
4 16-A356-000031Ventil Tankbelüftung PAS-2400/
5 16-V471-001200Leitung(Gummi) CS-3000, CS-
6 16-132010-06460Benzinleitung HC-2100, HCR-
7 Echo Dichtring HC-1500/HCR-1500/16-132115-46730Dichtring HC-1500/HCR-1500/
8 16-132013-09820Clip CS-2600/-3700/SRM-250/GT-
9 16-131205-07321Benzinfilter CS-3500/2600,SRM-
10 16-131004-55830Tankdeckel HC-1500, HC-2400,
11 16-131016-55830Dichtung Tankdeckel SRM-320/
12 16-131005-05361Benzintank HC-1500, HCR-1500
13 16-351100-06560Handgriff HC-1500 hinten li +
14 16-900600-00005Scheibe PB-500/452GS/DH2200ST
15 16-900560-00005Mutter M5, selbstsichernd (10)
16 1689017740630
16 1689031705160
17 16-351611-05360Platte
18 16-351610-05360Vord.Handgriff HCR-1500, HCR-
19 16-900502-00006Mutter SRMF-340 6 (3N)
20 16-900600-00006Scheibe
21 16-178001-05360Gaszug HC-1500
22 16-162010-05360Massekabel
23 16-162014-05360Massekabel
24 16-163400-03460Stop-Schalter ES-2000, HC-
25 16-178010-06560Gashebel
26 16-900220-05047Schraube 5x47 HC-1500
27 16-900255-04016Schraube HC-1500, SRM-200BE
28 16-900342-50025Spannstift (10)
29 16-178090-06560Gashebelsperre HC-1500
30 16-178043-15130Feder
1690008
1690248
