Echo HC-1001 - Hedge Trimmer, S/N: 024001 - 999999 Engine, Crankcase, Fan Housing, Cover Ricambi

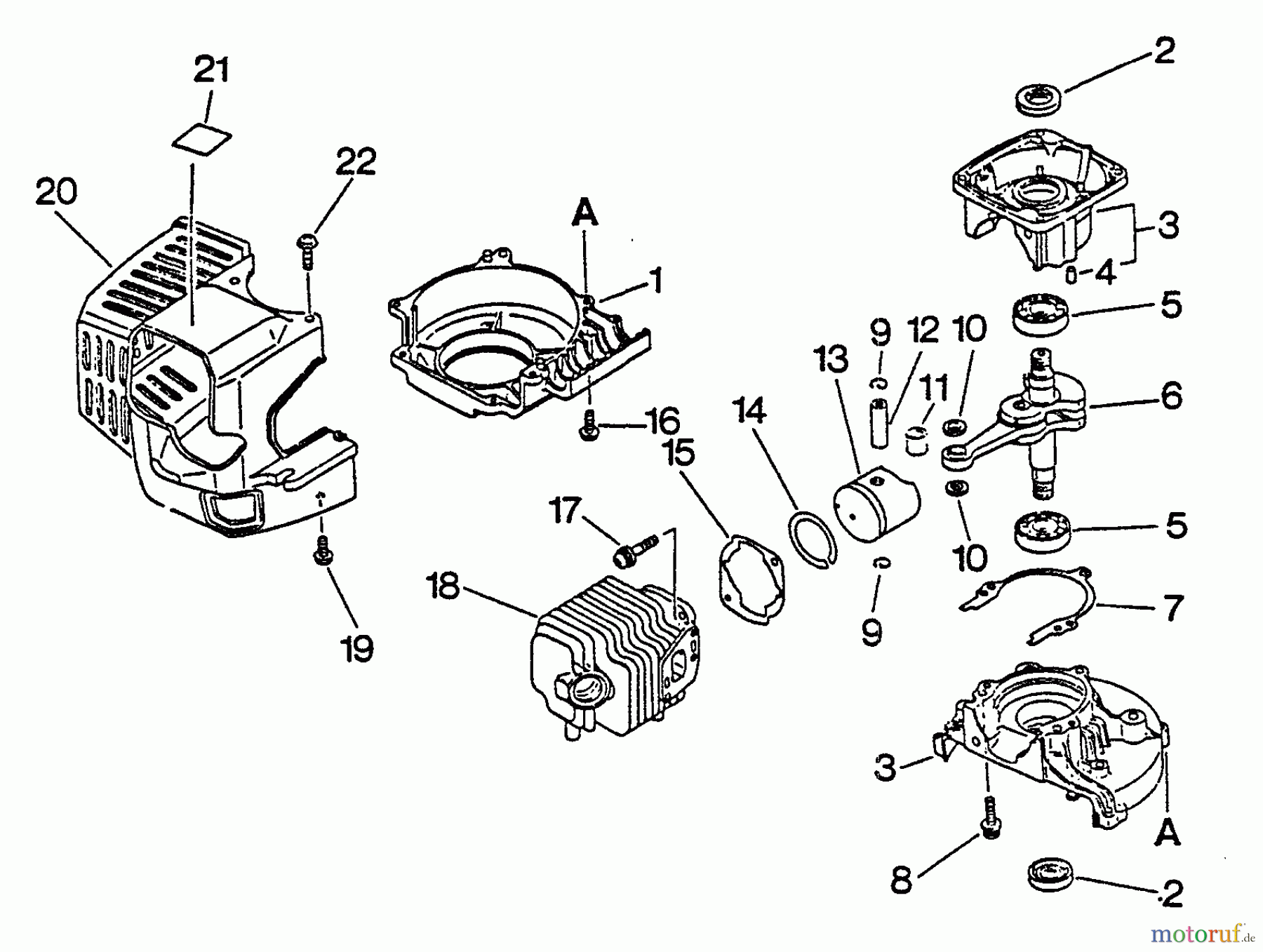

Engine, Crankcase, Fan Housing, Cover HC-1001 - Echo Hedge Trimmer, S/N: 024001 - 999999

Echo Heckenscheren HC-1001 - Echo Hedge Trimmer, S/N: 024001 - 999999 Engine, Crankcase, Fan Housing, Cover
PosizioneArticolo numeroDescrizione
1 1610151104560
2 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
3 16-100204-51030Kurbelgehäuse ES-2000
4 16-V622-000020Stift
5 16-94035-36201Kugellager EA-410/SHR-170SI
6 16-100100-44331Kurbelwelle kpl. GT-2010
7 1616
8 16-900242-05028Schraube
9 16-100015-04630Sicherungsring(Eisen) CS-2600/
10 16-100014-11520Distanzring(Eisen) SHR-170Si/
11 16-100012-51230Nadellager
12 16-100013-11520Kolbenbolzen SHR-170SI/T-226
13 16-100000-44330Kolben kpl. SRM 2010 ES-1000/
14 16-A101-000000Kolbenring GT-2150, EDR-2100
15 16-101010-44330Fußdichtung, Papier
16 16-900242-04014Schraube 4x14(Eisen)
17 16-900162-05022Schraube CS-3500,-3501,SRM-
18 16-101011-45230Zylinder SRM 2010 ES-1000 /HC-
19 16-900238-04016Schraube 4x16
20 1610151406461
21 1689011506460
22 16-900238-04012Schraube 4x12
1688900044333
