Echo PE-3100 - Edger (Type 1E) Gear Case, Shield, Blade, Tools Ricambi

Gear Case, Shield, Blade, Tools PE-3100 - Echo Edger (Type 1E)

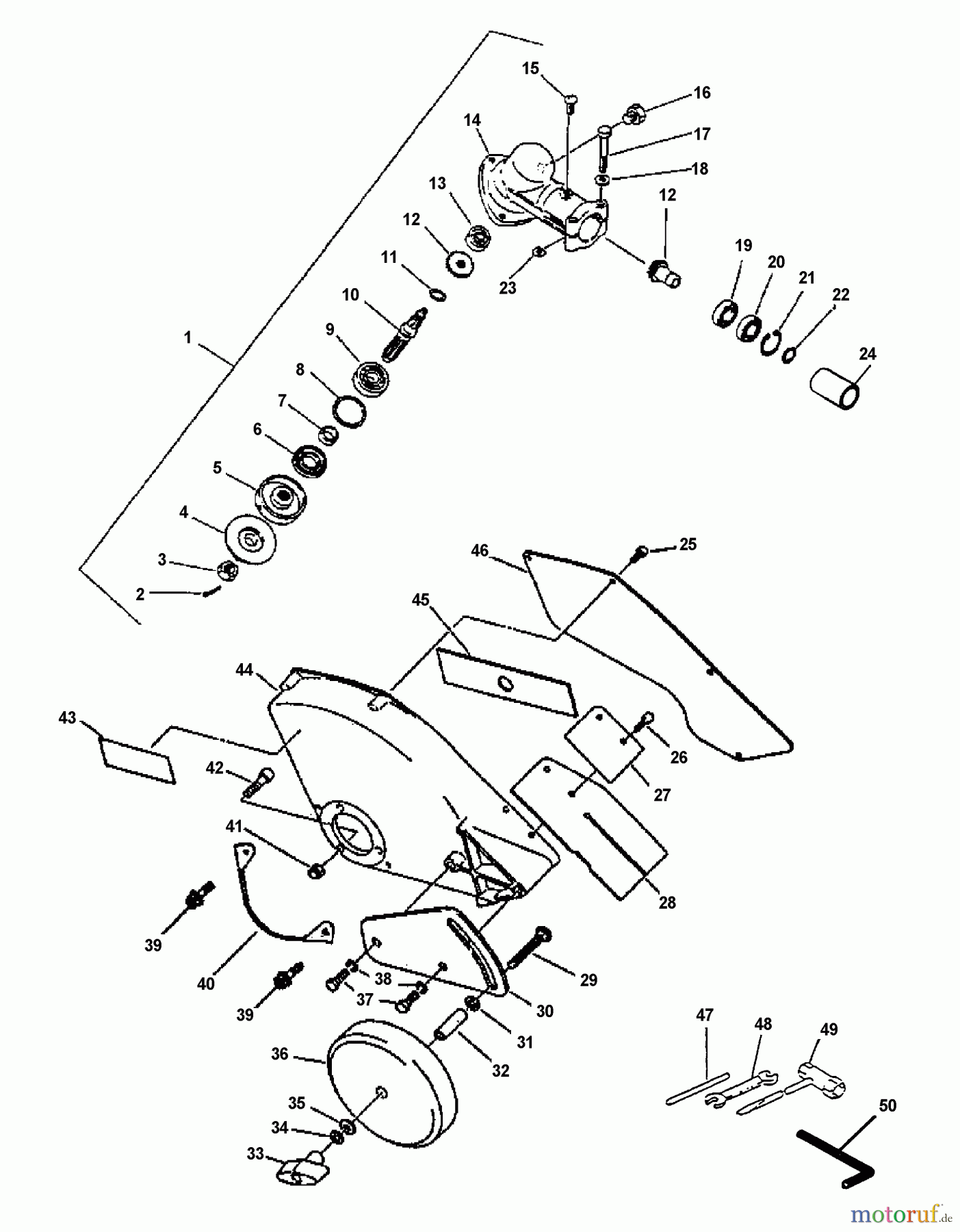

Echo Kantenschneider PE-3100 - Echo Edger (Type 1E) Gear Case, Shield, Blade, Tools

Posizione	Articolo numero	Descrizione
1	1661040058831
2	16-900300-20022	Splint PAS-2400, RMA-2530, RM-
3	16-900513-00010	Mutter 10x1,25 3N, links (10)
4	16C535000150
5	16-610313-07132	Fixierplatte PAS-2400,
6	16-610413-07130	Simmering
7	16-610315-07130	Hülse RM-380, SRM-3150/-3800
8	16-900702-00032	Seegerring, innen, 32mm
9	16-94035-36201	Kugellager EA-410/SHR-170SI
10	1661031041030
11	16-900706-00012	Haltering PPT-300ES
12	1661030058830
13	16-900800-36000	Kugellager SRM-3150, SRM-3800,
14	16P022007041
15	16-900242-05010	Schraube PPT-300ES
16	16-900100-08008	Schraube(Eisen) (10)
17	16-900100-05040	Schraube
18	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
19	16-900800-36001	Kugellager,NSK (Nipppon
20	169405106001
21	16-900702-00028	Seegerring, innen, 28mm
22	16-900701-00012	Seegerring außen 12mm
23	16-610239-04130	Scheibe
24	1661025958830
25	16-900162-04012	Schraube M4x12 CS-2600
26	16-900162-04014	Schraube
27	1669901355330
28	16-699017-55330	Schutzschild für Anbau-
29	16-610250-55330	Schraube für Anbau-
30	1630202955331
31	16-900602-00010	Scheibe PB-500
32	16-302424-52630	Hülse für Anbau-
33	16V299000550
34	16-900605-00008	Scheibe
35	16-900602-00008	Scheibe 8 (50)
36	16-C730-000030	Laufrad 6x1,5 PAS-2400,
37	16-900100-08014	Schraube M8x14, PB-250
38	16-900605-00008	Scheibe
39	16-900162-04012	Schraube M4x12 CS-2600
40	16-699025-52630	Abdeckblech für Anbau-
41	16-9005625-0005	Mutter M5 selbstsichernd (10)
42	16-900162-05022	Schraube CS-3500,-3501,SRM-
43	1689016052360
44	16P021007590
45	16-696015-52632	Schneidmesser für Anbau-
46	1669901752630
47	16-897518-01131	Blockierwerkzeug
48	16-895112-00330	Gabelschlüssel PPT-300ES
49	16-X602-000020	Kombischlüssel PAS-2400/EA-410
50	16-X605-000090	Innensechskantschlüssel 452GS
