Echo PE-2400 - Edger, S/N: 018100 - 040060 Clutch, Ignition, Starter Ricambi

• Start
• Echo
• Kantenschneider
• PE-2400 - Echo Edger, S/N: 018100 - 040060
• Clutch, Ignition, Starter

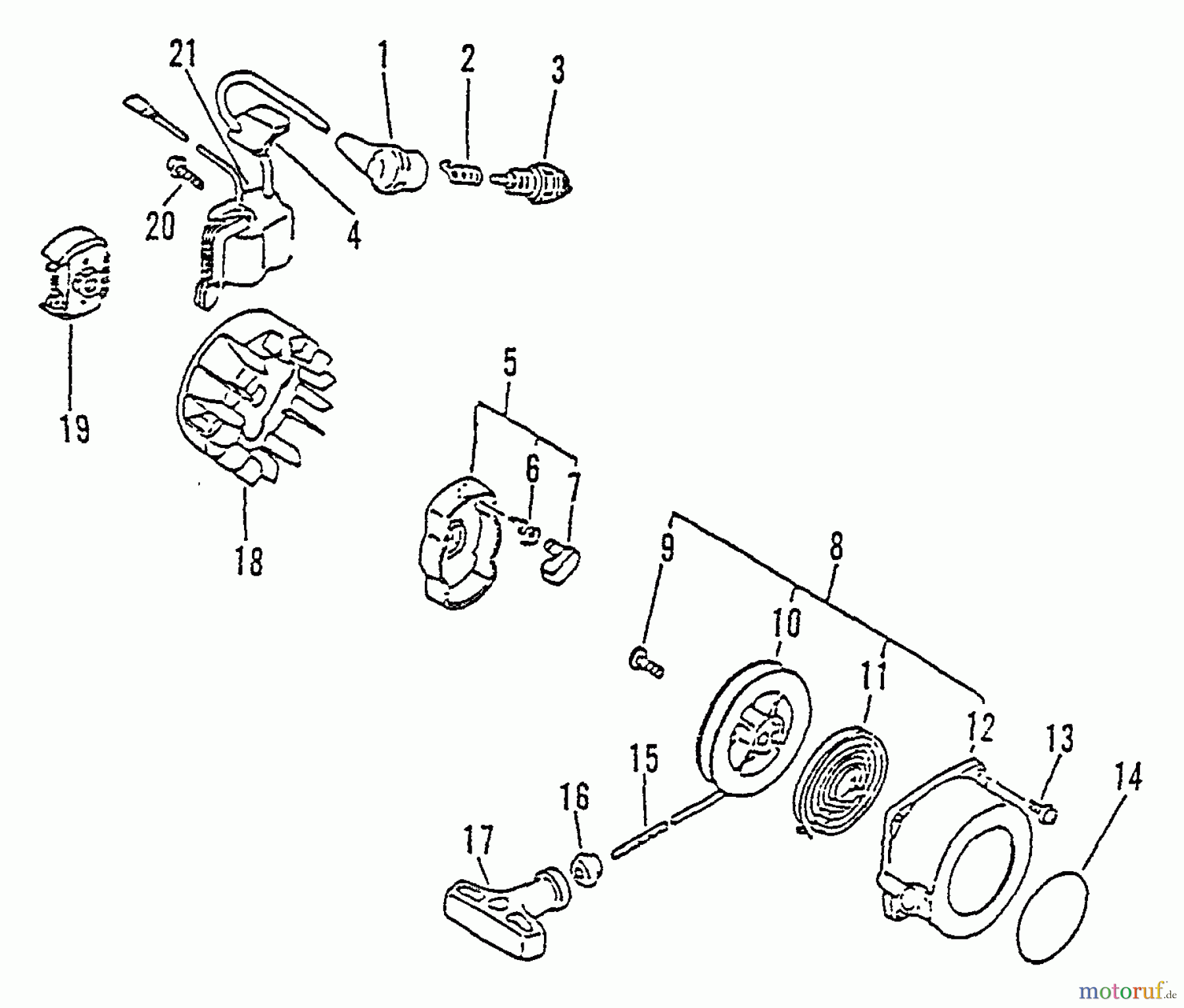

Clutch, Ignition, Starter PE-2400 - Echo Edger, S/N: 018100 - 040060

Posizione		Articolo numero	Descrizione
1		16-159012-01620	Zündkerzenkappe SRM-2010, CS-
2		16-159011-03432	Kontaktfeder CS-2600/4200/PB-
3		1699944500071
4		16-156112-40630	Dichtring/T-226
5		16-177202-44331	Starterklinke ES-1000 ab Ser.-
6		16-177234-12220	Feder, Starterklinke RM-4000/
7		16-177218-44330	Starterklinke SRM-2450/PB-
8		16-177200-42032	Starter kpl.
9		16-177236-44330	Schraube CS-2600/ SRM-320/350/
10		16-177215-44430	Seilscheibe SRM-2305/ES-2100/
11		16-177220-42030	Starterfeder ES-2100/2400/HC-
12		16-177232-42032	Startergehäuse GT-2010 SRM-
13		16-900163-04016	Schraube
14		16X502000190
15		16-177226-05530	Starterseil
16		16-177227-42030	Seilführung ES-2100/2400/HC-
17		16-177228-06530	Startergriff ES-2100/2400/HC-
18		16-156801-44731	Polrad, Schwungmagetzünd. ES-
19		16-175000-56830	Kupplung HCA-2400/2410 SRM-
20		16-900162-04022	Schraube (10)
21		16-156601-44731	Zündmodul SRM-2450/2010/_HC-
		1699944440000
