Echo PE-2400 - Edger, S/N: 008001 - 018099 Engine, Crankcase, Fan Housing, Cover, Starter, Ignition, Clutch Ricambi

Engine, Crankcase, Fan Housing, Cover, Starter, Ignition, Clutch PE-2400 - Echo Edger, S/N: 008001 - 018099

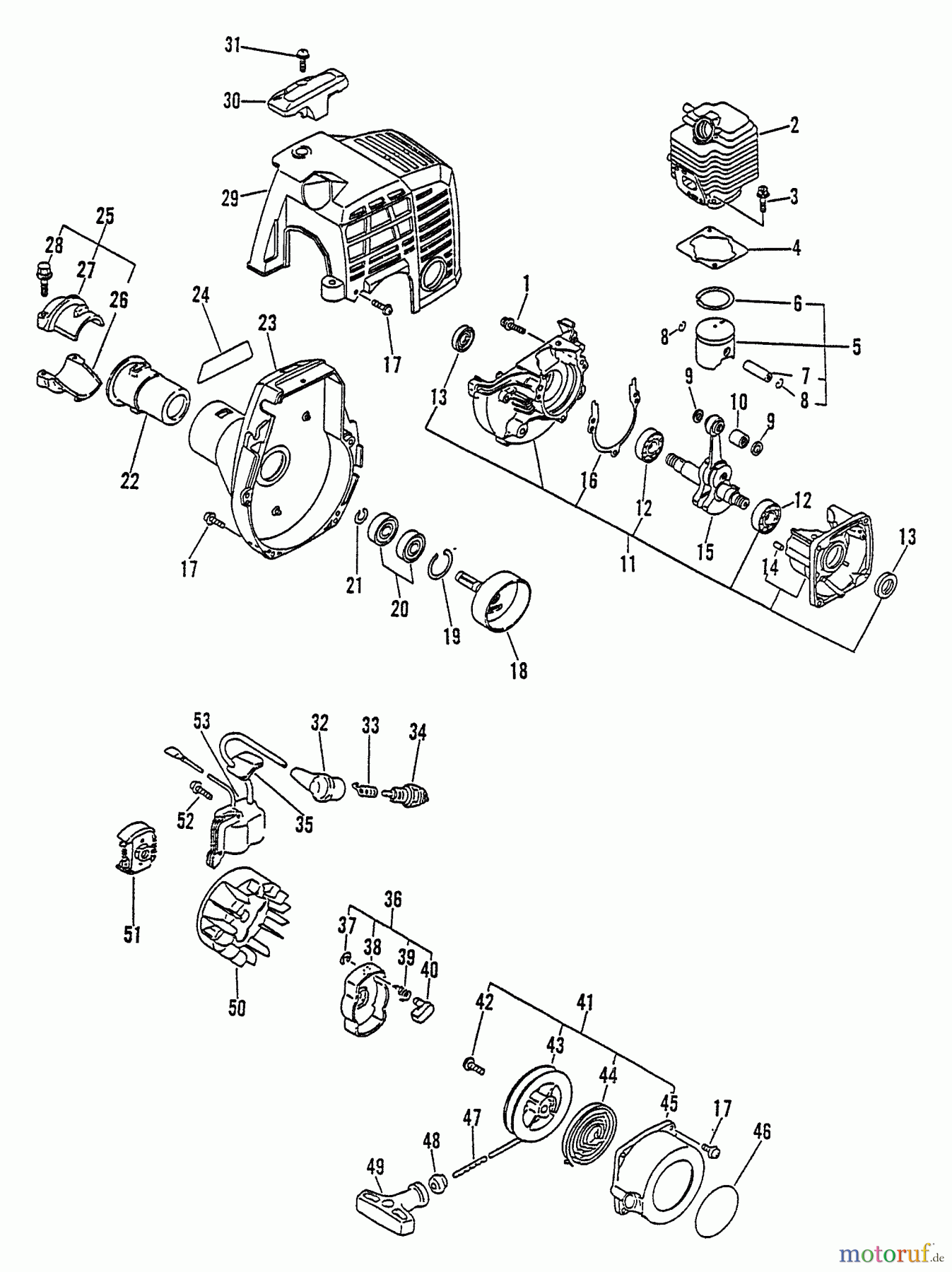

Echo Kantenschneider PE-2400 - Echo Edger, S/N: 008001 - 018099 Engine, Crankcase, Fan Housing, Cover, Starter, Ignition, Clutch

Posizione	Articolo numero	Descrizione
1	16-900162-05028	Schraube SHR-170SI/PB-250/T-
2	16-101011-09560	Zylinder ES-2000/SRM-2450,
3	16-900162-05022	Schraube CS-3500,-3501,SRM-
4	16-101010-44332	Fußdichtung (Papier) SRM-2010/
5	16-100000-52130	Kolben kpl. SRM-2450 ES-2000
6	16-100011-21230	Kolbenring
7	16-100013-11520	Kolbenbolzen SHR-170SI/T-226
8	16-100015-04630	Sicherungsring(Eisen) CS-2600/
9	16-100014-11520	Distanzring(Eisen) SHR-170Si/
10	16-V553-000010	Nadellager CS-2600
11	16-100204-51031	Kurbelgehäuse ES-2000 bis
12	16-94035-36201	Kugellager EA-410/SHR-170SI
13	16-100212-42031	Simmerring/T-226 PB-2400/SRM-
14	16-V622-000020	Stift
15	16-100100-52131	Kurbelwelle SRM-2450
16	16	16
17	16-900163-04016	Schraube
18	16-175005-48931	Kupplungstrommel HCA-2400/2410
19	16-900702-00028	Seegerring, innen, 28mm
20	169405106001
21	16-900701-00012	Seegerring außen 12mm
22	16-610910-27832	Gummilager SRM 2450
23	1610150452130
24	1689011552631
25	16-610903-27432	Gestängehalterung
26	16-610923-27432	Halter
27	16-610922-27432	Halter HCA-2410
28	16-900142-05025	Schraube HCA-2400, PAS-2400,
29	1610151452630
30	1615991248930
31	16-900238-05016	Schraube 5*16
32	16-159012-01620	Zündkerzenkappe SRM-2010, CS-
33	16-159011-03432	Kontaktfeder CS-2600/4200/PB-
34	16-159010-10630	Zündkerze
35	16-156112-40630	Dichtring/T-226
36	16-177202-44330	Starterklinke ES-1000 ab Ser.-
37	16-900700-00004	E-Ring, PB-6000 bis S.-Nr.:
38	16-177210-42030	Halter
39	16-177234-12220	Feder, Starterklinke RM-4000/
40	16-177218-42030	Starterklinke
41	16-177200-42032	Starter kpl.
42	16-177236-44330	Schraube CS-2600/ SRM-320/350/
43	16-177215-44430	Seilscheibe SRM-2305/ES-2100/
44	16-177220-42030	Starterfeder ES-2100/2400/HC-
45	16-177232-42032	Startergehäuse GT-2010 SRM-
46	16X502000190
47	16-177226-05530	Starterseil
48	16-177227-42030	Seilführung ES-2100/2400/HC-
49	16-177228-06530	Startergriff ES-2100/2400/HC-
50	16-156801-44731	Polrad, Schwungmagetzünd. ES-
51	16-175000-56830	Kupplung HCA-2400/2410 SRM-
52	16-900162-04022	Schraube (10)
53	16-156601-44731	Zündmodul SRM-2450/2010/_HC-
	1688900051030
	1699944440000
