Echo PE-2201A - Edger Gear Case Ricambi

• Start
• Echo
• Kantenschneider
• PE-2201A - Echo Edger
• Gear Case

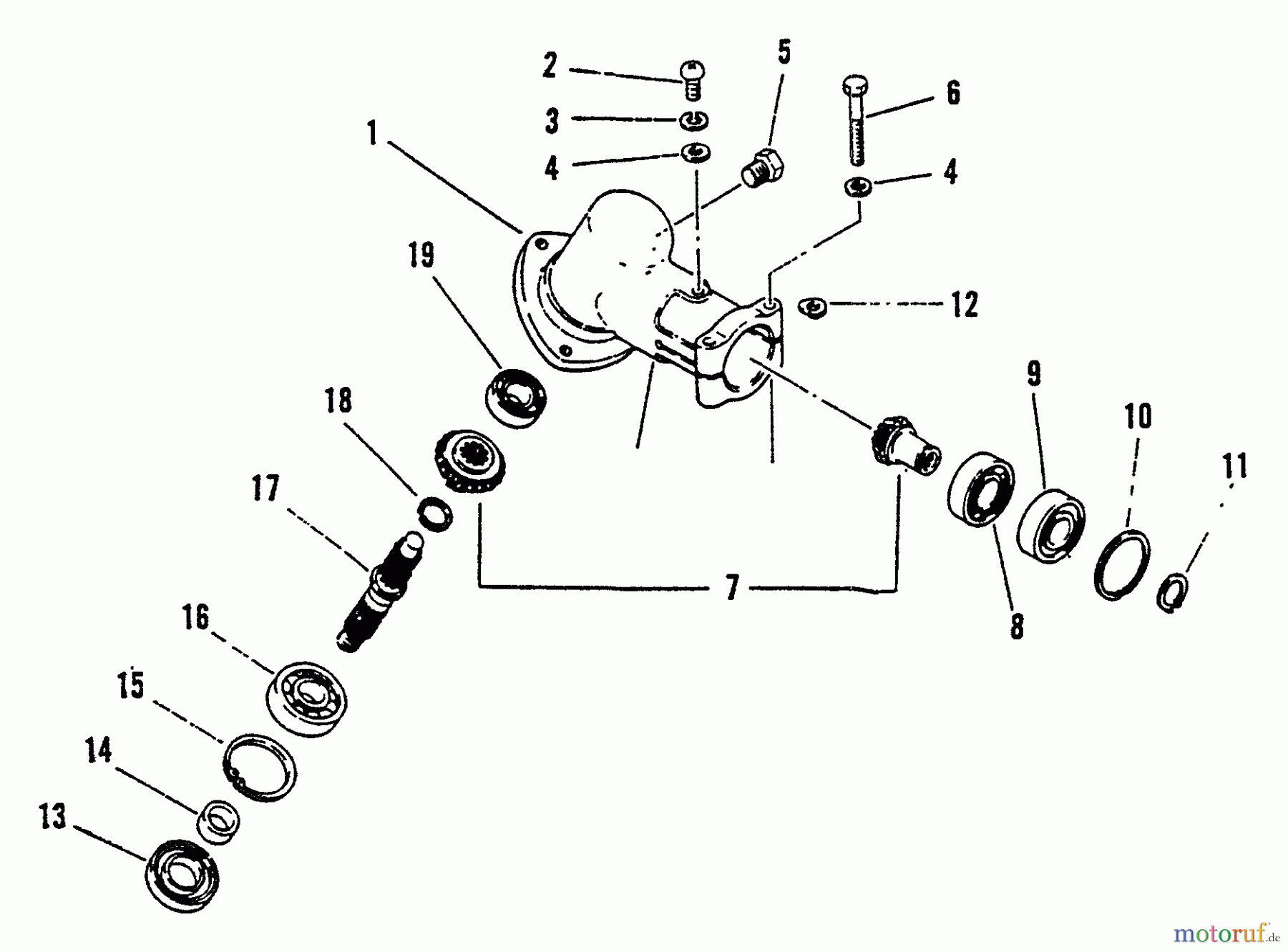

Gear Case PE-2201A - Echo Edger

Posizione		Articolo numero	Descrizione
		1661040252131
1		16	16
2		16-900220-05010	Schraube
3		16-900605-00005	Scheibe PB-250/EC-7600
4		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
5		16-900100-08008	Schraube(Eisen) (10)
6		16-900100-05035	Schraube
7		16-610300-44830	Getriebesatz Anbau-
8		16-900855-06900	Kugellager, NSK (Nippon
9		16-900858-06900	Kugellager,NSK (Nippon Seikkon
10		16-900702-00022	Seegerring, innen, 22mm HCA-
11		16-900706-00012	Haltering PPT-300ES
12		16-610239-04130	Scheibe
13		16-610413-07130	Simmering
14		16-610315-07130	Hülse RM-380, SRM-3150/-3800
15		16-900702-00032	Seegerring, innen, 32mm
16		16-94035-36201	Kugellager EA-410/SHR-170SI
17		16-610360-08931	Antriebsstück
18		16-900706-00010	Haltering
19		16-900800-00609	Kugellager PB-46LN
