Echo ED-2000 - Engine Drill (Type 1) Gear Case, Chuck, Fan Cover, Tools Ricambi

Gear Case, Chuck, Fan Cover, Tools ED-2000 - Echo Engine Drill (Type 1)

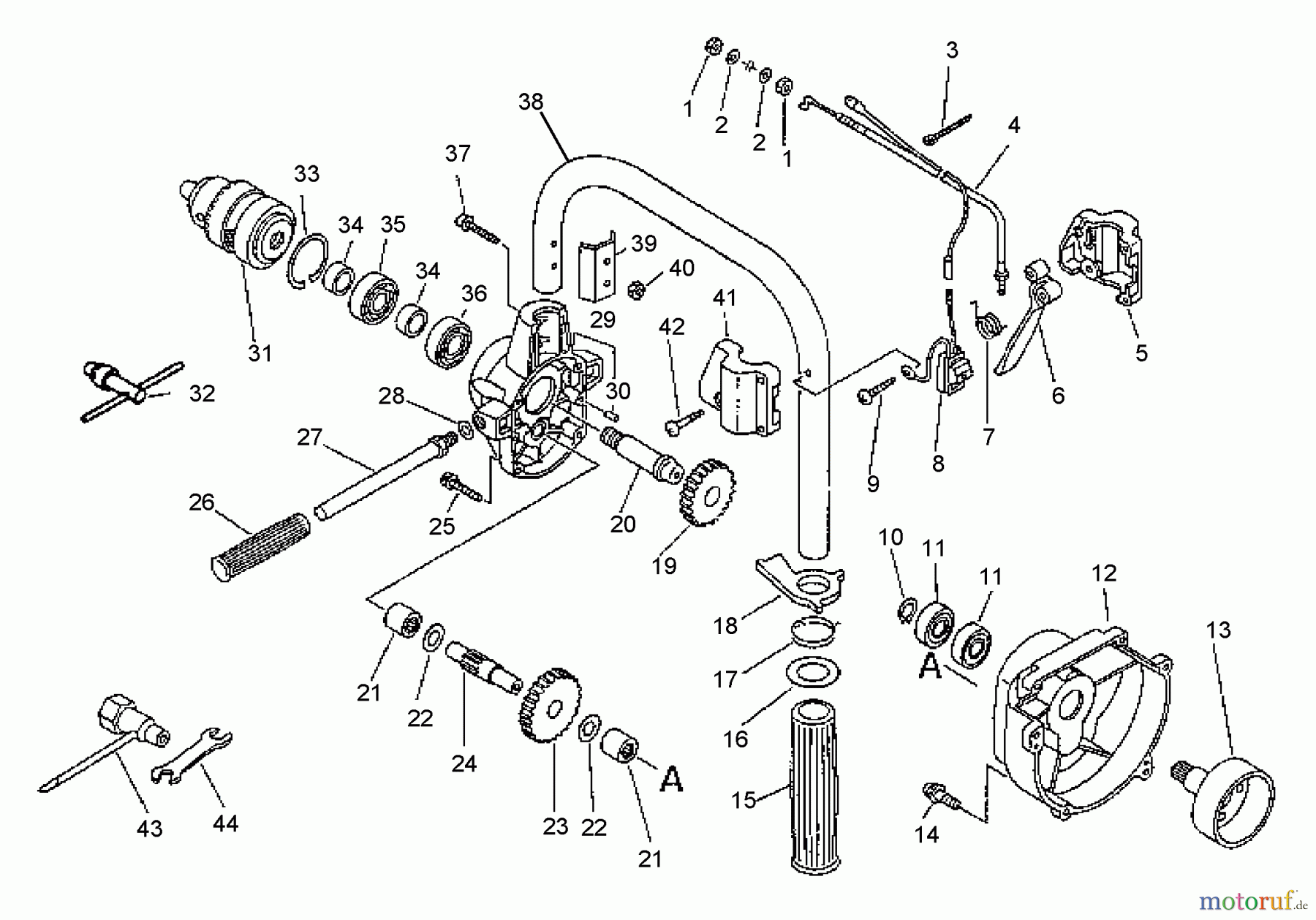

Echo Bohrer / Erdbohrer ED-2000 - Echo Engine Drill (Type 1) Gear Case, Chuck, Fan Cover, Tools
PosizioneArticolo numeroDescrizione
1 16-900502-00006Mutter SRMF-340 6 (3N)
2 16-900600-00006Scheibe
3 1617812156030
4 16-178100-09060Gaszug EDR-2400
5 16-178024-01261Plastikhalter
6 16-178010-07660Gashebel
7 16-178043-01260Feder
8 16-163400-04460Stop-Schalter EDR-2400
9 16-900245-04030Schraube
10 16-900701-00012Seegerring außen 12mm
11 16-900800-36001Kugellager,NSK (Nipppon
12 1610151105560
13 16-175005-05560Kupplungtrommel EDR-1400
14 16-900242-04016Schraube SHR-170SI
15 16-351311-02330Griff SRM-2015,2305,2455,2655,
16 16-178070-02061Distanzring
17 16-178013-02060Feder EDR-2400
18 16-178012-02061Gasfeststeller
19 1660422405560
20 1660404205560
21 16-604221-05560Lager EDR-2400
22 16-604223-05560Scheibe EDR-2400
23 1660420605560
24 1660422605560
25 16-900162-04025Schraube
26 1635131128330
27 16-351210-05560Linker Handgriff EDR-2400
28 16-900600-00010Unterlagscheibe
29 1660431105560
30 16-V622-000020Stift
31 16-604051-05560Bohrfutter EDR-2400
32 16-897570-05560Bohrfutterschlüssel
33 16-900702-00032Seegerring, innen, 32mm
34 16-604044-05560Schraube 4 EDR-2400
35 16-900802-06002Kugellager
36 16-900800-36002Kugellager EDR-2400
37 16-900162-05035Schraube CLS-5010/CS-5501/SRM-
38 1635100005561
39 16-351641-05560Platte EDR-2400
40 16-900560-00005Mutter M5, selbstsichernd (10)
41 16-178052-01261Halterung
42 1690024604025
43 16-895410-39131Kombischlüssel PB-500/PPT-
44 16-895122-20960Spanner EDR-2400
