Echo ED-2000 - Engine Drill (Type 1) Engine, Crankcase, Cover Ricambi

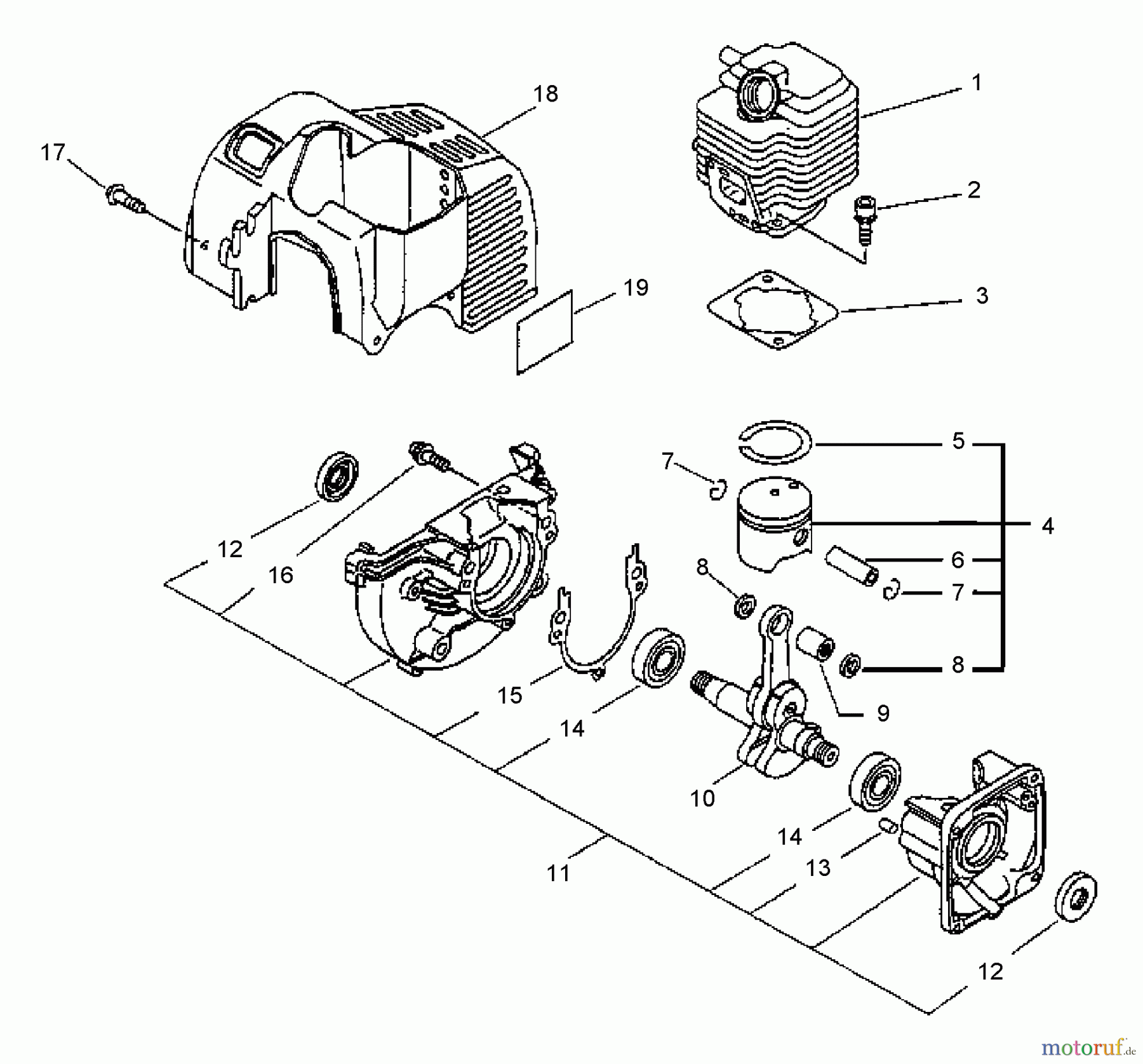

Engine, Crankcase, Cover ED-2000 - Echo Engine Drill (Type 1)

Echo Bohrer / Erdbohrer ED-2000 - Echo Engine Drill (Type 1) Engine, Crankcase, Cover
PosizioneArticolo numeroDescrizione
1 16-101011-45230Zylinder SRM 2010 ES-1000 /HC-
2 16-900162-05022Schraube CS-3500,-3501,SRM-
3 16-101010-44332Fußdichtung (Papier) SRM-2010/
4 16-100000-44331Kolben kpl. SRM 2010/WP1000
5 16-A101-000000Kolbenring GT-2150, EDR-2100
6 16-100013-11520Kolbenbolzen SHR-170SI/T-226
7 16-100015-04630Sicherungsring(Eisen) CS-2600/
8 16-100014-11520Distanzring(Eisen) SHR-170Si/
9 16-V553-000010Nadellager CS-2600
10 16-100100-44331Kurbelwelle kpl. GT-2010
11 16-100204-51031Kurbelgehäuse ES-2000 bis
12 Echo Simmerring/T-226 PB-2400/SRM-16-100212-42031Simmerring/T-226 PB-2400/SRM-
13 16-V622-000020Stift
14 16-94035-36201Kugellager EA-410/SHR-170SI
15 1616
16 16-900162-05028Schraube SHR-170SI/PB-250/T-
17 16-900242-04016Schraube SHR-170SI
18 1610151405561
18 1610151409061
19 1689011405560
1699999999999
1688900044333
16-101010-44332Fußdichtung (Papier) SRM-2010/
1616
16-130010-44431Dichtung (10)
16-V103-001360Dichtung, Ansaugleitung SHR-
16-145866-42031Dichtung HC-2410/SRM-250/GT-
16-V104-000160Dichtung, Auspuff PB-2400, GT-
16-A320-000250Hitzeabweisblech HC-1600/2100/
16-900720-00015O-Ring DH2200ST
