Echo PB-210E - Hand Held Blower (Type 1E) Carburetor Ricambi

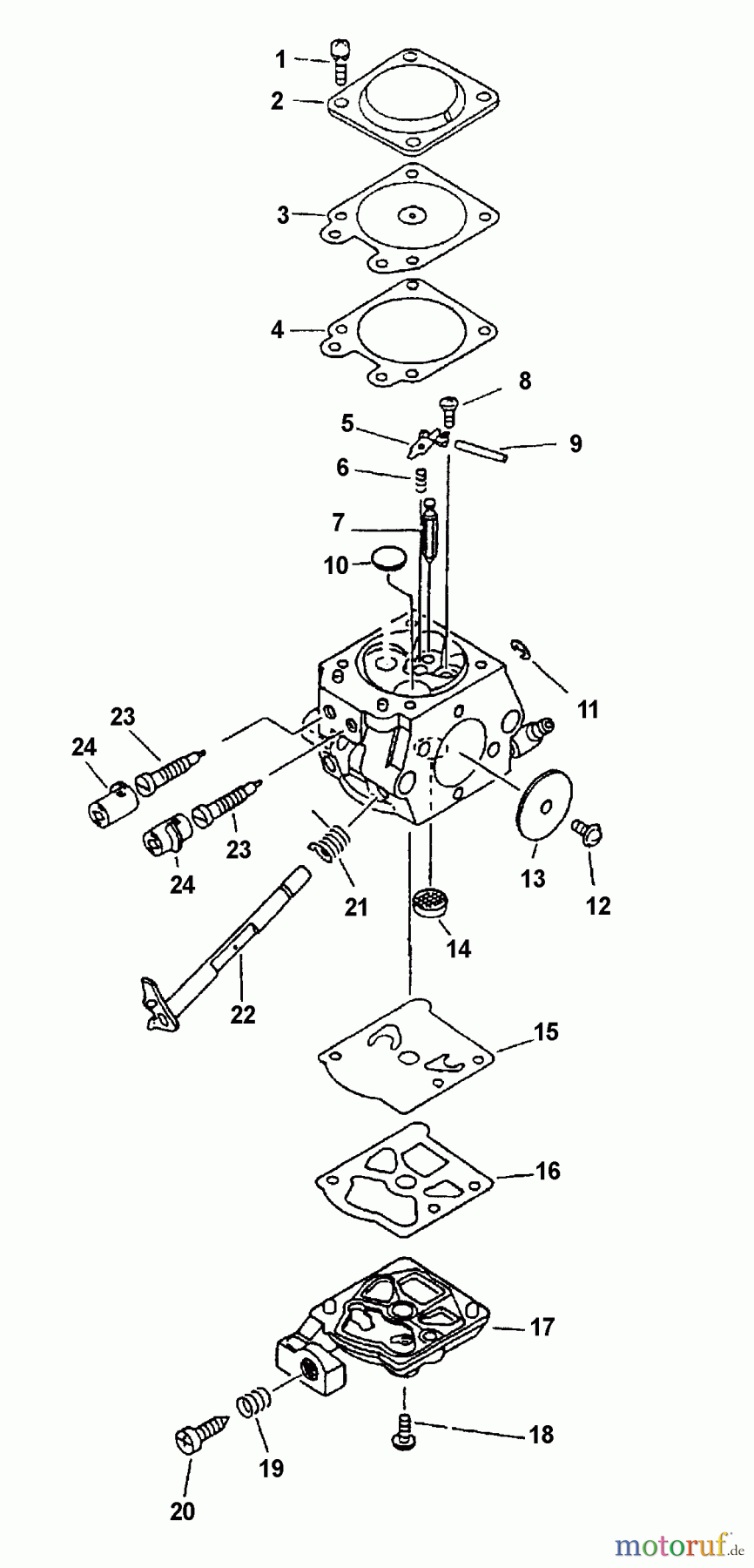

Carburetor PB-210E - Echo Hand Held Blower (Type 1E)

Echo Bläser / Sauger / Häcksler / Mulchgeräte PB-210E - Echo Hand Held Blower (Type 1E) Carburetor
PosizioneArticolo numeroDescrizione
1612300003662
1 16-123130-02960Schraube CS-2600/3700/6702/
2 16-123142-03930Deckel CS-2600/3700/SRM-320/
3 1616
4 1616
5 1616
6 1616
7 1616
8 16-123139-03930Schraube CS-2600/3700/452GS/
9 1616
10 1616
11 16-123127-15030Ring CS-2600/3700/6702/452GS/
12 16-123114-03930Schraube
13 16-123116-05230Scheibe PB-500
14 1616
15 1616
16 1616
17 1612312403660
18 16-123110-03930Schraube CS-2600/3700/452GS/
19 16-123133-11130Feder
20 16-123134-19730Schraube
21 16-123113-09660Feder
22 1612311703660
23 16-123120-03661Einstellschraube, H, CS-3700ES
24 16-P003-000010Einstellbegrenzer, Vergaser
1612310002260
16-123101-37330Membransatz CS-3900
