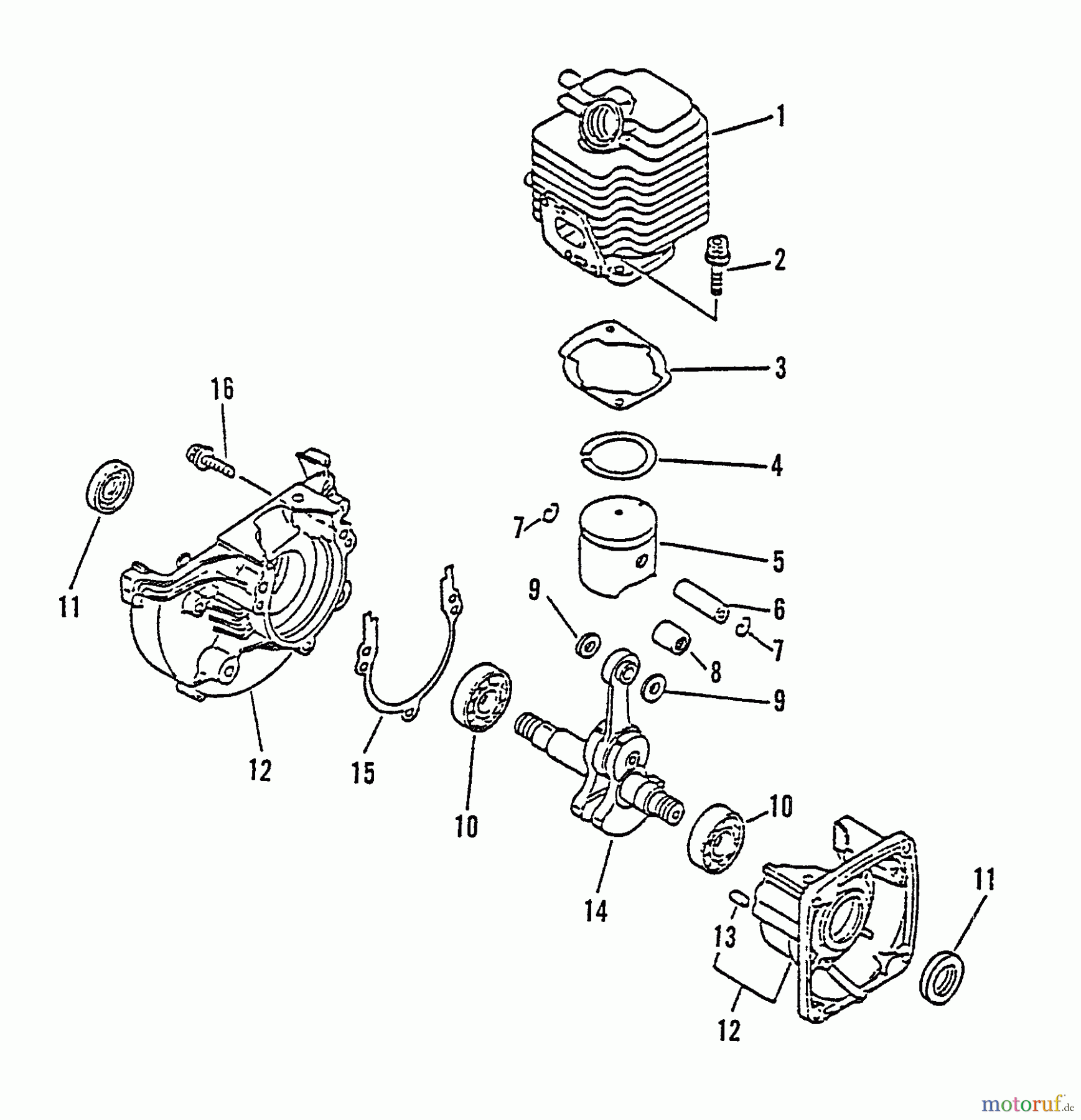

Engine, Crankcase ES-1000 - Echo Shredder/Vacuum, S/N: 001001 - 025416

Posizione		Articolo numero	Descrizione
1		16-101011-45230	Zylinder SRM 2010 ES-1000 /HC-
2		16-900162-05022	Schraube CS-3500,-3501,SRM-
3		16-101010-44332	Fußdichtung (Papier) SRM-2010/
4		16-A101-000000	Kolbenring GT-2150, EDR-2100
5		16-100000-44330	Kolben kpl. SRM 2010 ES-1000/
6		16-100013-11520	Kolbenbolzen SHR-170SI/T-226
7		16-100015-04630	Sicherungsring(Eisen) CS-2600/
8		16-V553-000010	Nadellager CS-2600
9		16-100014-11520	Distanzring(Eisen) SHR-170Si/
10		16-94035-36201	Kugellager EA-410/SHR-170SI
11		16-100212-42031	Simmerring/T-226 PB-2400/SRM-
12		16-100204-51030	Kurbelgehäuse ES-2000
13		16-V622-000020	Stift
14		16-100100-44731	Kurbelwelle
15		16	16
16		16-900162-05028	Schraube SHR-170SI/PB-250/T-
		16SB10011
		1688900005065
		16-130010-05062	Dichtung, Papier
		16-130016-42031	Dichtung(Papier)
		16-145866-42031	Dichtung HC-2410/SRM-250/GT-
		16-V104-000160	Dichtung, Auspuff PB-2400, GT-
		16~NSS
		16-101010-44331	Fußdichtung(Papier)
		16-145871-05760	Abdeckung ES-2000, ES-2400,
