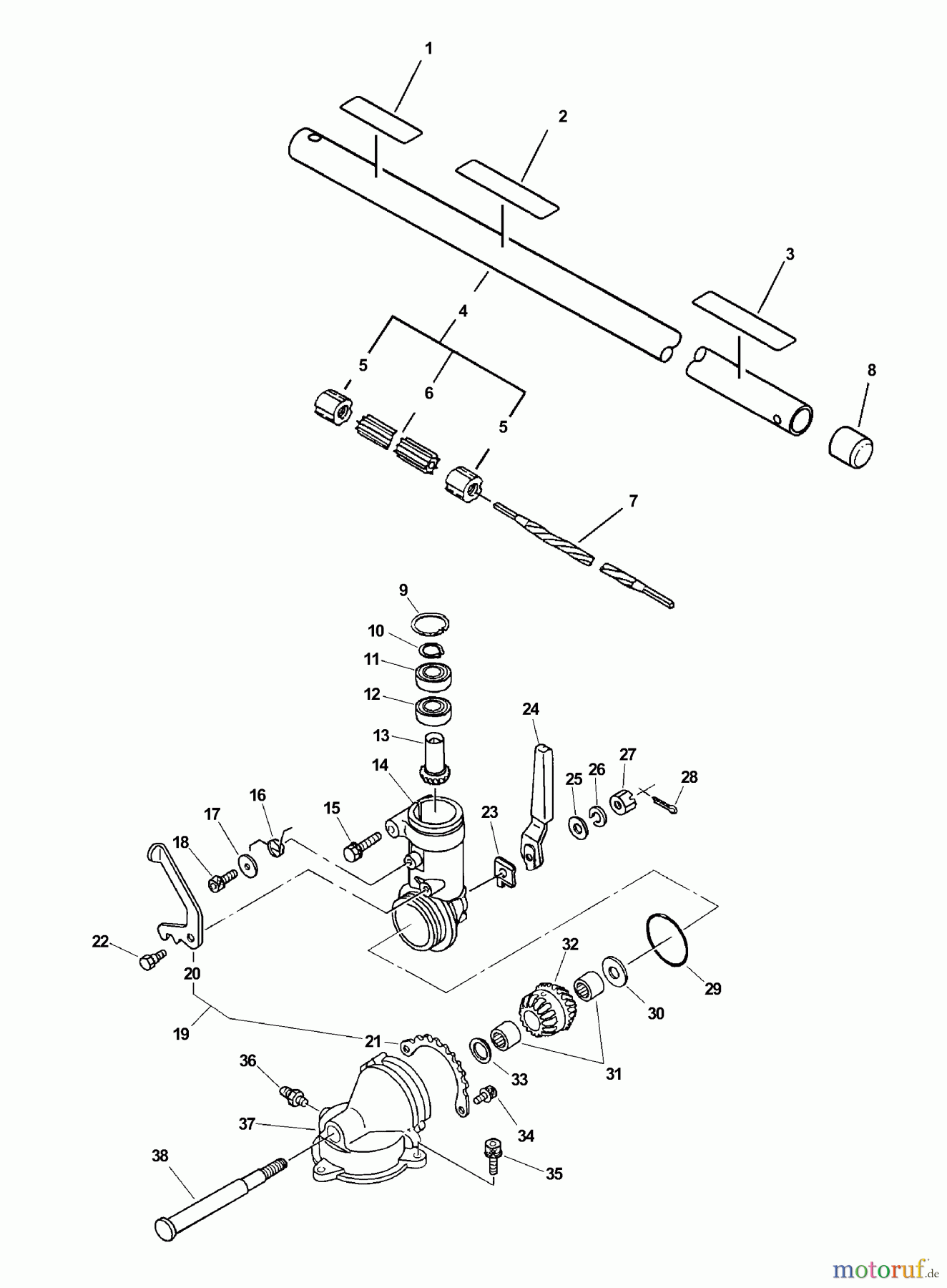

Echo 99944200590 - Articulating Hedge Trimmer Attachment Driveshaft Housing Asy, Articulating Gear Case Ricambi

Driveshaft Housing Asy, Articulating Gear Case 99944200590 - Echo Articulating Hedge Trimmer Attachment

Posizione	Articolo numero	Descrizione
1	1689017854331
2	1689016012360
3	16X505000530
4	16-C050-000061	Gestänge kpl. PAS-2400,
5	16-610246-44730	Führung HCA-2400
6	16-C507-000240	Führung, Welle PAS-Beetfräse
7	16-C506-000002	Welle flexibel,SRM-2100SN,PAS-
8	16-35122-301130	Abdeckkappe. Luftleitung PAS-
9	16-900702-00022	Seegerring, innen, 22mm HCA-
10	16-900706-00010	Haltering
11	16-900858-06900	Kugellager,NSK (Nippon Seikkon
12	16-900855-06900	Kugellager, NSK (Nippon
13	16-610311-12360	Antriebswelle HCA-2400/2410
14	16-610410-12361	Rohrflanschgehäuse HCA-2400
15	16-900142-05035	Schraube(Eisen) (10)
16	16-178013-12360	Einrastfeder HCA-2400/2410
17	16-900603-00005	Scheibe(Eisen) CS-2600/PB-250/
18	16-900162-05014	Schraube M 5x14
19	16-P021-000850	Zahnsegment HCA-2400/2410
20	16-610472-12361	Hebel f.Zahnsegment HCA-2400/
21	16-610470-12361	Zahnsegment HCA-2400/2410
22	16-610474-12360	Schraube HCA-2410
23	16-610478-12361	Anschlag HCA-2400/2410
24	16-190511-12362	Hebel HCA-2400/2410
25	16-403720-07350	Scheibe
26	16-900605-00006	Scheibe SHR-150SI/-170SI
27	16-900529-00006	Mutter HCA-2400/2410
28	16-900300-16016	Splint HCA-2400
29	16-900724-00032	O-Ring HCA-2400
30	16-610350-12360	Scheibe HCA-2410
31	16-100113-11520	Nadellager HCA-2400/2410
32	16-610361-12360	Zahnrad - Winkelgetriebe HCA-
33	16-610317-12460	Scheibe HCA-2400/2410
34	16-900162-04010	Schraube CS-4500,-4000,-6701,-
35	16-900162-05018	Schraube 5x18 (Eisen) PB-500
36	16-880110-10860	Schmiernippel M6 HCA-2410,
37	16-610431-12360	Gehäuse HCA-2400/12360
38	16-610310-12360	Schaft HCA-2400/2410
