Echo 99944200513 - Cultivator Attachment Main Pipe Assembly, Shield Ricambi

• Start
• Echo
• Trimmer Zubehör
• 99944200513 - Echo Cultivator Attachment
• Main Pipe Assembly, Shield

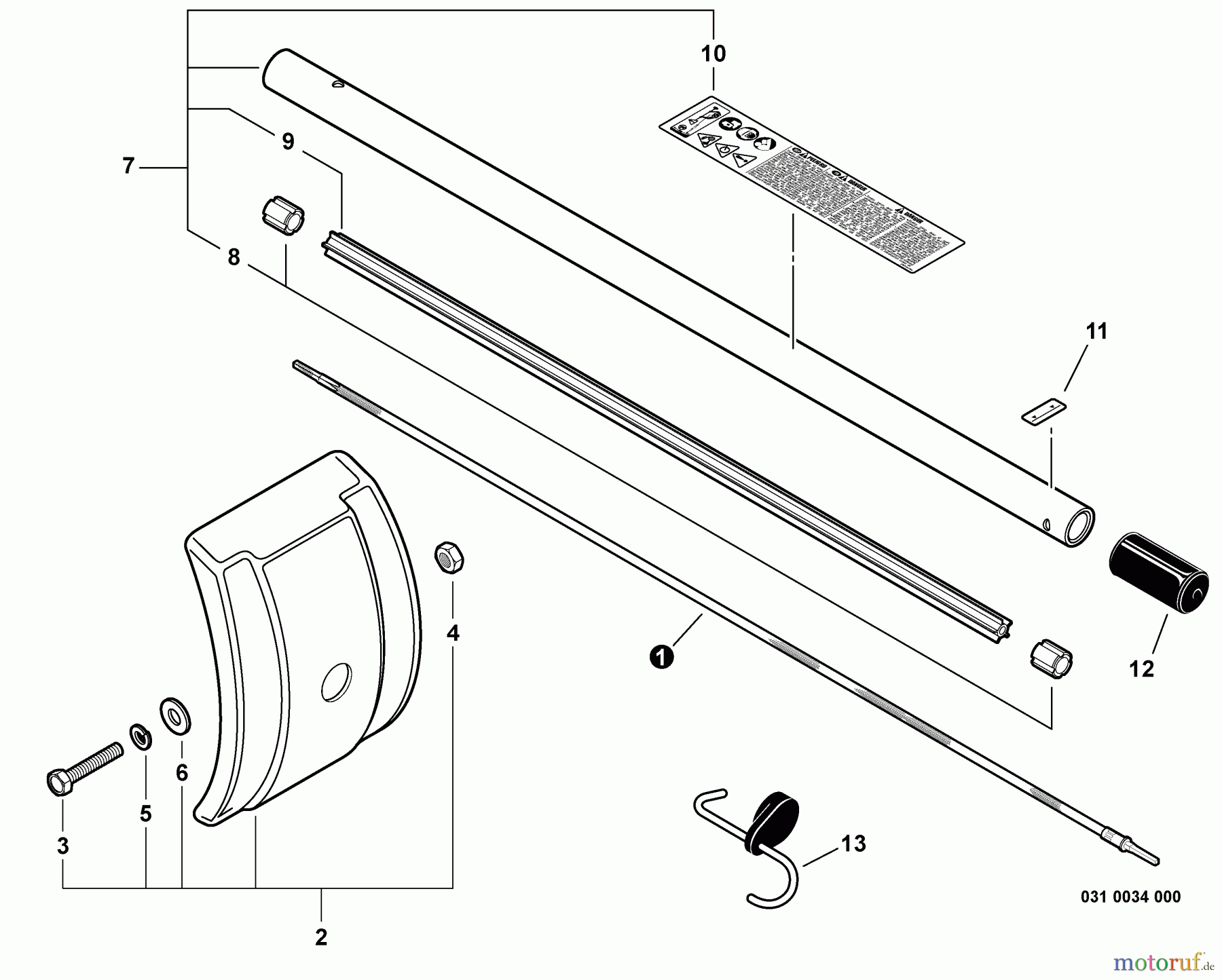

Main Pipe Assembly, Shield 99944200513 - Echo Cultivator Attachment

Posizione		Articolo numero	Descrizione
1		16-C506-000002	Welle flexibel,SRM-2100SN,PAS-
2		16-694000-12050	Schutz SRAC-200, SRAC-2000
3		16-900100-06020	Schraube
4		16-900500-00006	Mutter HC-2400, HCR-1500, PB-
5		16-900605-00006	Scheibe SHR-150SI/-170SI
6		16-900600-00006	Scheibe
7		16C050001050
8		16-610246-44730	Führung HCA-2400
9		16-C507-000240	Führung, Welle PAS-Beetfräse
10		16X505002540
11		16-890152-04930	Aufkleber
12		16-35122-301130	Abdeckkappe. Luftleitung PAS-
13		1699944200631
