Echo 900113 - Hip Mount Throttle Kit 900113 Hip Throttle Kit Ricambi

900113 Hip Throttle Kit 900113 - Echo Hip Mount Throttle Kit

Echo Zubehör / Bläser / Sauger / Häcksler 900113 - Echo Hip Mount Throttle Kit 900113 Hip Throttle Kit

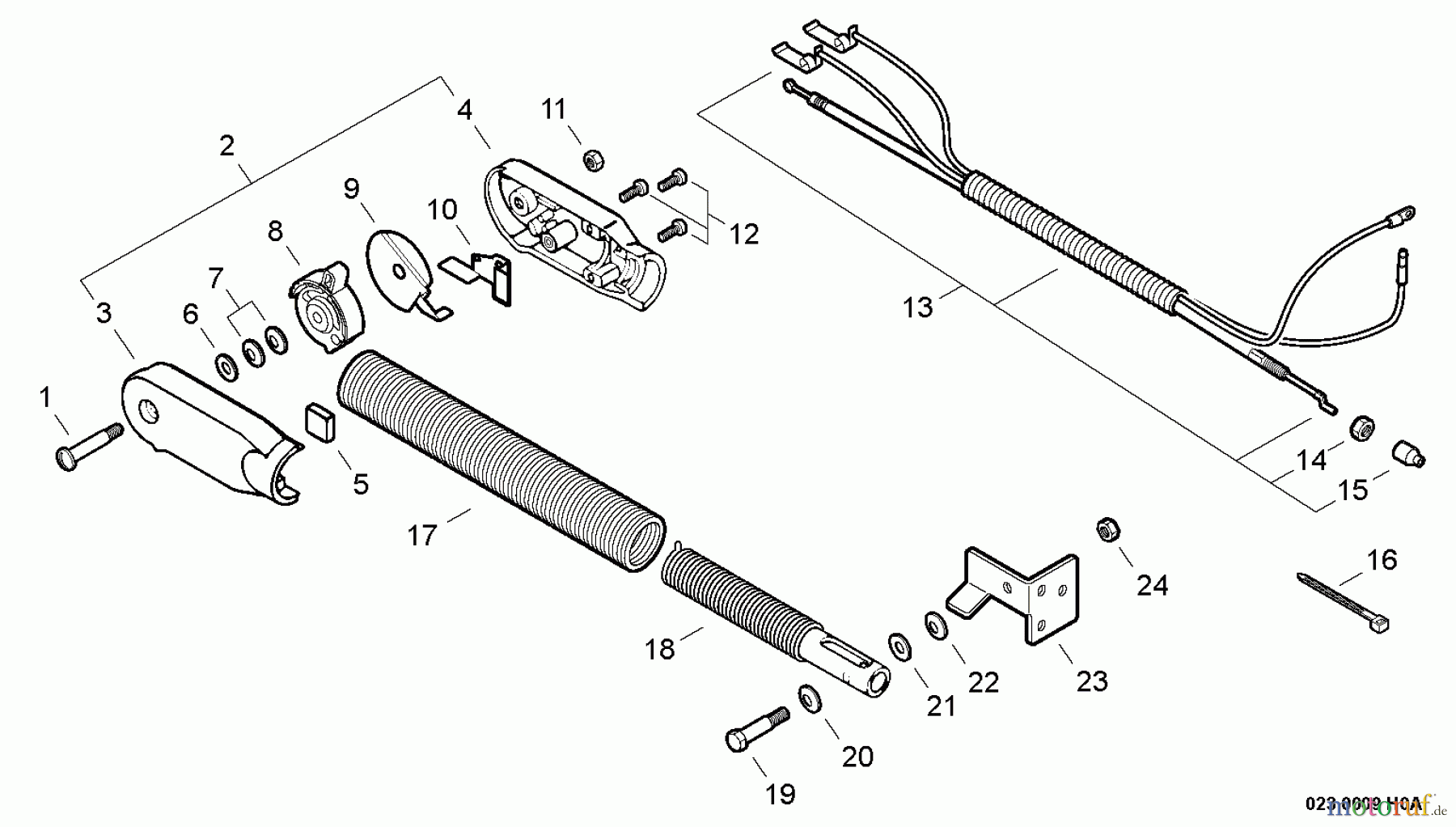

PosizioneArticolo numeroDescrizione
1 16-604030-21060Schraube 4
2 16-P021-003010Griff-SET (beide Hälften) PB-
3 16-C471-000050Griffhälfte, links PB-260L/
4 16-C471-000060Griffhälfte, rechts PB-260L/
5 16-104293-21060Dichtung, Schaumstoff, Griff
6 16-699118-04560Scheibe 15,5x6,5x0,7mm HC-2410
7 16-178160-21060Scheibe, Sicherung, Griff PB-
8 16-C453-000021Gashebel PB-260L
9 16V486000140
10 16V486000130
11 16-900560-00004Mutter, selbstsichernd
12 16-889950-21060Schraube 5 PB-500
13 16V043000240
14 16-900500-00006Mutter HC-2400, HCR-1500, PB-
15 16-178082-08260Stopfen
16 16-178121-43230Band PB-500
17 16-V475-000910Rohr, flexiebel PB-260L
18 16-V475-000920Arm flexiebel PB-260L
19 16-432617-21060Schraube PB-260L/260LSI
20 1670101721061
21 16-694029-21060Scheibe, Griff PB-260L
22 16-178129-21060Scheibe, gewellt PB-260L
23 16-C625-000000Halterung, flexiebles Rohr PB-
24 16-900030-10008Mutter PB-260L
