Cub Cadet SC 100 11A-A92J710 (2016) Deflector, Deck housing, Mulching flap, Rear baffle, Washer nozzle Ricambi

Deflector, Deck housing, Mulching flap, Rear baffle, Washer nozzle 11A-A92J710 (2016)

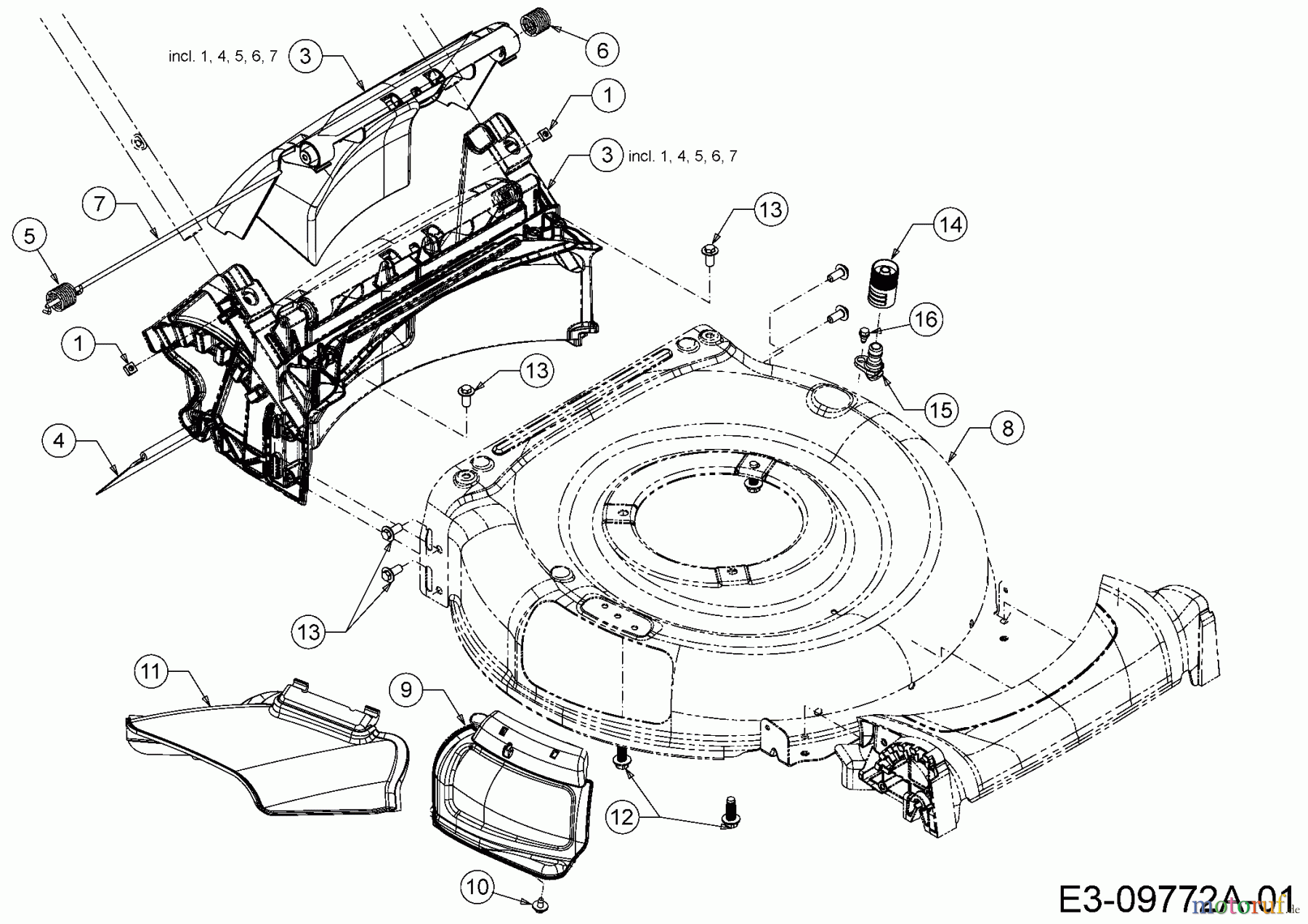

Cub Cadet Petrol mower SC 100 11A-A92J710 (2016) Deflector, Deck housing, Mulching flap, Rear baffle, Washer nozzle
PosizioneArticolo numeroDescrizione
1 712-04222SQUARE NUT
3 631-04369ABAFFLE REAR
4 731-07203TRAILSHIELD
5 732-05061ATORSION SPRING RH
6 732-05062ATORSION SPRING LH
7 747-05183Base pin
8 787-01874C
9 687-02516APLUG MULCH HINGED
10 Cub Cadet SCREW 1/4-20X.50710-05073SCREW 1/4-20X.50
11 731-07131SIDE DISCHARGE FLAP
12 Cub Cadet SCR.TT:3/8-16:1.000:HEXINDWSH710-04683CSCR.TT:3/8-16:1.000:HEXINDWSH
13 710-04995A
14 721-04041ADAPER:WATER NOZZLE
15 731-07487NOZ:DECK WSH
16 Cub Cadet SCR:SHLDR:1/4-20:0.50:HXINDWSH738-04502SCR:SHLDR:1/4-20:0.50:HXINDWSH
