Toro 74802 (19-52ZX) - 19-52ZX TimeCutter ZX Riding Mower, 2004 (240000001-240000158) RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708 Ricambi

• Start
• Toro Neu
• Mowers, Zero-Turn
• 74802 (19-52ZX) - Toro 19-52ZX TimeCutter ZX Riding Mower, 2004 (24000
• RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708

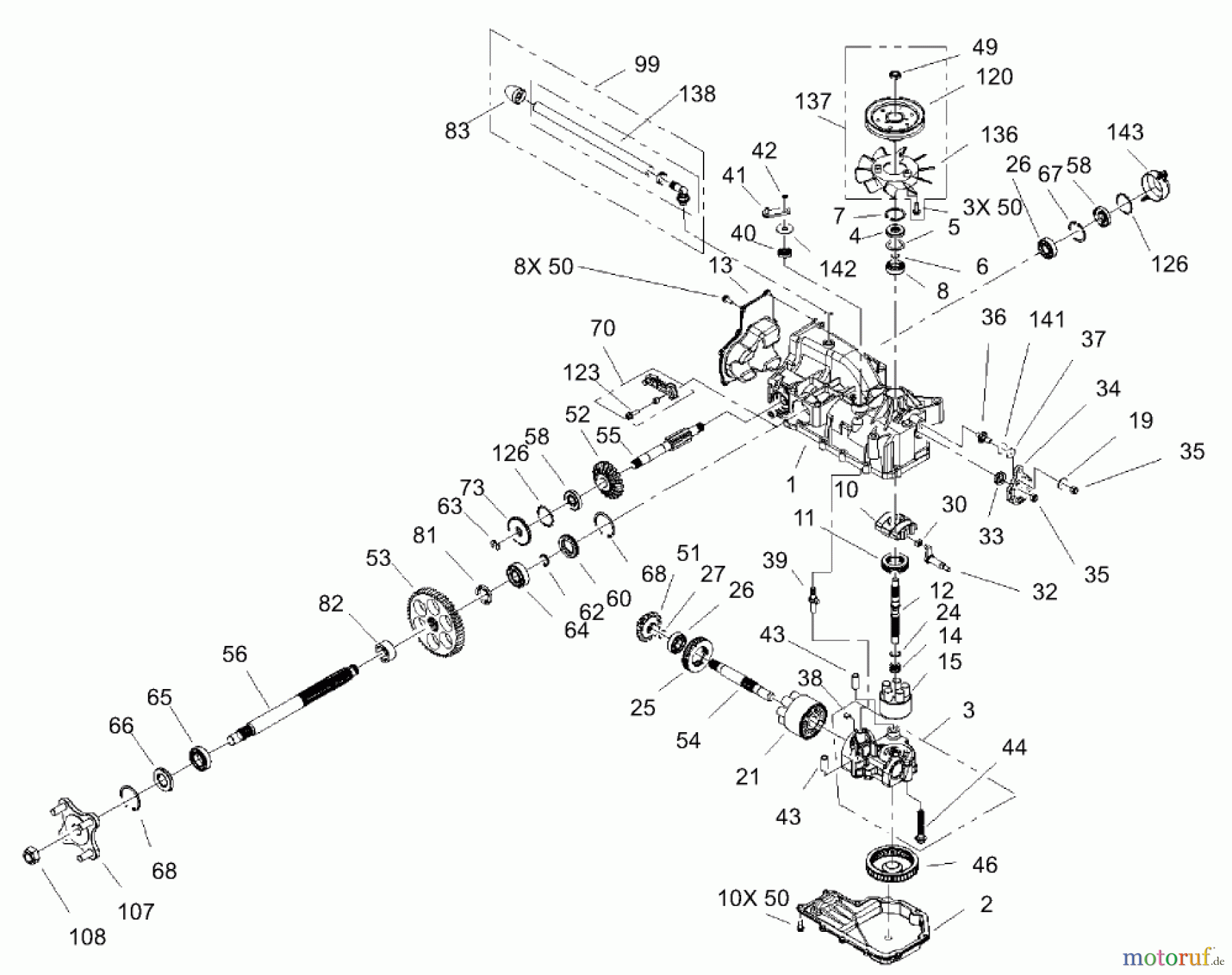

RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708 74802 (19-52ZX) - Toro 19-52ZX TimeCutter ZX Riding Mower, 2004 (240000001-240000158)

Posizione		Articolo numero	Descrizione
1		TR107-1700	MAIN HOUSING KIT
2		TR105-1868	DECKEL
3		TR105-1869	MITTELSTUECK
4		TR92-6543	Simmerring
5		TR104-2104	SPACER
6		TR94-1902	Dichtriing
7		TR94-1903	Seegerring
8		TR94-1904	Kugellager
10		TR94-1907	STEUERSCHEIBE
11		TR94-6922	BEARING-THRUST
12		TR104-5067	SHAFT-INPUT
13		TR105-1870	Abdeckung
14		TR94-1936	SPRING-BLOCK
15		TR104-2106	ZYLINDERBLOCK
19		TR5-4460	Scheibe
21		TR94-1913	Kolben
24		TR94-1937	SCHEIBE
25		TR94-6923	LAGERRING
26		TR104-5311	Kugellager
27		TR104-5307	RING-RETAINING
30		TR94-1910	Schaltstein
31		TR104-2112	Bolzen
33		TR92-6544	SEAL-LIP
34		TR105-1871	SCHALTARM
35		TR105-1872	NUT
36		TR104-2116	STEHBOLZEN
37		TR105-1873	SCHEIBE
38		TR94-6925	VENTILPLATTE
39		TR94-1914	VENTIL
40		TR92-6545	Simmerring
41		TR104-2117	ARM
42		TR936109	Sicherungsring
43		TR94-1927	STIFT
44		TR94-6926	BOLZEN
46		TR105-1874	Filter
49		TR105-1875	NUT-LOCK
50		TR104-2120	SCHRAUBE
51		TR105-1876	KEGELRAD
52		TR105-1877	KEGELRAD
53		TR105-1878	GEAR-BEVEL, 53T
54		TR105-1879	WELLE
55		TR105-1880	Bremswelle
56		TR105-1881	ACHSWELLE
58		TR104-5310	SEAL-LIP
60		TR105-1882	Simmerring
62		TR105-1883	Seegerring
63		TR105-1884	Seegerring
64		TR105-1885	BEARING-BALL
65		TR105-1886	Kugellager
66		TR105-1887	Simmerring
67		TR104-5309	Seegerring
68		TR105-1888	RING-RETAINING, AXLE
70		TR105-1910	Bremse Rechts
73		TR105-1890	Bremsscheibe
81		TR105-1891	Achsbuechse
82		TR105-1892	105-1891
83		TR107-1701	CAP VENT ASM
99		TR107-1702	BREATHER KIT
100		TR104-2147	Dichtungsmasse
107		TR105-1894	Nabe
108		TR105-1895	NUT
120		TR105-1896	121-5729
123		TR107-1703	SCREW-HHF
126		TR105-1898	RING-RETAINING
134		TR105-1899	Dichtungssatz
136		TR105-1927	121-5729
137		TR105-1928	Luefterkit
138		TR107-1704	HOSE/FITTING ASM
141		TR107-1705	WASHER
142		TR107-1706	WASHER
143		TR107-1707	COVER-BRAKE, PLASTIC
