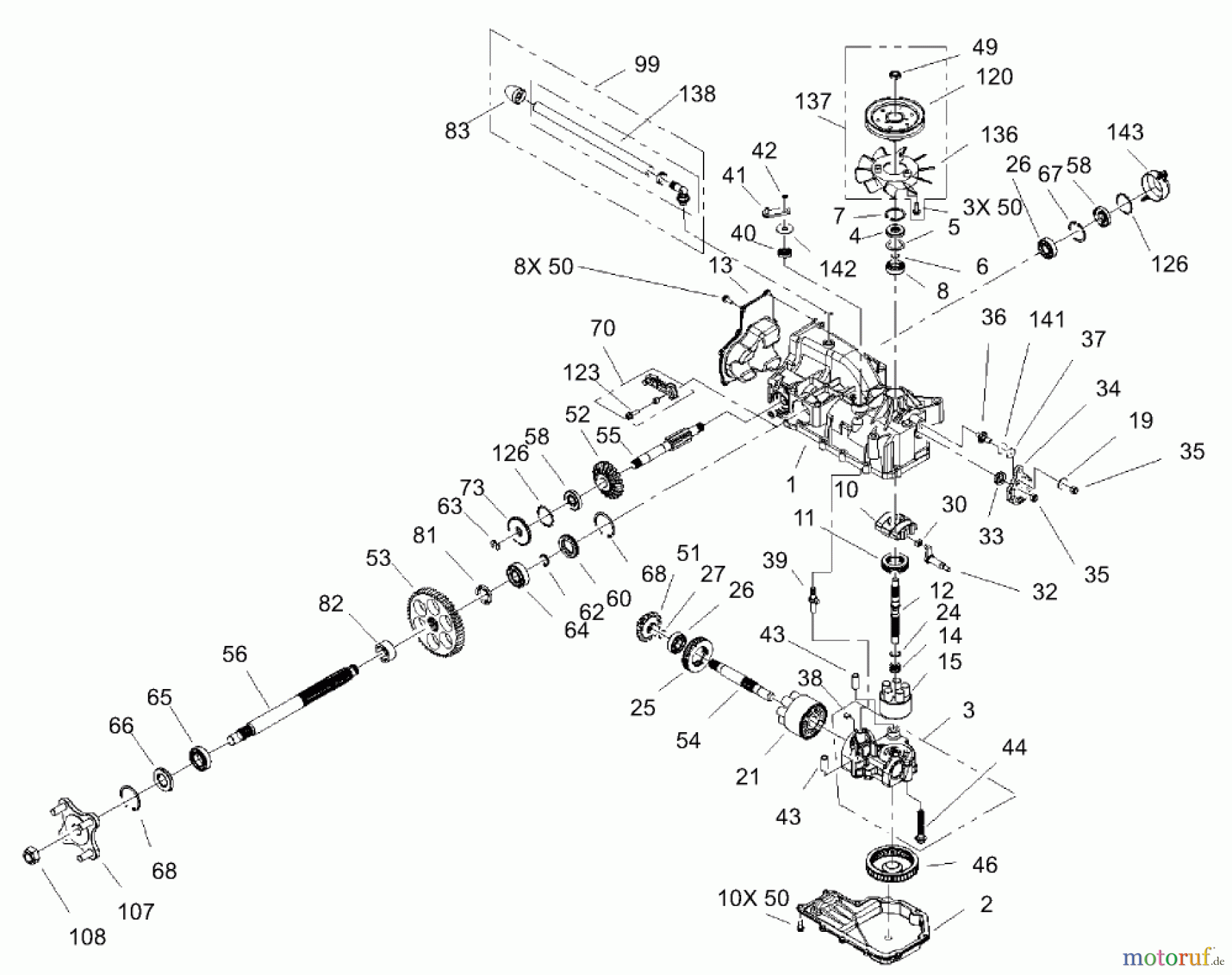

Toro 74602 (18-44ZX) - 18-44ZX TimeCutter ZX Riding Mower, 2004 (240000001-240999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708 Ricambi

RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708 74602 (18-44ZX) - Toro 18-44ZX TimeCutter ZX Riding Mower, 2004 (240000001-240999999)

Toro Neu Mowers, Zero-Turn 74602 (18-44ZX) - Toro 18-44ZX TimeCutter ZX Riding Mower, 2004 (240000001-240999999) RH HYDRO TRANSAXLE ASSEMBLY NO. 107-1708
PosizioneArticolo numeroDescrizione
1 TR107-1700MAIN HOUSING KIT
2 TR105-1868DECKEL
3 TR105-1869MITTELSTUECK
4 TR92-6543Simmerring
5 TR104-2104SPACER
6 TR94-1902Dichtriing
7 TR94-1903Seegerring
8 TR94-1904Kugellager
10 TR94-1907STEUERSCHEIBE
11 TR94-6922BEARING-THRUST
12 TR104-5067SHAFT-INPUT
13 TR105-1870Abdeckung
14 TR94-1936SPRING-BLOCK
15 TR103-2666CYLINDER BLOCK KIT
19 TR5-4460Scheibe
21 TR94-1913Kolben
24 TR94-1937SCHEIBE
25 TR94-6923LAGERRING
26 TR104-5311Kugellager
27 TR104-5307RING-RETAINING
30 TR94-1910Schaltstein
31 TR104-2112Bolzen
33 TR92-6544SEAL-LIP
34 TR105-1871SCHALTARM
35 TR105-1872NUT
36 TR104-2116STEHBOLZEN
37 TR105-1873SCHEIBE
38 TR94-6925VENTILPLATTE
39 TR94-1914VENTIL
40 TR92-6545Simmerring
41 TR104-2117ARM
42 TR936109Sicherungsring
43 TR94-1927STIFT
44 TR94-6926BOLZEN
46 TR105-1874Filter
49 TR105-1875NUT-LOCK
50 TR104-2120SCHRAUBE
51 TR105-1876KEGELRAD
52 TR105-1877KEGELRAD
53 TR105-1878GEAR-BEVEL, 53T
54 TR105-1879WELLE
55 TR105-1880Bremswelle
56 TR105-1881ACHSWELLE
58 TR104-5310SEAL-LIP
60 TR105-1882Simmerring
62 TR105-1883Seegerring
63 TR105-1884Seegerring
64 TR105-1885BEARING-BALL
65 TR105-1886Kugellager
66 TR105-1887Simmerring
67 TR104-5309Seegerring
68 TR105-1888RING-RETAINING, AXLE
70 TR105-1910Bremse Rechts
73 TR105-1890Bremsscheibe
81 TR105-1891Achsbuechse
82 TR105-1891Achsbuechse
83 TR107-1701CAP VENT ASM
99 TR107-1702BREATHER KIT
100 TR104-2147Dichtungsmasse
107 TR105-1894Nabe
108 TR105-1895NUT
120 TR121-5729FAN PULLEY KIT
123 TR107-1703SCREW-HHF
126 TR105-1898RING-RETAINING
134 TR105-1899Dichtungssatz
136 TR105-1927121-5729
137 TR105-1928Luefterkit
138 TR107-1704HOSE/FITTING ASM
141 TR107-1705WASHER
142 TR107-1706WASHER
143 TR107-1707COVER-BRAKE, PLASTIC
