Toro 74601 (Z17-44) - Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999) 44 INCH DECK BELT DRIVE AND LIFT ASSEMBLY Ricambi

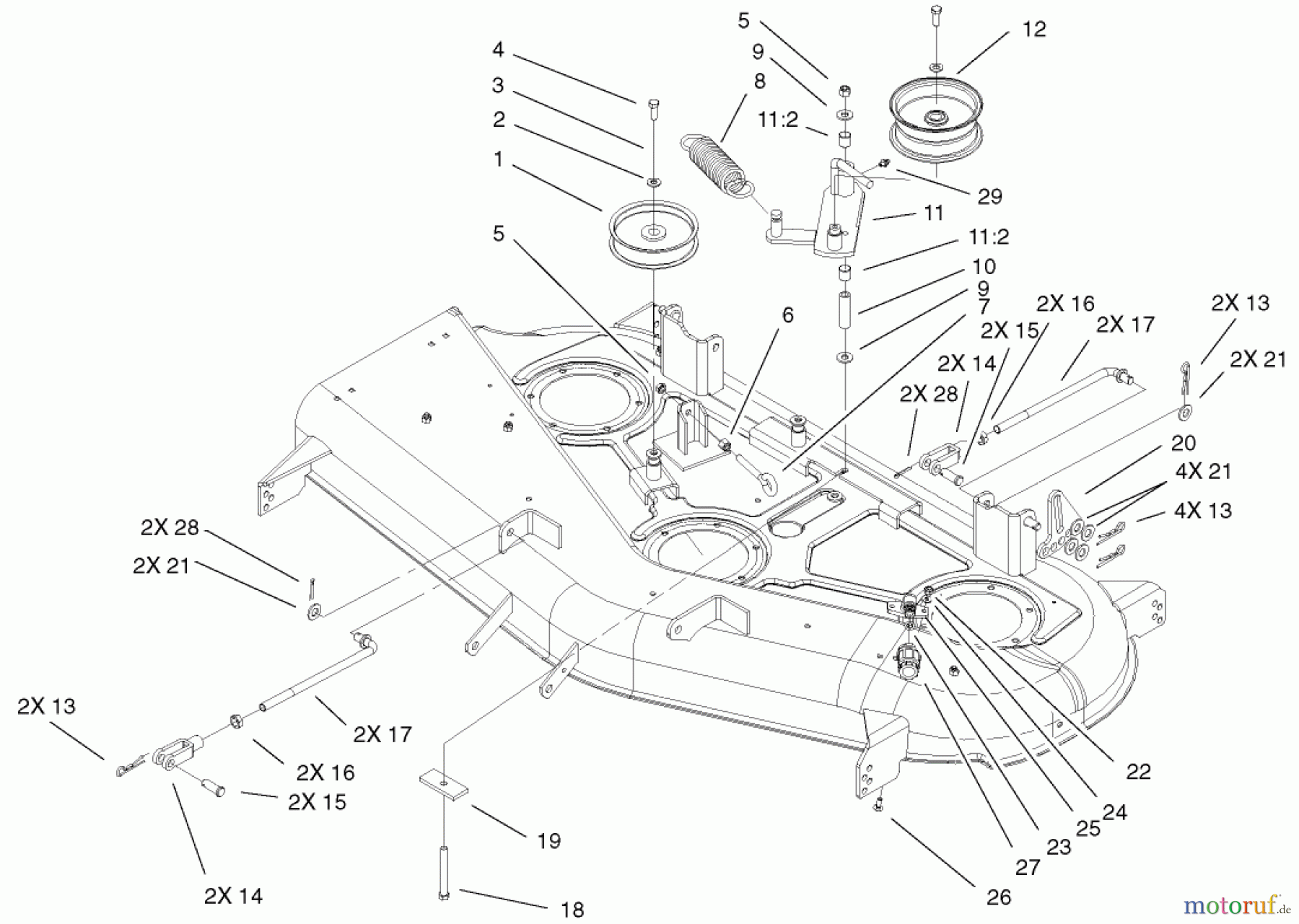

44 INCH DECK BELT DRIVE AND LIFT ASSEMBLY 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999)

Toro Neu Mowers, Zero-Turn 74601 (Z17-44) - Toro Z17-44 TimeCutter Z Riding Mower, 2001 (210000001-210999999) 44 INCH DECK BELT DRIVE AND LIFT ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR1-613098PULLEY-IDLER
2 Toro WASHER-FLATTR3256-24WASHER-FLAT
3 TR98-5975Wellenscheibe
4 TR323-6Schraube
5 TR32-9639
6 TR3217-7Mutter
7 TR94-2547BOLT-EYE
8 TR116-6317SPRING-EXTENSION
9 TR1-809107Scheibe
10 TR1-603384Buechse
11 TR99-3879IDLER ARM ASM
11:2 TR1-513034Buechse
12 TR116-4666IDLER-PULLEY, FLAT
13 TR1-806005PIN-HAIR
14 TR100-7338Einstellgabel
15 TR104-3634PIN-CLEVIS
16 TR3220-5Mutter
17 TR104-8047Gestaenge
18 TR1-800805Schraube
19 TR104-8037-01PLATE-BOLT RETAINER
20 TR104-3699-01Einstellplatte
21 TR3256-26WASHER-FLAT
22 TR3296-16Mutter
23 TR46-6290O-RING, SEAL
24 TR3256-1SCHEIBE F. KLEMME
25 TR95-2747FITTING-WASHOUT
26 TR3229-1Schraube
27 TR95-3270SCHLAUCHFITTING
28 TR3272-10PIN-COTTER
29 TR302-19NIPPEL
