Snapper LT2246 (2691145-00) - 46" Lawn Tractor, 22 HP, Hydro Drive, RMO, LT9500 Series Seat & Seat Deck Group - EVAP Compliant Ricambi

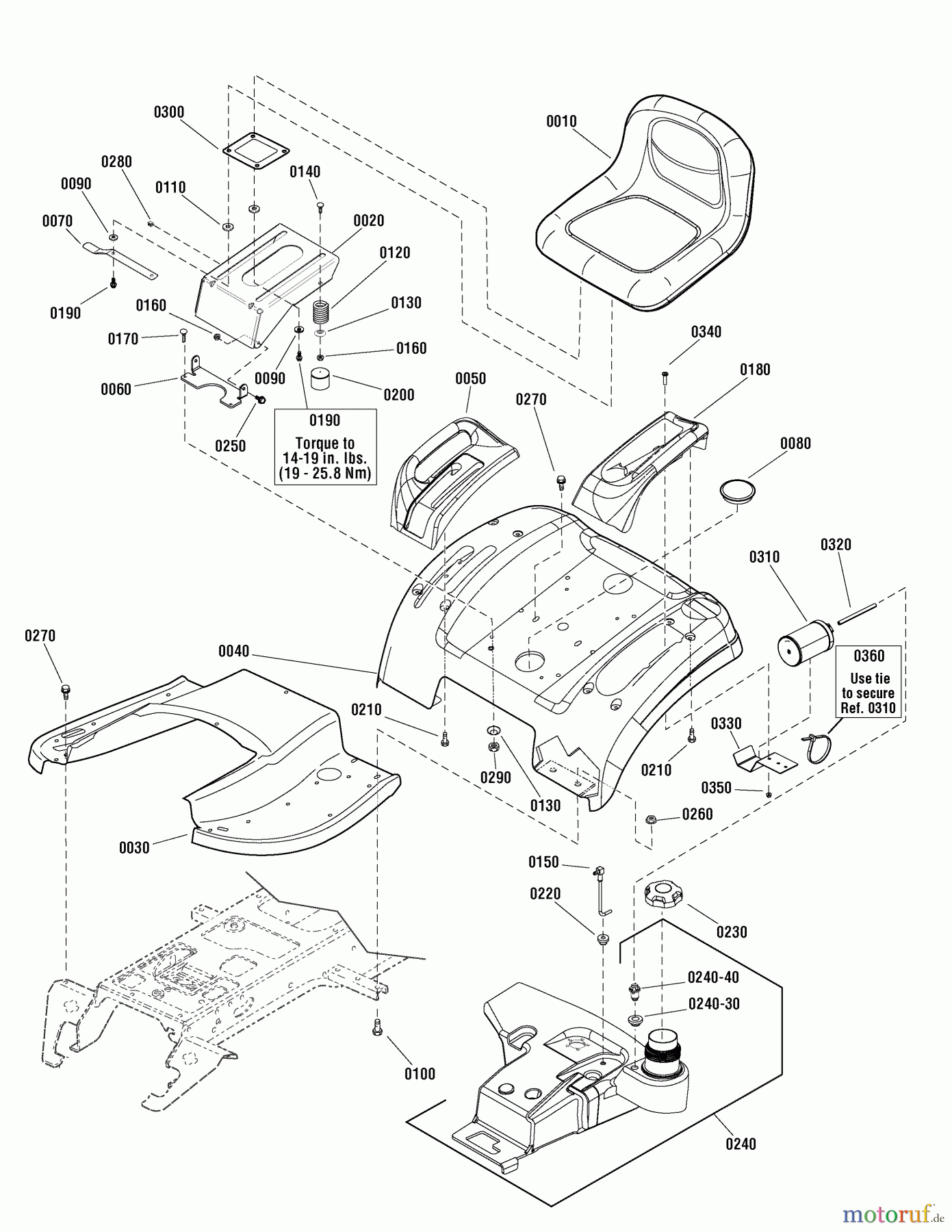

Seat & Seat Deck Group - EVAP Compliant LT2246 (2691145-00) - Snapper 46" Lawn Tractor, 22 HP, Hydro Drive, RMO, LT9500 Series

Snapper Rasen- und Gartentraktoren LT2246 (2691145-00) - Snapper 46
PosizioneArticolo numeroDescrizione
0010 BS1752062YPSEAT ASSEMBLY
0020 BS1727265SMSITZHALTERUNG
0030 BS1722105ZYPTUNNEL
0040 BS1722106ZYPDECK, SITZ
0050 BS1722108SMPOD-RH BLACK POL
0060 BS1738233AYPSUPPORT, SEAT PIVOT
0070 BS1727268SMSITZVERSCHl 20 GA RE.
0080 BS1722309SMSTOPFEN 3.00 DI
0090 BS703298U-SCHEIBE, GR5, 5/16
0100 BS1930591SMSCREW-HEX WZ LOCK FLN
0110 BS1731300SMDISTANZRING-0.320IDX1.2500
0120 BS1704728SMAUSGL.FEDER 1.593IDX
0130 BS1709256SMFEDERSCHEIBE 0.328I
0140 BS1960282SMBOLZEN
0150 BS1726902SMTUBE & ELBOW ASMY-FUE
0160 BS1960686SMNUT, HEX
0170 BS704065BOLT, 5/16-18X.875
0180 BS1729711SMPOD W/CUP HOLDER,12V
0190 BS1930595SMSCHRAUBE SELBSTSICHERND
0200 BS1704724SMABDECKUNG FEDER 2.00ID 1
0210 BS2860664SMSCHRAUBE
0220 BS1654930SMVENTILDECKEL
0230 BS5103005YPCAP, FUEL, EVAP
0240 BS1751622YPTANK, FUEL
0240-30 BS799624KABELTULLE
0240-40 BS7104638YPREMOTE VENT ASSEMBLY
0250 BS1729576SMBOLZEN 5/16-18 1.
0260 Snapper MUTTER, 5/16-18, GR5BS703409MUTTER, 5/16-18, GR5
0270 BS703949SCHRAUBE, 5/16-18.625
0280 BS2172434SMKABELCLIP DIA .390
0290 BS1919438SM
0300 BS1739571AYPSPACER PLATE (BLACK)
0310 BS1751599YPCARBON CANISTER 300CC
0320 BS7700552X5YPHOSE, VAPOR
0330 BS1752099AYPBRACKET, CANISTER
0340 BS1960589SMSCREW-RD HD PHILLIPS
0350 BS1960591SMNUT-HEX KEPS #10-24 B
0360 BS1701011SMTIE, SELF LOCKING .18
