Snapper PMA7482 - 48" Pro Deck Attachment, Series 2 48" Mower Deck Assembly Ricambi

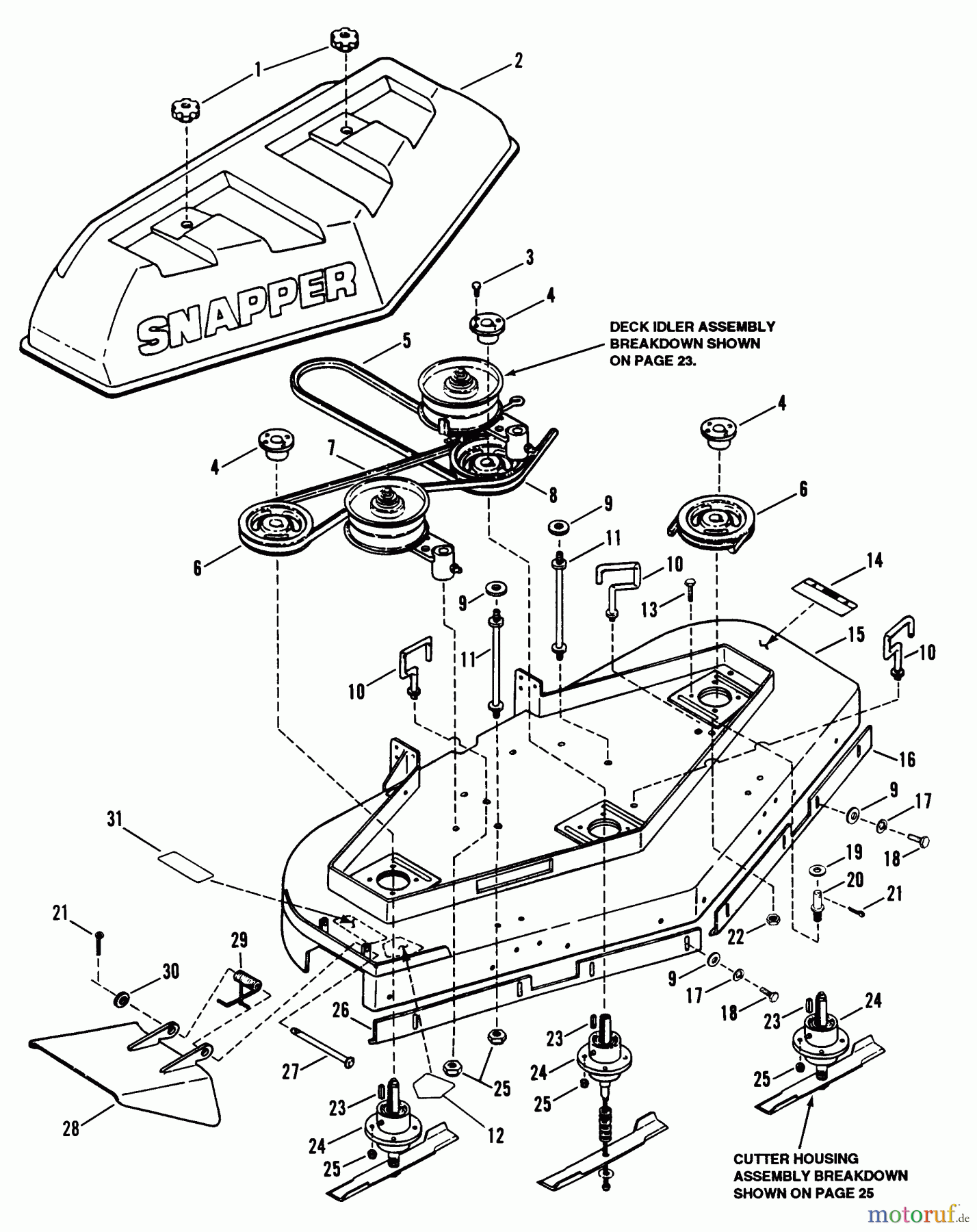

48" Mower Deck Assembly PMA7482 - Snapper 48" Pro Deck Attachment, Series 2

Snapper Mähdecks PMA7482 - Snapper 48
PosizioneArticolo numeroDescrizione
1 BS703065WINGKNOB, 5/16-18
2 BS7017874YP(C) HOOD, 748 DECK
3 BS7090643YPHHCS, 1/4C X7/8 GR5 Z
4 BS7023381YP(C) BUSHING, TAPERLOC
5 BS7029907YP(C) BELT, ENGINE TO 4
6 BS7017336YP(C) PULLEY, 5.75 BTD
7 BS7019205YP(C) BELT, B/B 48
8 BS7017337YP(C) PULLEY, 5.75 BTD
9 BS7091047YP(C) FW, .406X1.5X.12
10 BS7024285YPBELT GUIDE, 748
10 BS7033417YP(C) BELT GUIDE
11 BS7022890YP(C) STUD, HOOD MOUNT
12 BS7013010SMDECAL-DANGER, CUT FIN
13 BS703871KOPFSCHRAUBE,3/8-16X1.25
14 BS7073647YP(C) DECAL, CAUTION
15 BS7041571
16 BS7032957
17 BS703454LOCKWASHER, SPLIT 3/8
18 BS7091086YPSCHRAUBE, 3/8-16 X 3/4
19 BS703878WASHER, FLAT
20 BS7015464YPBOLZEN
20 BS7027899
21 BS7091313YPSPLINT
22 BS703458MUTTER, 3/8-24
23 BS7017033YP(C) KEY, SQUARE, 1/4X
24 BS7052457YP(C) CUTTER HOUSING AS
25 BS703117MUTTER
26 BS7032958
27 BS7024124YP(C) ROD, CHUTE PIVOT
28 BS7040659YP(C) WELD, DEFLECTOR ,
29 BS7027950YPSPRING, CHUTE
30 BS703350U-SCHEIBE, 5/16
31 BS7022522YP(C) DECAL, WARNING
