Echo SRM-3000 - String Trimmer, S/N:034001 - 037500 Carburetor Ricambi

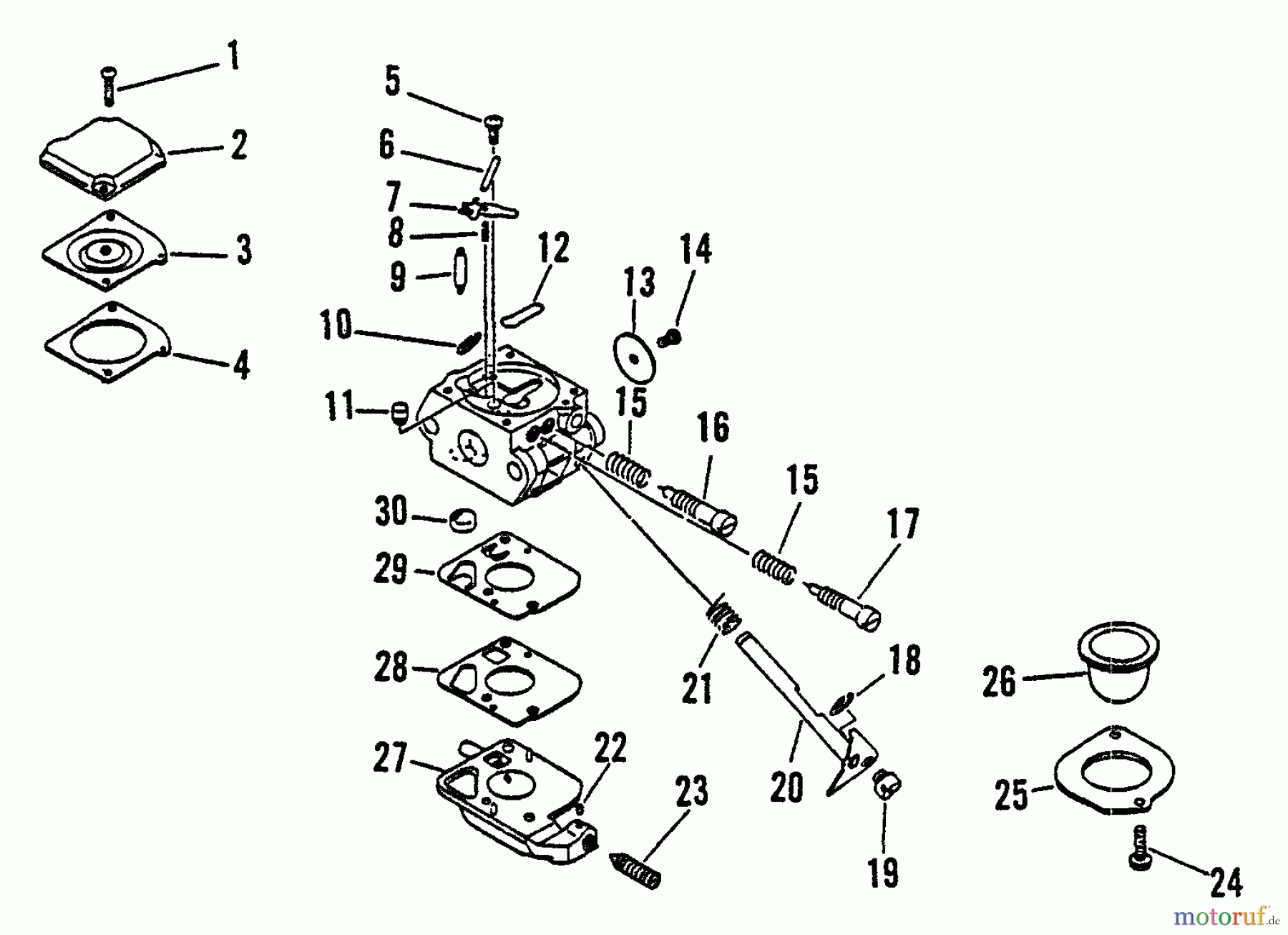

Carburetor SRM-3000 - Echo String Trimmer, S/N:034001 - 037500

Echo Trimmer, Faden / Bürste SRM-3000 - Echo String Trimmer, S/N:034001 - 037500 Carburetor
PosizioneArticolo numeroDescrizione
1612520051331
1 16-125344-13931Schraube SHR-170SI
2 16-125342-13210Deckel, Membrane
3 1616
4 1616
5 1616
6 1616
7 1616
8 1616
9 1616
10 16-125327-15130Clip
11 1616
12 1616
13 1699999999999
14 16-125314-13930Schraube
15 16-125319-42030Feder ES-2100, HC-2100, PB-
16 16-125320-51230Einstellnadel HCA-2400
17 16-125318-51330Einstellschraube SRM-3550
18 1616
19 1616
20 16-125317-42030Gasgestänge
21 16-125313-42030Feder ES-2000,HC-2100,PP-600,
22 16-125378-13930Hülse
23 16-125334-13930Einstellschraube
24 16-125310-11610Schraube
25 16-125363-11610Ring
26 16-125381-08660Pumpengummi SRM-2450/PB-2455/
27 16-125324-11610Deckel
28 1616
29 1616
30 16-125326-42030Filter SRM-2450, PB-2455, HC-
16-125303-51030Vergaserdichtsatz, Gummi SRM-
16-125300-51330Vergaserrep-Satz HCA-2400
