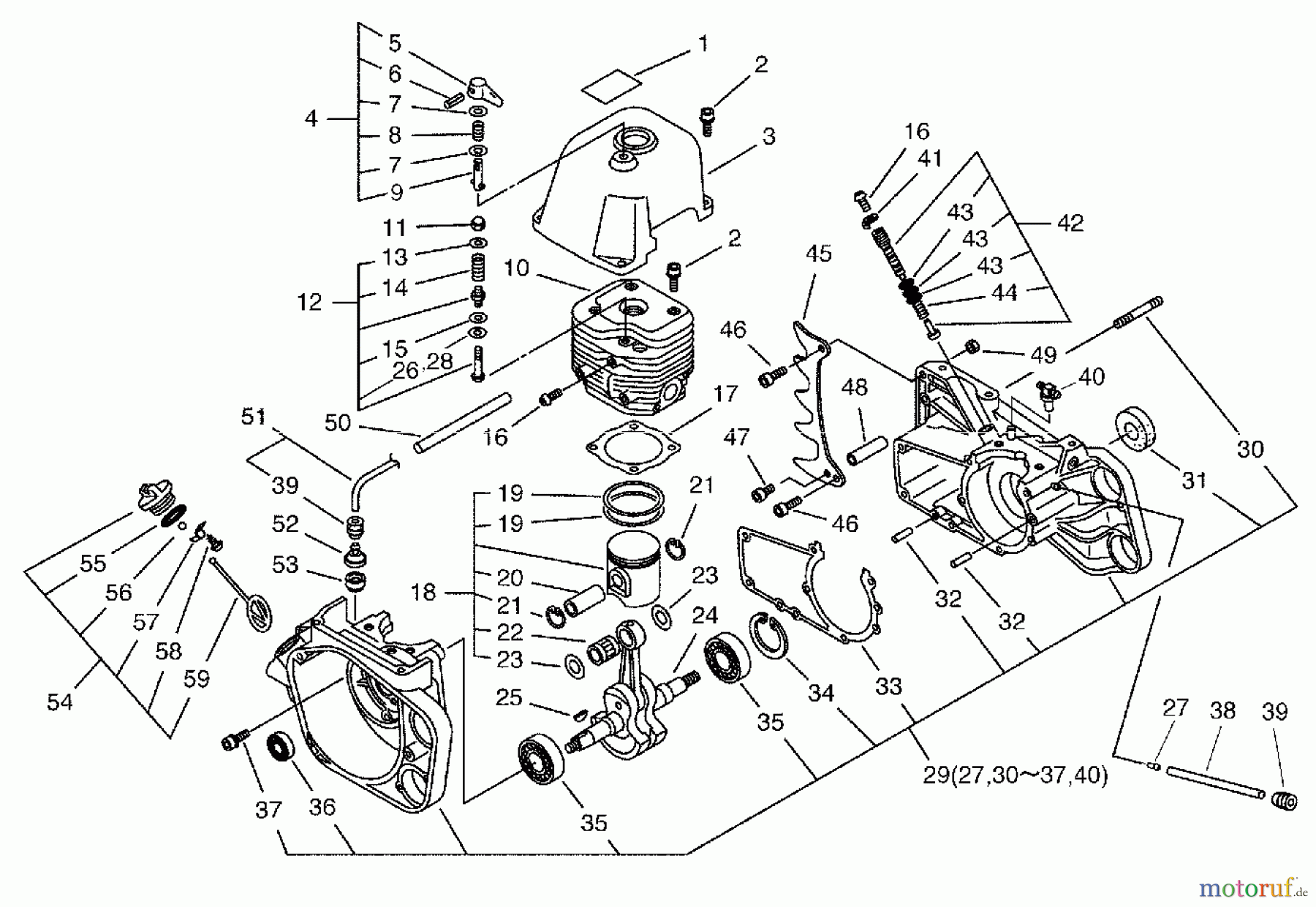

Echo CS-1201 - Chainsaw, Cylinder, Piston, Crankcase Ricambi

Cylinder, Piston, Crankcase CS-1201 - Echo Chainsaw,

Posizione	Articolo numero	Descrizione
1	16890149-16430
2	16-900162-06025	Schraube 6x25 (10)
3	16101514-16432
4	16179805-32930
5	16179815-16432
6	16900345-20014
7	16-900600-00005	Scheibe PB-500/452GS/DH2200ST
8	16179812-16431
9	16179806-16431
10	16101011-60730
11	16400912-00910
12	16101100-16430
13	16-101114-02831	Scheibe CS-1200
14	16-101113-02830	Feder
15	1699999999999
26	16101112-32930
28	16-101112-02830	Dichtung
16	16-900220-05010	Schraube
17	16101010-16431
18	16100000-60730
19	16100011-16431
20	16100013-16430
21	16100015-16430
22	16100012-16430
23	16100014-60730
24	16100100-60731
25	16-100142-12330	Polradkeil CS-3500/3501/SRM-
29	16100204-16430
27	16-130113-12330	Anschluss SRM-420ESU
30	16433011-16430
31	16100212-16431
32	16-100215-02830	Bolzen Produktion eingestellt
33	16100242-16430
34	16900702-00047
35	16900810-06204
36	16100213-16430
37	16-900162-06030	Schraube
40	16-437201-14730	Winkelstück
38	16-130110-16430	Impulsschlauch SRM-420ESU
41	16-437059-11133	Anschlagring
42	16437000-16430
43	16-437020-02830	O-Ring CS-330EVL/400EVL
44	16-437019-02830	Feder
45	16880210-16431
46	16-900105-06020	Schraube 6 x 20 PB-500
47	16-900162-05014	Schraube M 5x14
48	16433026-16430
49	16-145713-00630	Stopmutter
50	16-437412-16430	Tülle, Leitung E-Modul SRM-
51	16437205-16430
39	16-132115-12330	Dichtring CS-3600, CS-4500,
52	16-436205-14730	Ölfilter CS-4010/4601/6701/
53	16436212-16431
54	16436001-60730
55	16-900720-00025	O-Ring CS-3500/3700ES/4200ES/
56	16436024-02830
57	16-131050-19830	Halter
58	16-900246-03008	Schraube
59	16-131051-19830	Haltering CS-3500,3700,2600
