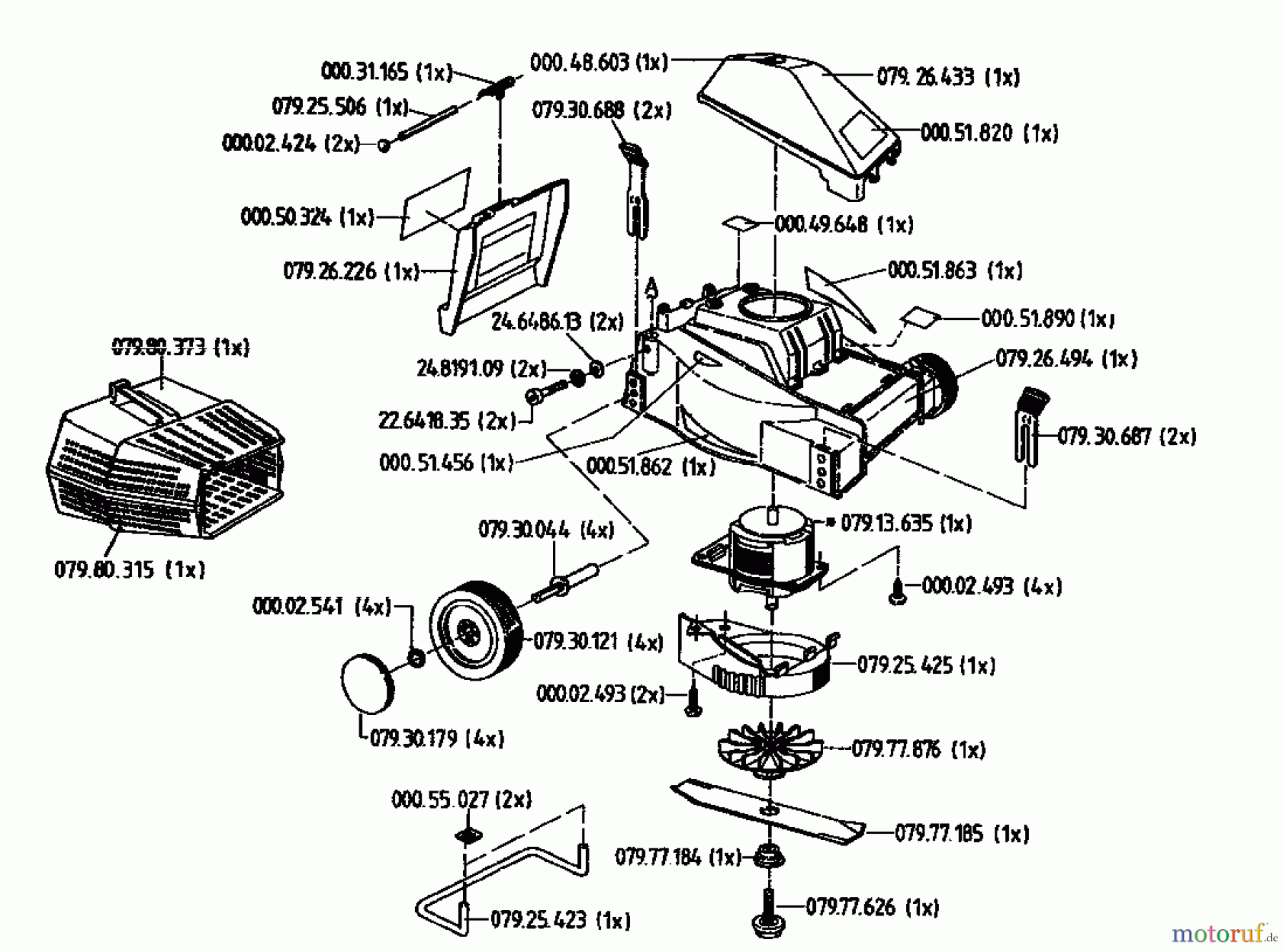

Floraself 932 E 02823.08 (1995) Basic machine Ricambi
Basic machine 02823.08 (1995)
| Posizione | Articolo numero | Descrizione | |
| 000. | 000.02.541 | CLAMP RIN | |
| 079. | 079.30.121 | Wheel | |
| 079. | 079.30.179 | RADKAPPE GELB RAL 1018 | |
| 079. | 079.80.315 | GRASSBOX UPR PART MELON YELLOW | |
| 079. | 079.25.425 | COVER | |
| 000. | 000.02.493 | SCREW | |
| 079. |  | 079.77.876 | BLADE HUB |
| 000. | 000.55.027 | Clamp | |
| 079. | 079.26.494 | RASENMAEHERDECK GRÜN RAL 6005 | |
| 079. | 079.30.687 | ADJUSTING LEVER FRONT | |
| 079. | 079.30.044 | Bolt | |
| 000. | 000.51.890 | ERSATZTYPENSCHILD 932 E | |
| 079. | 079.25.423 | Rail | |
| 079. | 079.77.184 | LOCK WASHER | |
| 079. | 079.77.185 | BLADE | |
| 079. |  | 079.77.626 | Screw |
| 079. | 079.13.635 | ELECTRIC MOTOR 900W 230V | |
| 000. | 000.50.324 | Decal | |
| 000. | 000.02.424 | Retaining cap | |
| 079. | 079.80.373 | KORBHAELFTE | |
| 079. | 079.26.226 | Rear flap | |
| 000. | 000.31.165 | SPRING-EXTENSION | |
| 079. | 079.25.506 | Rod | |
| 079. | 079.30.688 | ADJUSTING LEVER REAR | |
| 000. | 000.48.603 | Decal | |
| 079. | 079.26.433 | Protection plate | |
| 22.6 | 22.6418.35 | Screw | |
| 000. | 000.51.456 | LABEL | |
| 000. | 000.51.862 | KLEBESCHILD STREIFEN RECHTS | |
| 24.6 | 24.6486.13 | Washer | |
| 000. | 000.49.648 | LABEL | |
| 000. | 000.51.820 | KLEBESCHILD FLORASELF | |
| 000. | 000.51.863 | KLEBESCHILD STREIFEN LINKS | |
| 24.8 | 24.8191.09 | Spring washer | |
