Cub Cadet 945 SWE 31AV9J3W603 (2009) Handle Ricambi

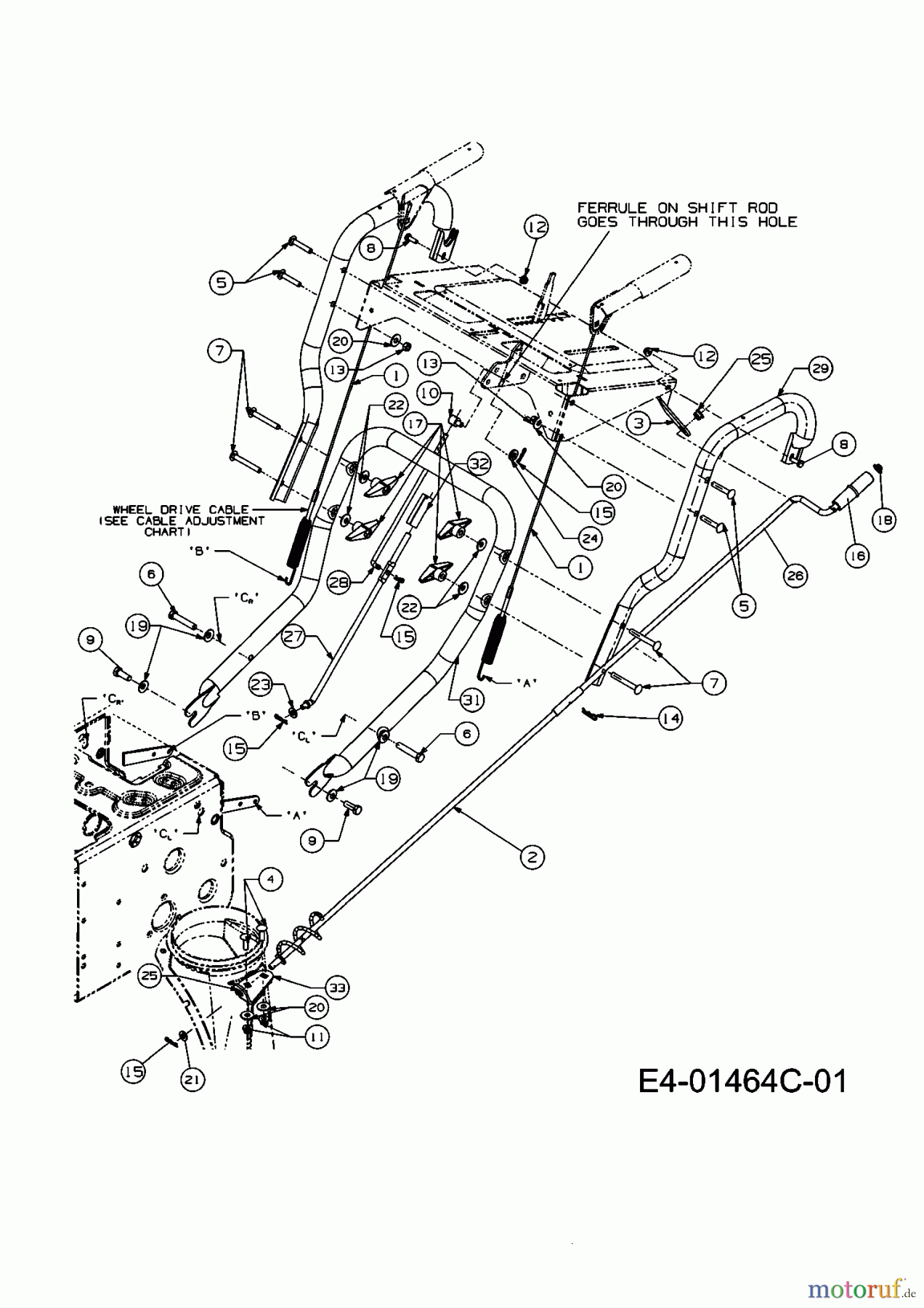

Handle 31AV9J3W603 (2009)

Cub Cadet Snow throwers 945 SWE 31AV9J3W603 (2009) Handle
PosizioneArticolo numeroDescrizione
1 646-0012CABLE ASM-AUGER/DRIVE
2 684-0053BCHUTE CRANK ASSY. PLATED
3 705-5266BRACKET: CHUTE CRANK
4 710-0276SCREW:CRG:SPL:5/16-18:1.00
5 710-0458BOLT:CRG:5/16-18:1.75:GR1
6 710-04682HHCS 3/8-16X2.00
7 710-0572BOLT:CRG:5/16-18:2.50:GR1
8 Cub Cadet HHCS:1/4-20:.75:GR5:STD710-3015HHCS:1/4-20:.75:GR5:STD
9 710-3118HHCS:3/8-16:1.00:GR5:LOCK
10 Cub Cadet FERRULE:5/16-18 x.312 DIA711-0677FERRULE:5/16-18 x.312 DIA
11 Cub Cadet FLANGED NUT 5/16-18:GRF:NYLON712-04063FLANGED NUT 5/16-18:GRF:NYLON
12 Cub Cadet NUT:FLGLK:1/4-20:GRF:NYLON712-04064NUT:FLGLK:1/4-20:GRF:NYLON
13 712-3009NUT:HEXLK:5/16-18:GRB:CTRLK
14 Cub Cadet PIN:COT:INT:.08 X 1.42714-0101PIN:COT:INT:.08 X 1.42
15 Cub Cadet PIN:COT:.072 DIA x 1.13 LG714-0104PIN:COT:.072 DIA x 1.13 LG
16 720-0201AKNOB:CRK:1.00 DIA x 3.2 CHUTE
17 720-0284WING NUT
18 726-0100CAP
19 Cub Cadet SPRING WASHER .401 x.870 x.063736-0105SPRING WASHER .401 x.870 x.063
20 736-0159WASH .349 ID X .879 OD X .063
21 Cub Cadet WASH-FLAT:.375x.738x.063736-0185WASH-FLAT:.375x.738x.063
22 Cub Cadet WASH:BLVL:.340 x .872 x .060736-0242WASH:BLVL:.340 x .872 x .060
23 736-0275WASH:FLAT:.344 x .688 x.065
24 Cub Cadet WASH:FL:.344 X.750 X.120736-3008WASH:FL:.344 X.750 X.120
25 Cub Cadet BRG:FLG:SNAP .385 ID741-0475BRG:FLG:SNAP .385 ID
26 747-0624CRANK, CHUTE
27 747-0983AROD-SHIFT-LOWER
28 747-0997UPPER SHIFT ROD
29 749-0989AHANDLE UPPER LEFT
30 749-0990AHANDLE UPPER RIGHT
31 749-0991Lower handle
32 750-0963SPACER
33 784-5123BRACKET-CHUTE CRANK
