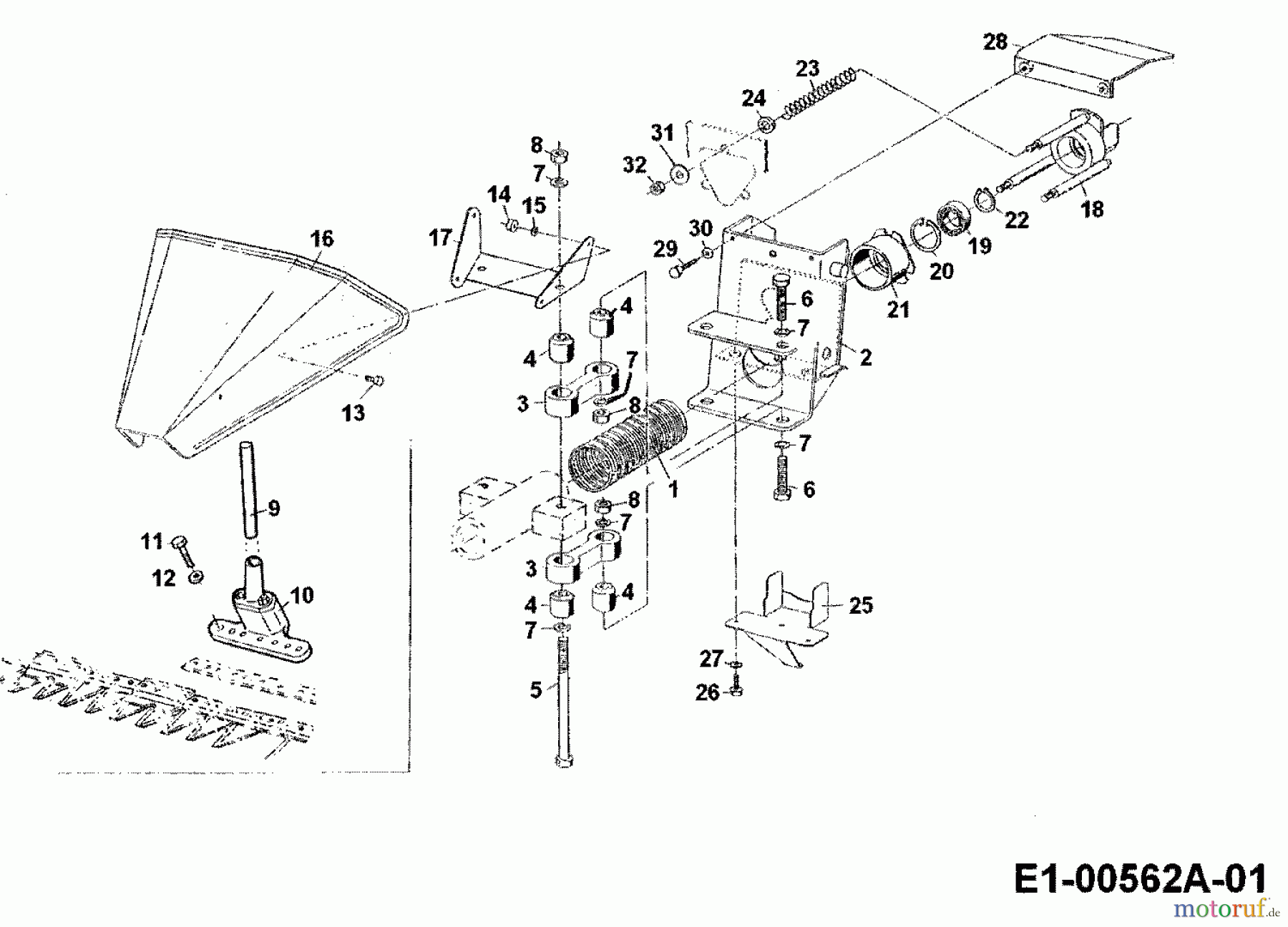

MTD Accessories Central mower drive MA 650 P for 550-750 00705.03 (1995) Basic machine Ricambi

Basic machine 00705.03 (1995)

MTD Accessories Accessories multi purpose two wheel tractor Central mower drive MA 650 P for 550-750 00705.03 (1995) Basic machine
PosizioneArticolo numeroDescrizione
1 000.14.181Hose
2 071.78.816Self-proppelled
3 075.77.203LEVER
4 000.37.473BUSHING
5 21.1444.29Screw
6 21.1444.16Screw
7 24.8195.60Spring washer
8 24.1421.25Nut
9 071.78.042DEFLECTOR BAR
10 071.78.823MITNEHMER VOLLST.
11 21.1451.70HEX CAP SCREW
12 24.8190.18Lockwasher
13 21.1441.69Screw
14 24.1426.18NYL STOP NUT M5 DIN 985-8
15 24.6486.18WASHER A8.4 DIN 9021
16 071.78.033Hood
17 071.78.032Hood support
18 071.78.813Holder
19 26.1107.07Ball bearing
20 28.3592.62Circlip
21 071.78.814Tube
22 28.3591.35Retaining ring
23 000.30.326spring
24 24.6487.22Washer
25 071.78.029Protection plate
26 21.1441.46SCREW HEX M5x12 DIN 933-8.8
27 24.8195.54Lock washer
28 071.78.817Protection plate
29 21.1441.46SCREW HEX M5x12 DIN 933-8.8
30 24.8195.54Lock washer
31 24.6486.18WASHER A8.4 DIN 9021
32 24.1426.18NYL STOP NUT M5 DIN 985-8
