Toro 70120 (12-32) - 12-32 Recycler Rider, 1995 (5900001-5999999) FRONT TOWER ASSEMBLY Ricambi

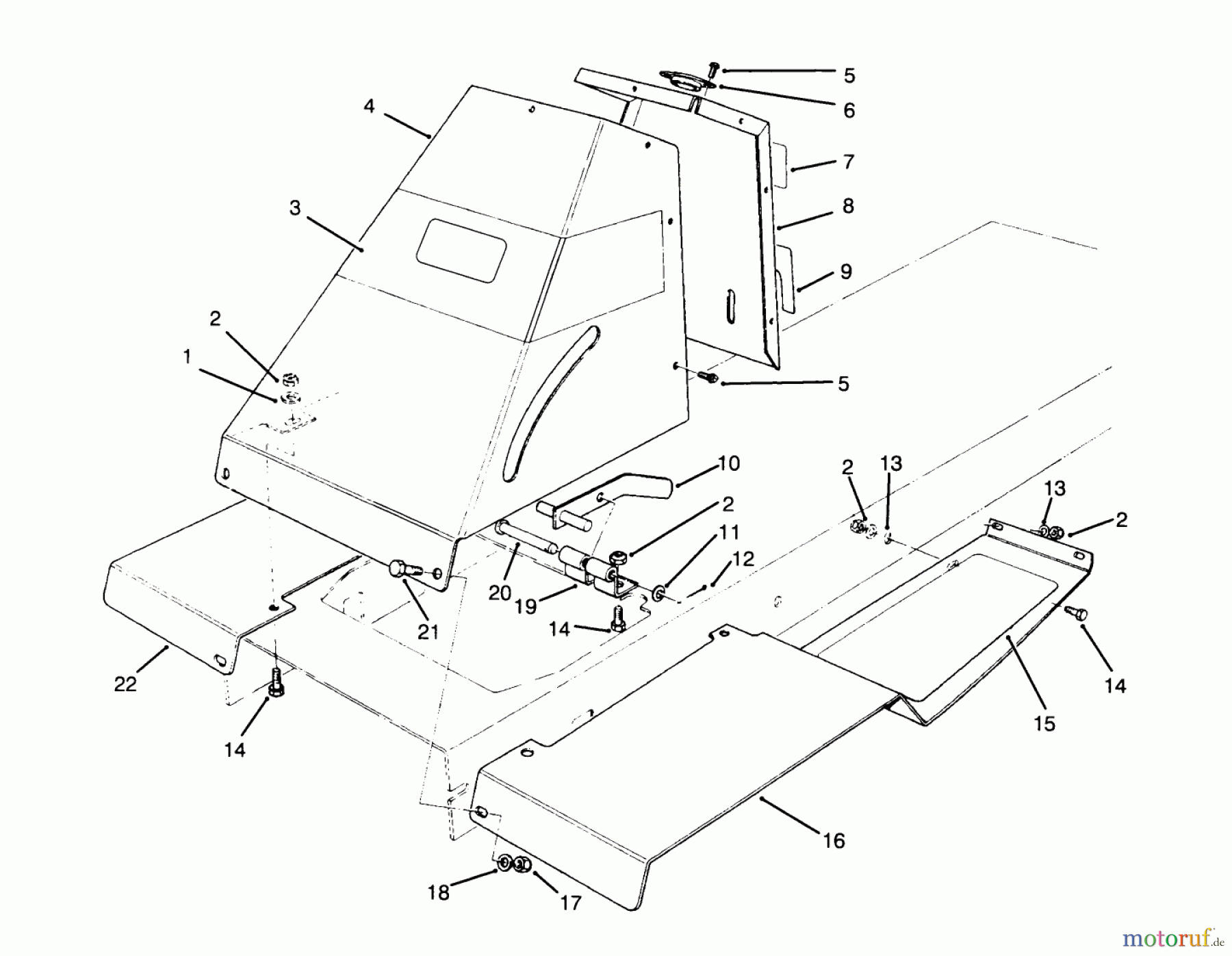

FRONT TOWER ASSEMBLY 70120 (12-32) - Toro 12-32 Recycler Rider, 1995 (5900001-5999999)

Toro Neu Mowers, Rear-Engine Rider 70120 (12-32) - Toro 12-32 Recycler Rider, 1995 (5900001-5999999) FRONT TOWER ASSEMBLY
PosizioneArticolo numeroDescrizione
1 TR3256-35WASHER-FLAT
2 Toro MutterTR3296-29Mutter
3 TR92-7987Klebeschild
4 TR56-7130-01Frontabdeckung
5 TR32104-76Schraube
6 TR56-7170GUIDE-STRG SHAFT
7 TR79-0370KLEBESCHILD
8 TR56-7140-03REAR TOWER
9 TR56-7810PARK BRAKE DECAL
10 TR47-1290PARKBREMSE
11 Toro WASHER-FLATTR3256-24WASHER-FLAT
12 TR3272-6Splint
13 TR3256-23Scheibe
14 TR322-5Schraube
15 TR92-7975FUSSAUFLAGE
TR92-7974TREAD-R.H. FOOT
16 TR47-0940-01REST-LH FOOT
17 Toro MutterTR3296-42Mutter
18 TR3256-22Scheibe
19 TR47-2060-03BRACKET-PARK BRAKE
20 TR283-52Splintbolzen
21 Toro SchraubeTR321-4Schraube
22 TR47-0930-01REST-RH FOOT
TR12-8829DISCONTINUED
TR12-8819DISCONTINUED
